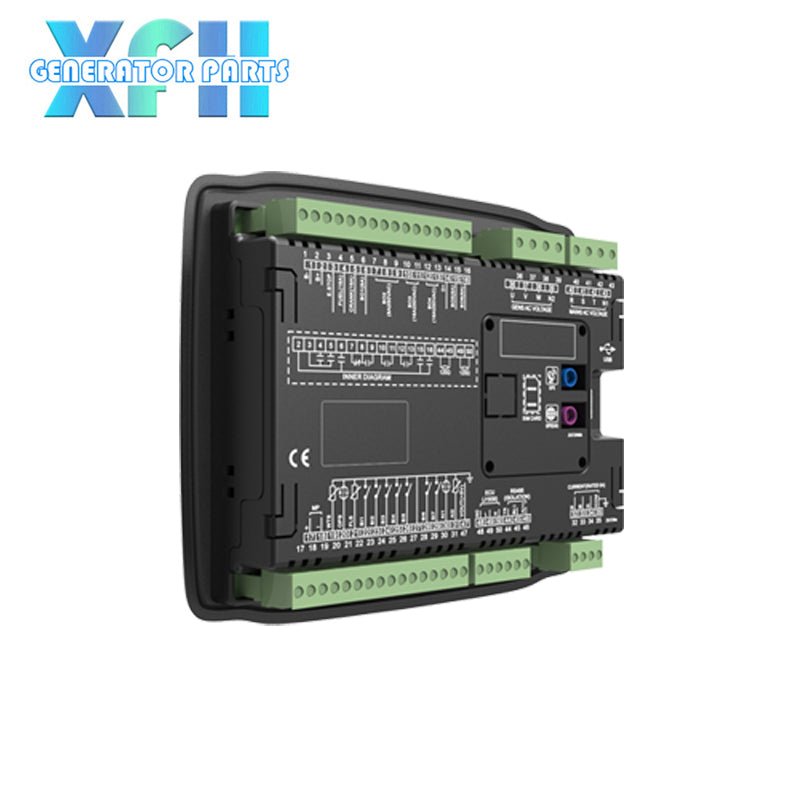

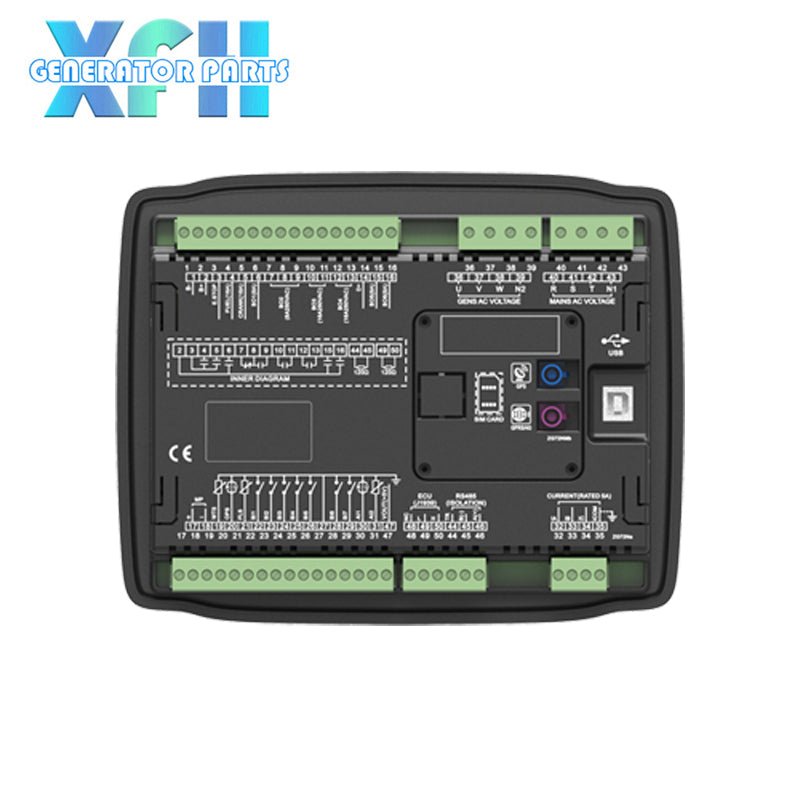

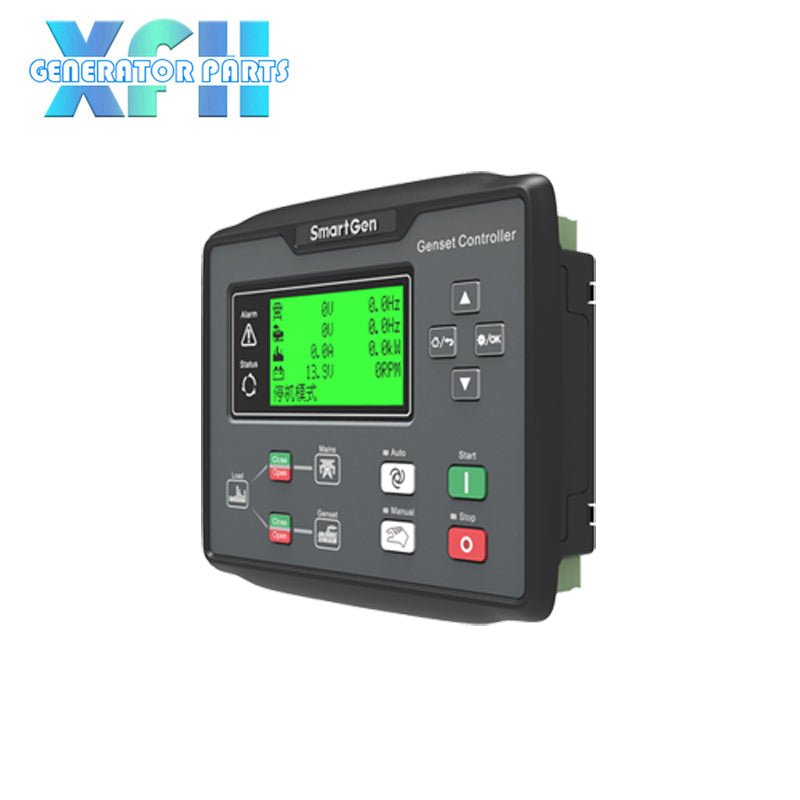

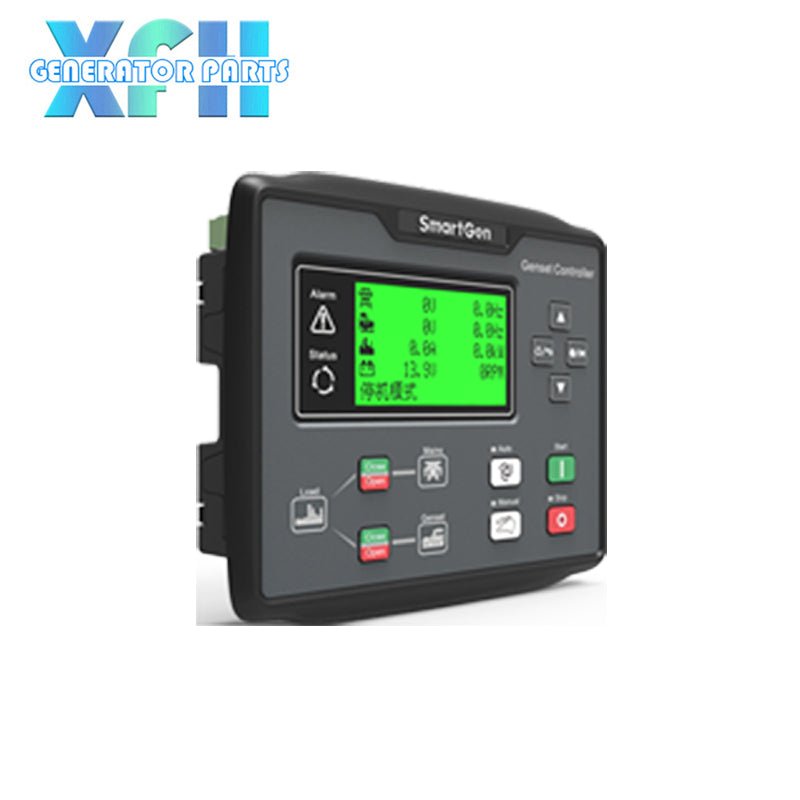

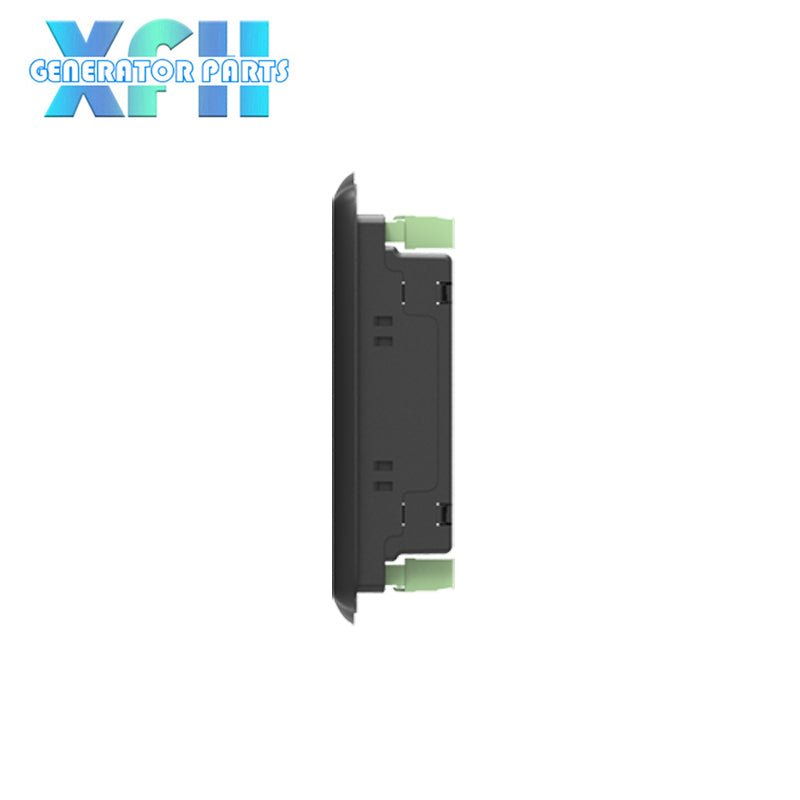

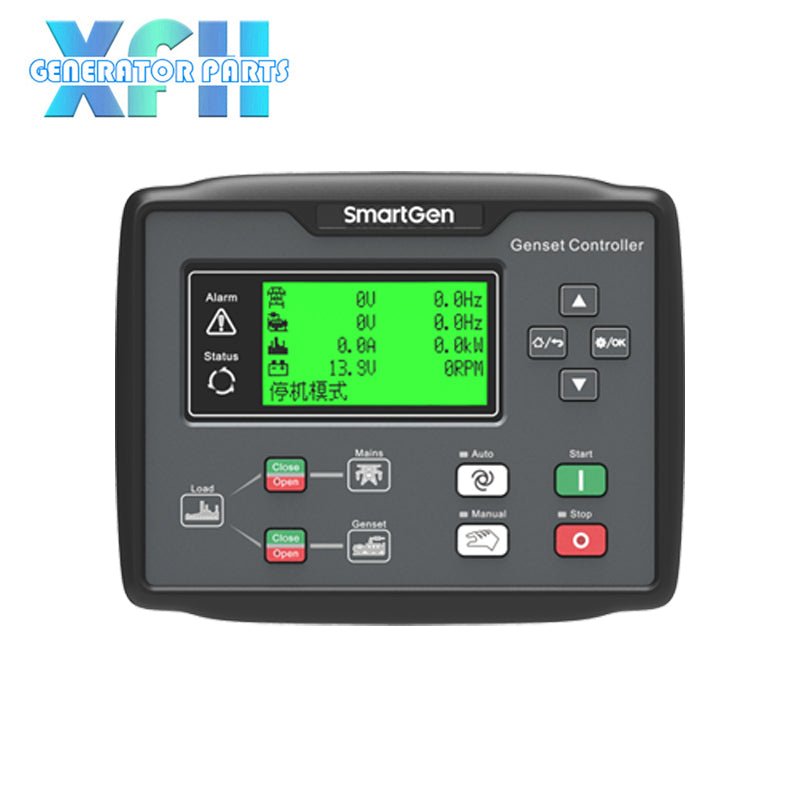

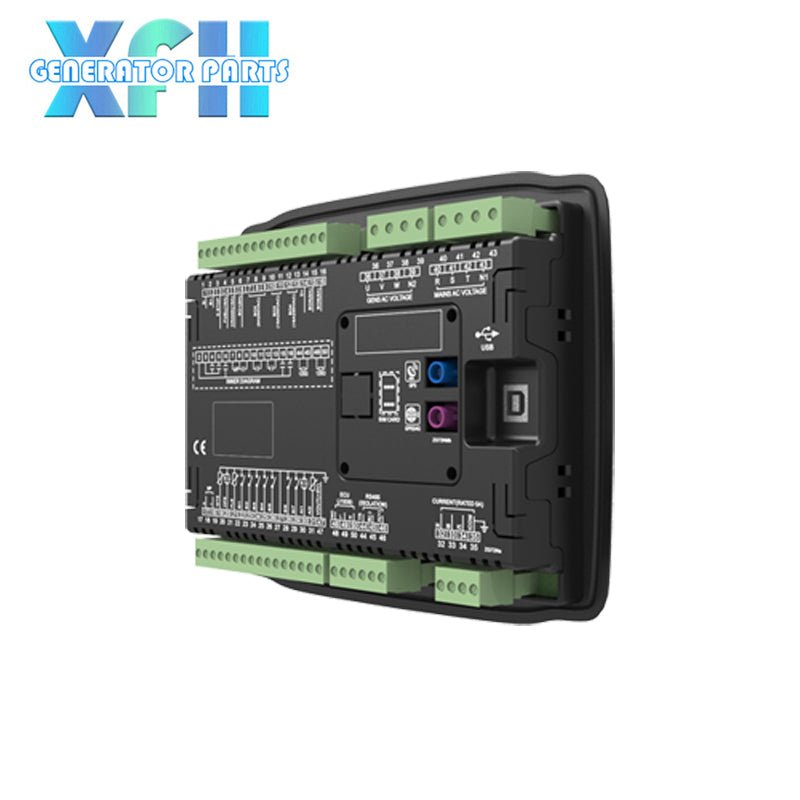

New Smartgen HGM7220S Single Unit Automation Genset Controller

New Smartgen HGM7220S Single Unit Automation Genset Controller

Test before shippment, 1 year warranty, pay safe with PayPal.

Regular price $380.00
Regular price Sale price $380.00
Sale Sold out
Shipping calculated at checkout.

HGM7220N/HGM7220S series genset controller is used for single unit automation control, which can realize functions of single unit self-start, AMF, synchronization changeover, and cloud monitoring. It integrates digitalization, intelligence, with network technology. It applies LCD graph display, optional language interface (Chinese, English and etc.) with reliable and simple operating features.

HGM7220N/HGM7220S series genset controller adopts 32-bit micro-processor technology, making it possible to precisely measure most parameters, fixed value adjustment, time setting and limit value adjusting etc. Almost parameters can be configured from front panel of controller, and all parameters can be adjusted through PC software via USB/RS485 port and monitored through PC software via RS485. It can be widely used in all types of genset control automation system with compact structure, simple connections and high reliability.

HGM7220N/HGM7220S series genset controller has network communication module putted inside, so that the genset can be connected with Internet. After the controller logins the cloud servicer, genset data information (including GPS positioning, altitude etc.) shall be uploaded to the corresponding cloud servicer at real time, so that users can monitor and check genset running status and event logs by terminal device such as mobile APP (IOS or Android system), PC etc. and at the same time controller parameters can be configured on cloud servicer. Network communication module has SMS message function.


Function Item Parameter
Display LCD(132*64)
Operation Panel Silicon Rubber
Language Chinese & English & Others
Relay Output 6
Analogue Input
Alternator Voltage (15~360)V(ph-N)
Alternator Frequency 50/60Hz
Monitor Interface RS485
Programmable Interface USB/RS485
RTC & Event Log
DC Supply DC(8-35)V
Case Dimensions(mm) 209*166*44
Panel Cutout(mm) 186*141
Operating Temp. (-25~+70)℃
