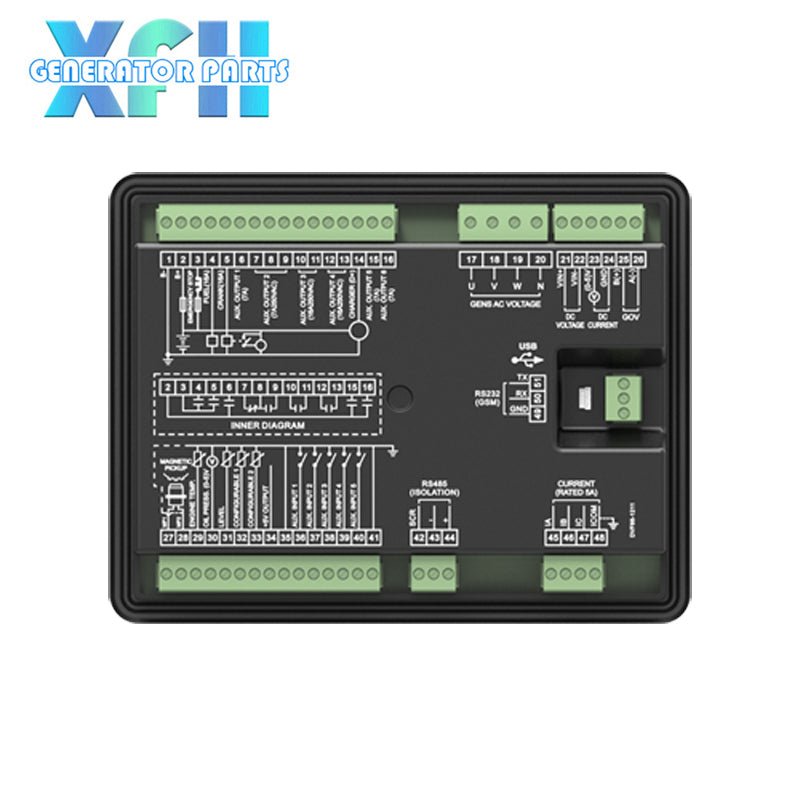

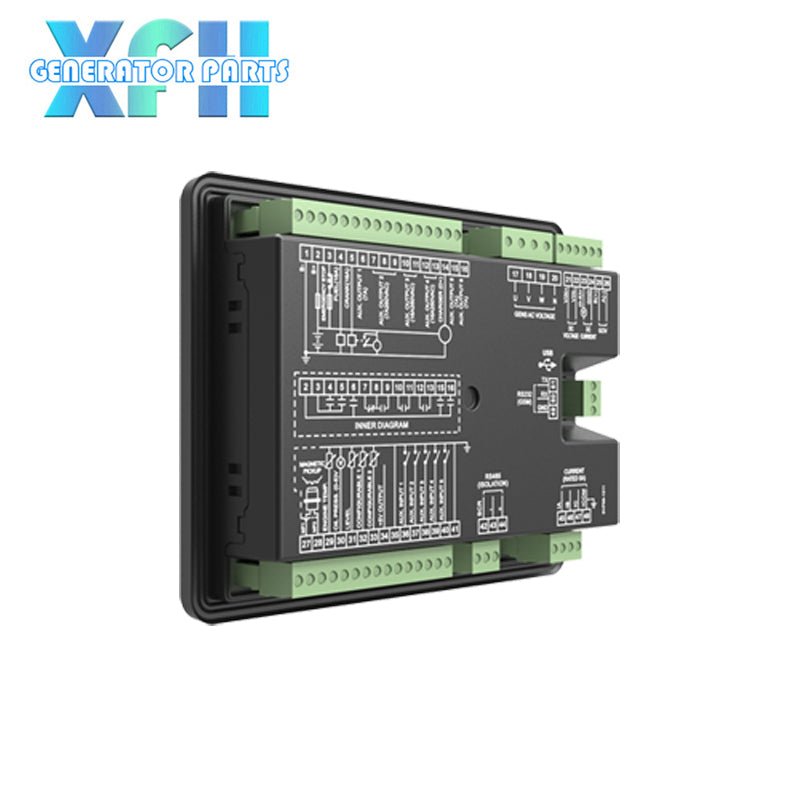

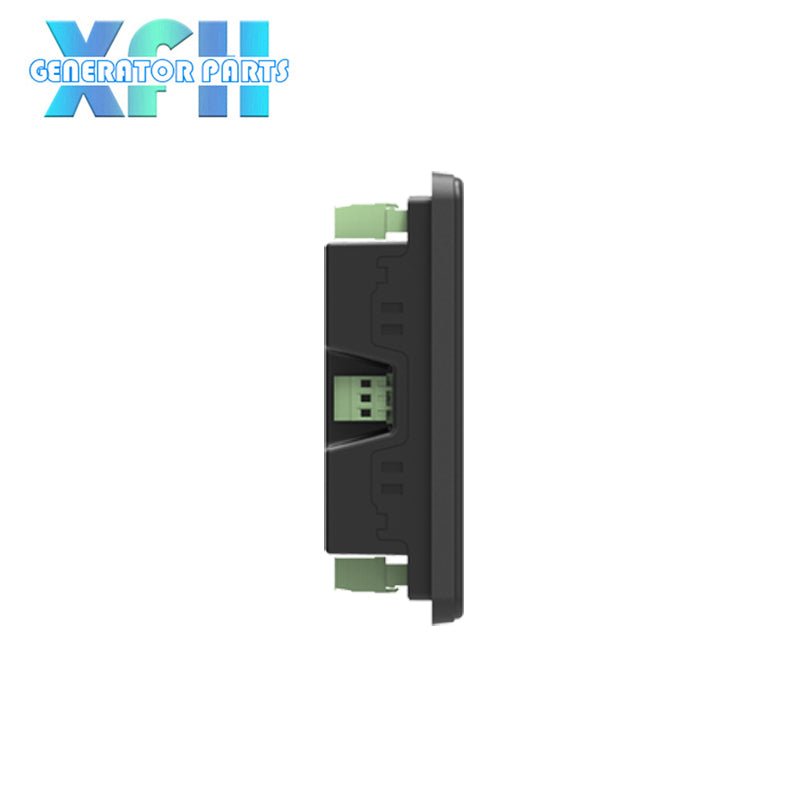

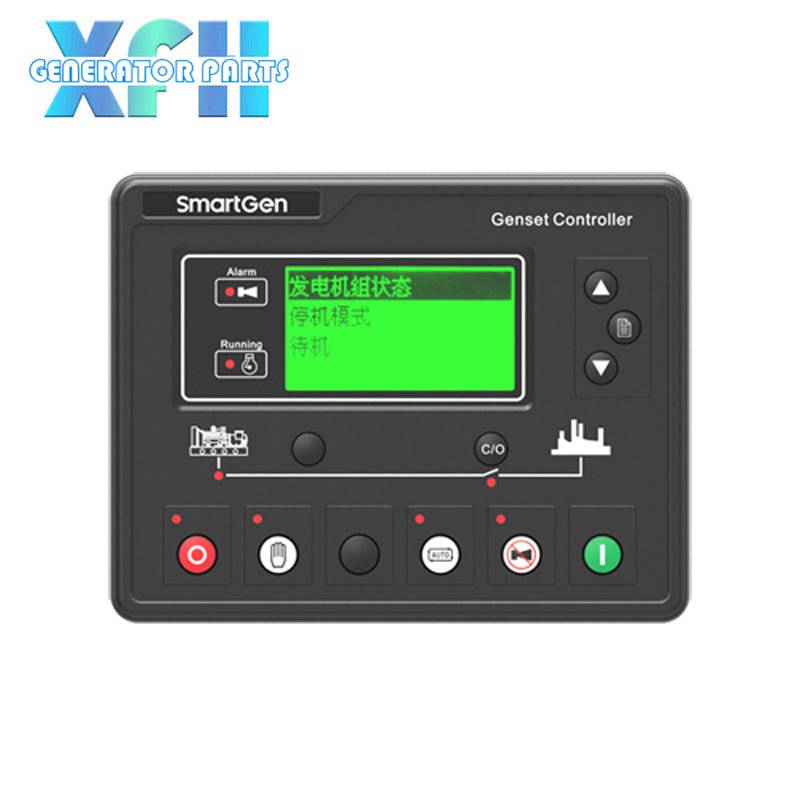

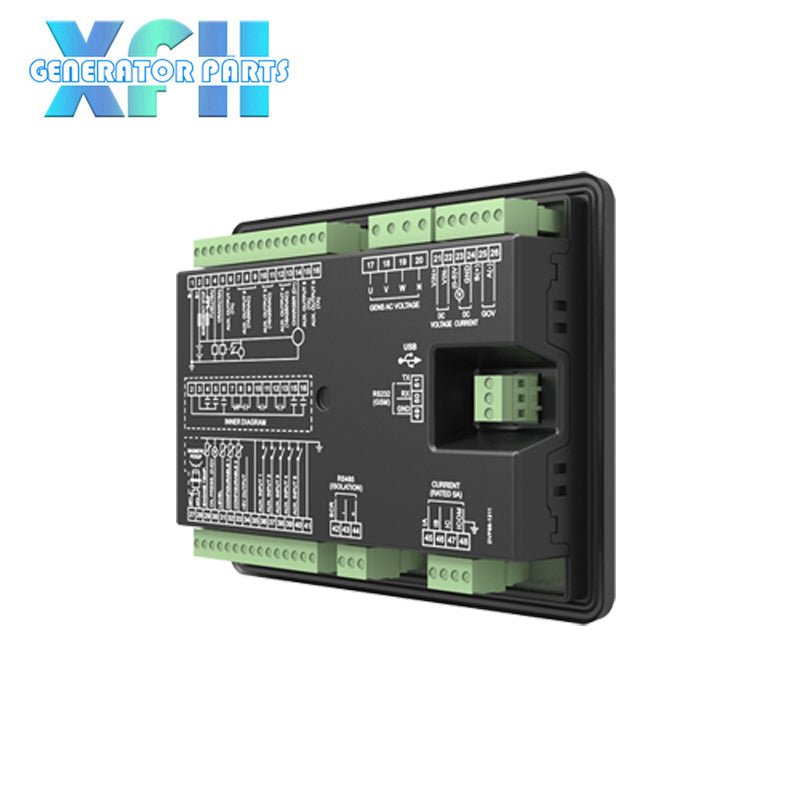

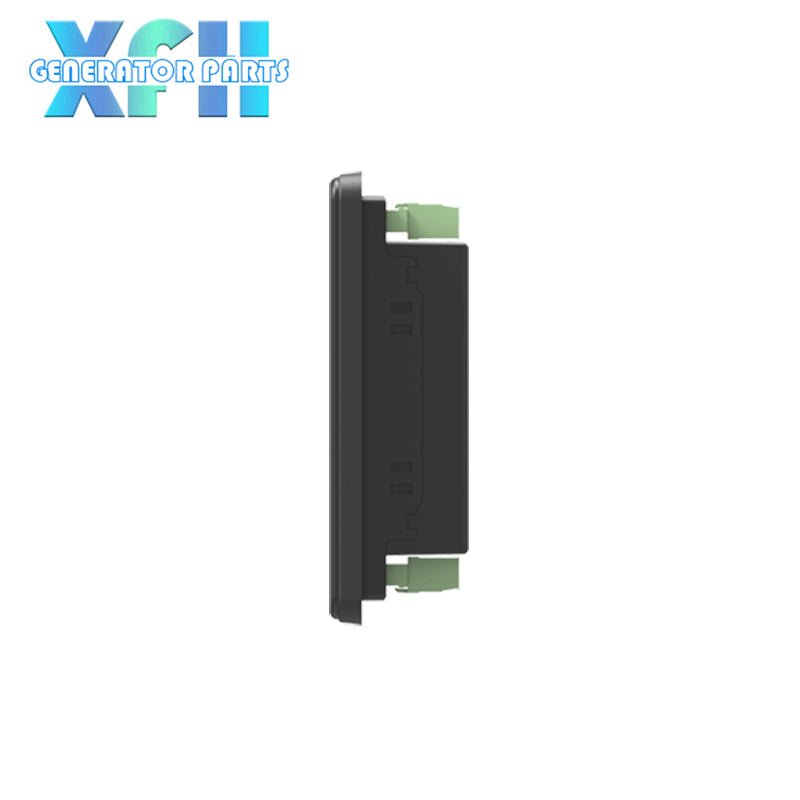

Smartgen Genset Generator Controller HGM7110VS

Smartgen Genset Generator Controller HGM7110VS

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Regular price $450.00
Regular price Sale price $450.00
Sale Sold out
Shipping calculated at checkout.

Original Smartgen HGM7110VS Genset Controller

Smartgen HGM7110VS genset controller is used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measure, alarm protection and “three remote” (remote control, remote measuring and remote communication). Controller adjusts engine speed according to genset present power so as to realize energy saving and pollution reduction. The controller adopts large liquid crystal display (LCD) and selectable Chinese, English or other languages interface with easy and reliable operation.

Working Voltage

DC8. 0V to 35. 0V, continuous power supply

Overall Consumption

<3W (Standby mode: ≤2W)

AC Input: 3 Phase 4 Wire 3 Phase 3 Wire Single Phase 2 Wire 2 Phase 3 Wire

AC15V ~ AC360V (ph-N) AC30V ~ AC620V (ph-ph) AC15V ~ AC360V (ph-N) AC15V ~ AC360V (ph-N)

Alternator Frequency

50Hz/60Hz

Speed Sensor Voltage

1. 0 V to 24 V (RMS)

Speed Sensor Frequency

Maximum 10,000 Hz

Start Relay Output

16A DC28V power supply output

Fuel Relay Output

16A DC28V power supply output

Configurable Relay Output 1

7A DC28V power supply output

Configurable Relay Output 2

7A AC250V passive output

Configurable Relay Output 3

16A AC250V passive output

Configurable Relay Output 4

16A AC250V passive output

Configurable Relay Output 5

7A DC28V power supply output

Configurable Relay Output 6

7A DC28V power supply output

Case Dimensions

197mm x 152mm x 47mm

Panel Cutout

186mm x 141mm

CT Secondary Current

Rated 5A

Working Conditions

Temperature: (-25~+70)°C Humidity: (20~93)%RH

Storage Conditions

Temperature:(-25~+70)°C

Protection Level

IP55 Gasket

Insulation Intensity

Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.

Weight

0.75kg
