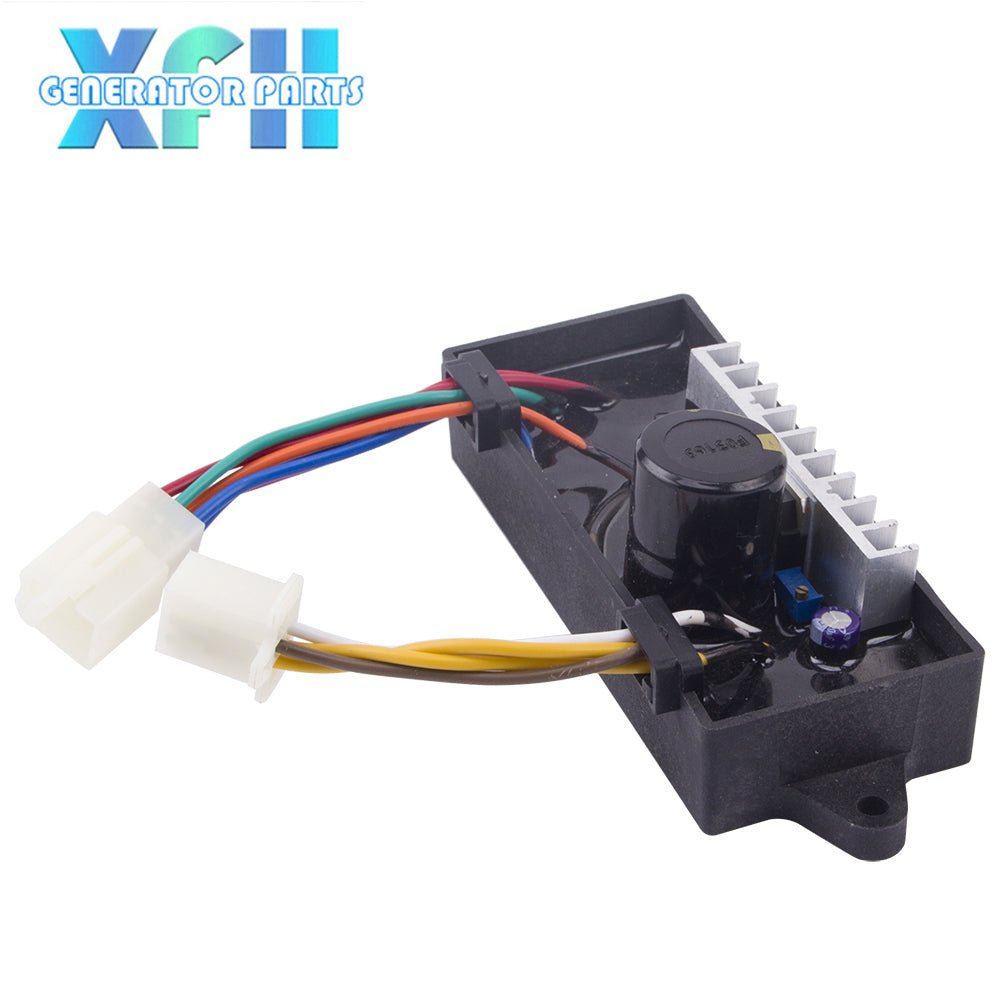

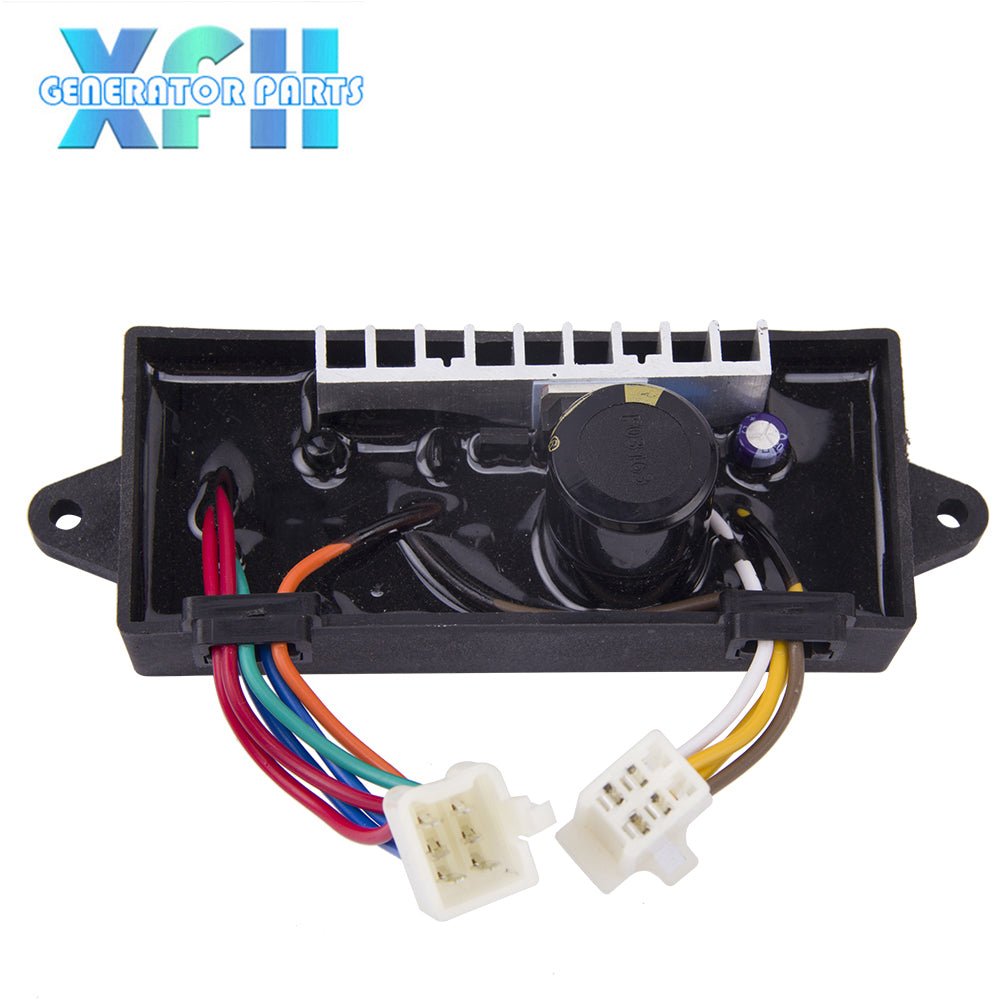

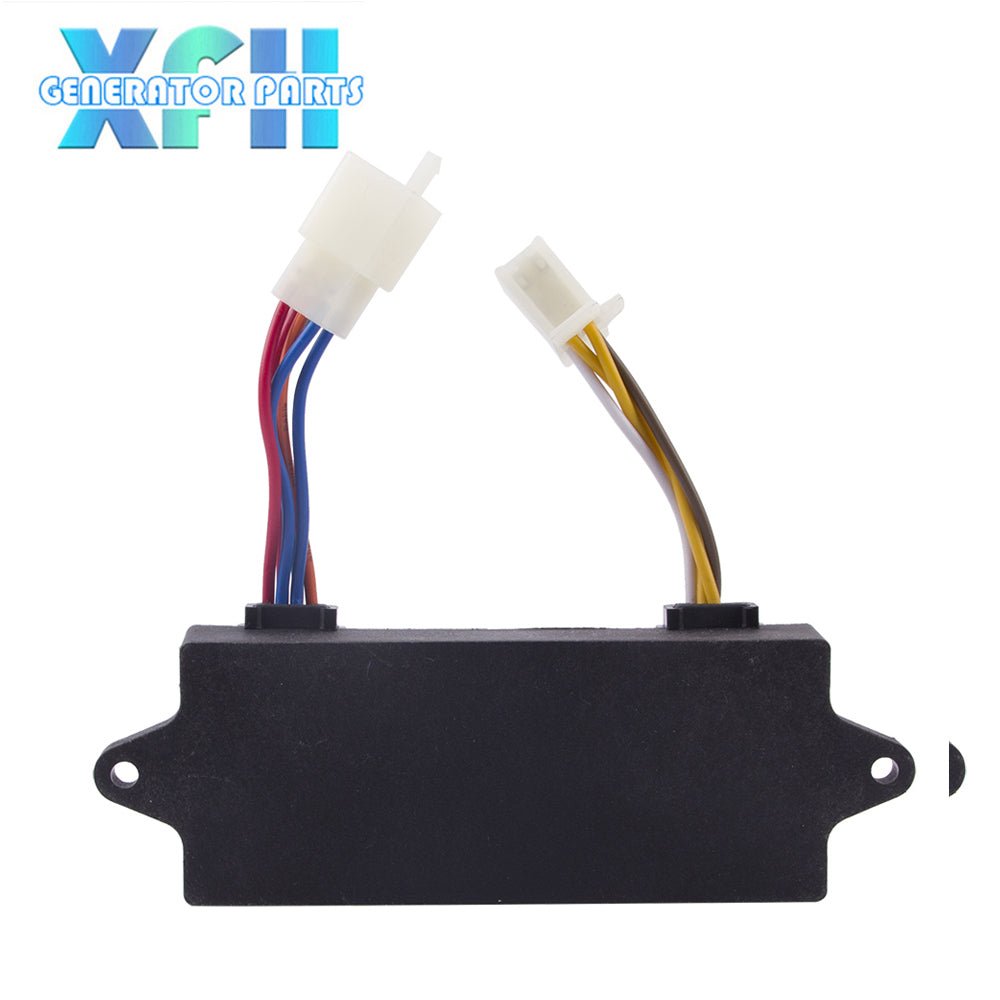

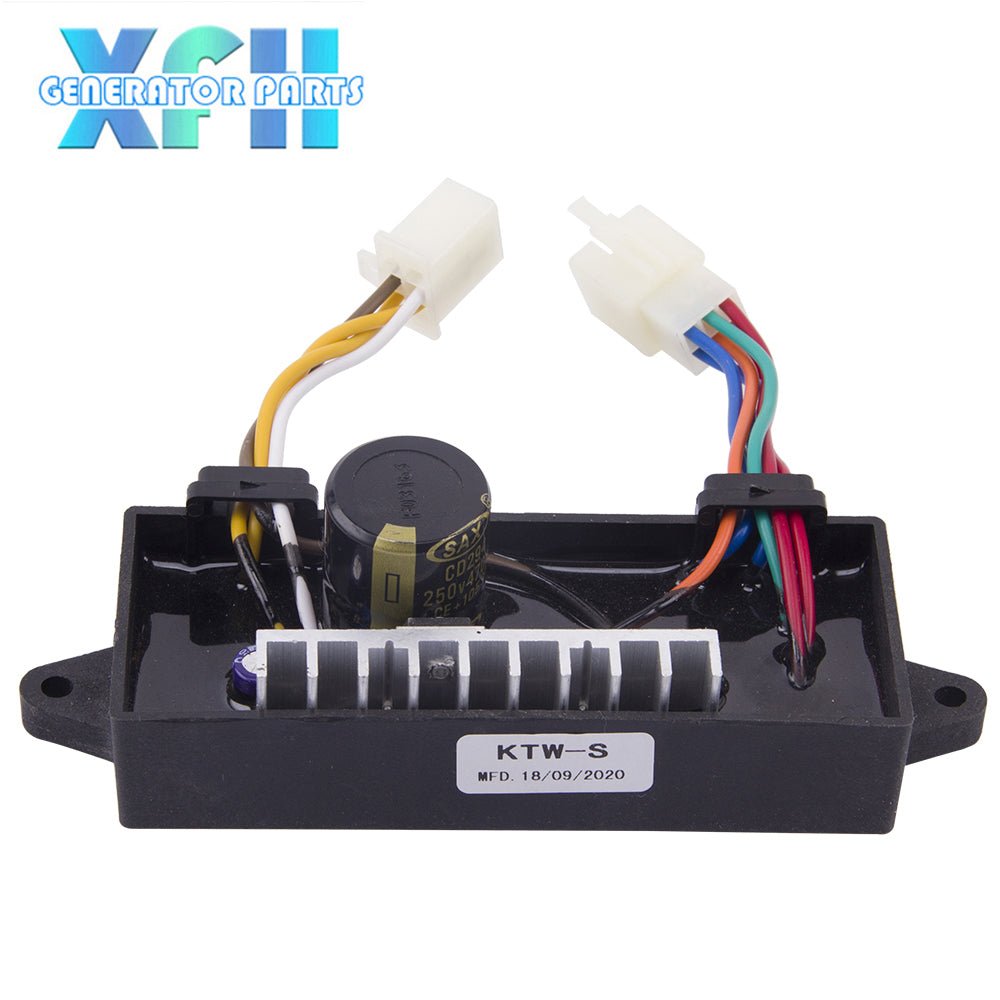

Single Phase 5KW AVR KTW-S Welder Diesel Generator Automatic Voltage Regulator Control Module Stabilizer KTW-S

Single Phase 5KW AVR KTW-S Welder Diesel Generator Automatic Voltage Regulator Control Module Stabilizer KTW-S

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Regular price $35.00
Regular price Sale price $35.00
Sale Sold out
Shipping calculated at checkout.

Single Phase 5KW AVR Welder Diesel Generator Automatic Voltage Regulator Control Module Stabilizer KTW-S

1. Matching parameters with generator
Phase number: single phase
Secondary winding voltage: ≤130V
Sampling voltage: 110V
Electric welding sampling voltage: 4V~12V
Starting voltage: ≥1.5V
Excitation current: ≤3.0A

2. AVR parameters
Output voltage: 230V
No-load voltage adjustment range: 185V~285V
Power generation: 2.5KW
Welding current: 60A~200A
Output voltage change rate: ≤3% (variable range can be adjusted according to generator parameters)
Voltage stability: ≤±1.0V
Temperature rise: ≤35℃

3. Installation
Connector:
Secondary winding, electric welding sampling, excitation: 7061-2.8-11, sampling, instrument: 7061-2.8-21
Thread color:
Secondary winding: blue, sampling: yellow, excitation: green positive, orange negative, welding sampling (potentiometer): red, switch: gray, white (generally not used)
clue:
Wire diameter: ∮0.75m㎡, lead length: 90mm
Mounting holes:
Aperture: ∮4.0mm, hole distance: 142mm
Dimensions:
Rectangle: Maximum size 153*54*50mm
