S6700H Diesel Generator Speed Governor Engine Speed Control Unit

S6700H Diesel Generator Speed Governor Engine Speed Control Unit

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Regular price $89.66
Regular price Sale price $89.66
Sale Sold out
Shipping calculated at checkout.

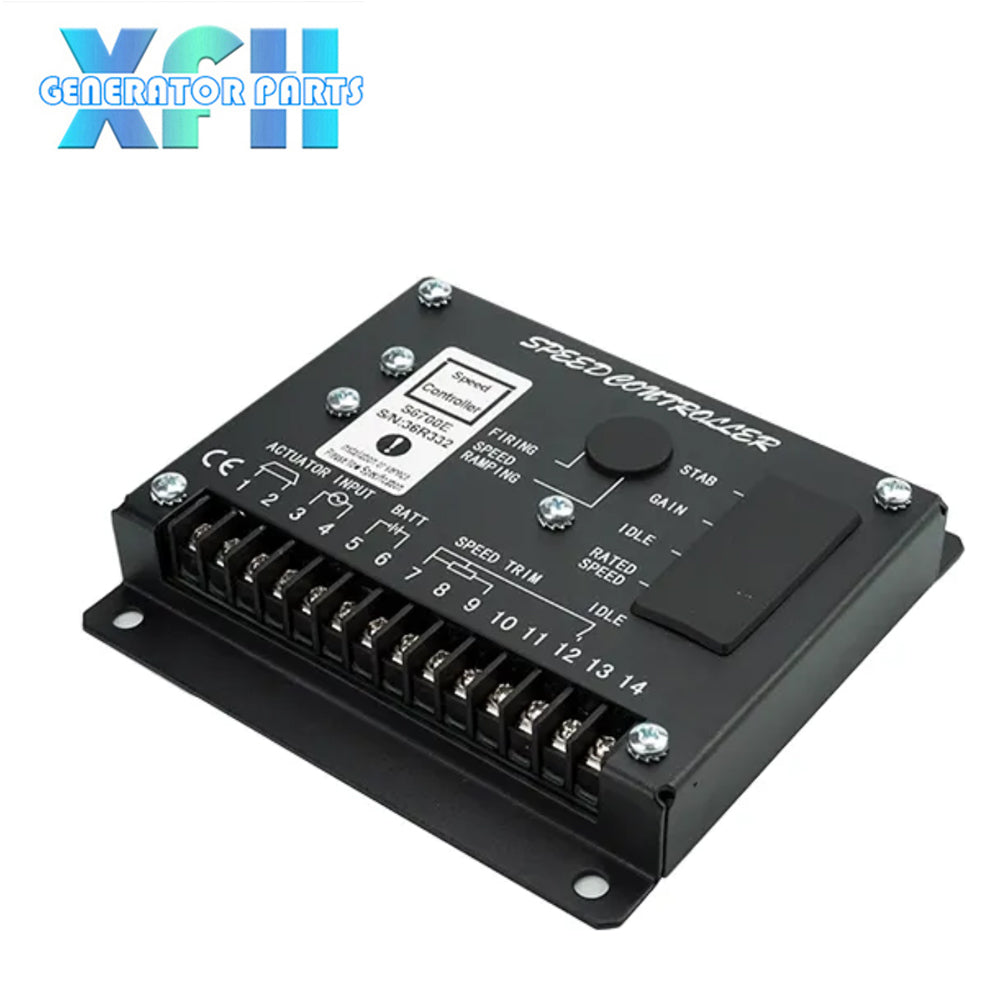

Speed control Unit S6700H is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed controller provides a series of protection once the power supply is reversely connected. Transient over voltage or actuator fault happens, or Speed input breaks.

· Power reverse connection protection

· Actuator default protection

· Speed signal Lose protection

· Over-speed & External high Level input Alam

S6700H

Environmental

Ambient operating temperature range

- 40 ~ 85 °C

Relative humidity

95%

Input Power

Supply

24VDC

Actuator current range

2.5-10A(continuous)

Speed sensor signal

1-20v

Characteristics

Speed fine adjustment range

± 100% r / min

Frequency fluctuation

± 0.25%

Steady speed droop

0~3% (variable)

Temperature drift

± 1% (maximum)
