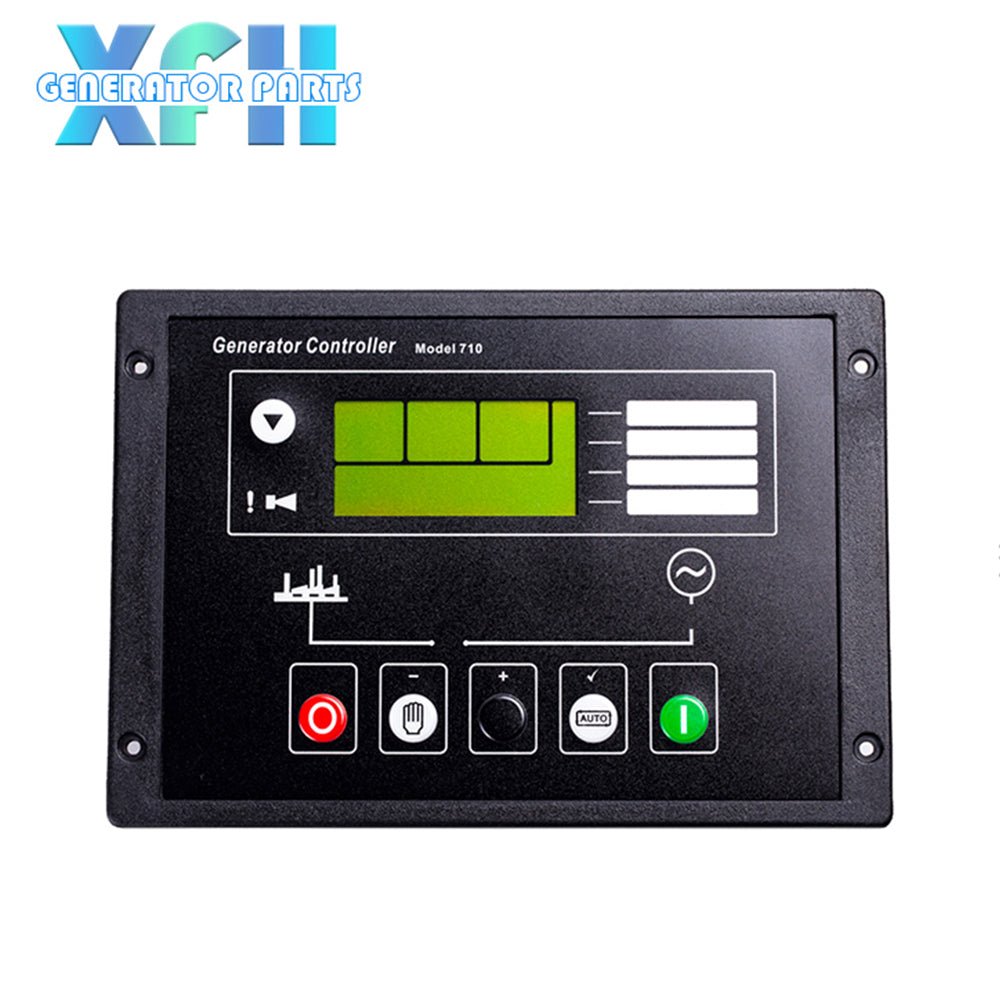

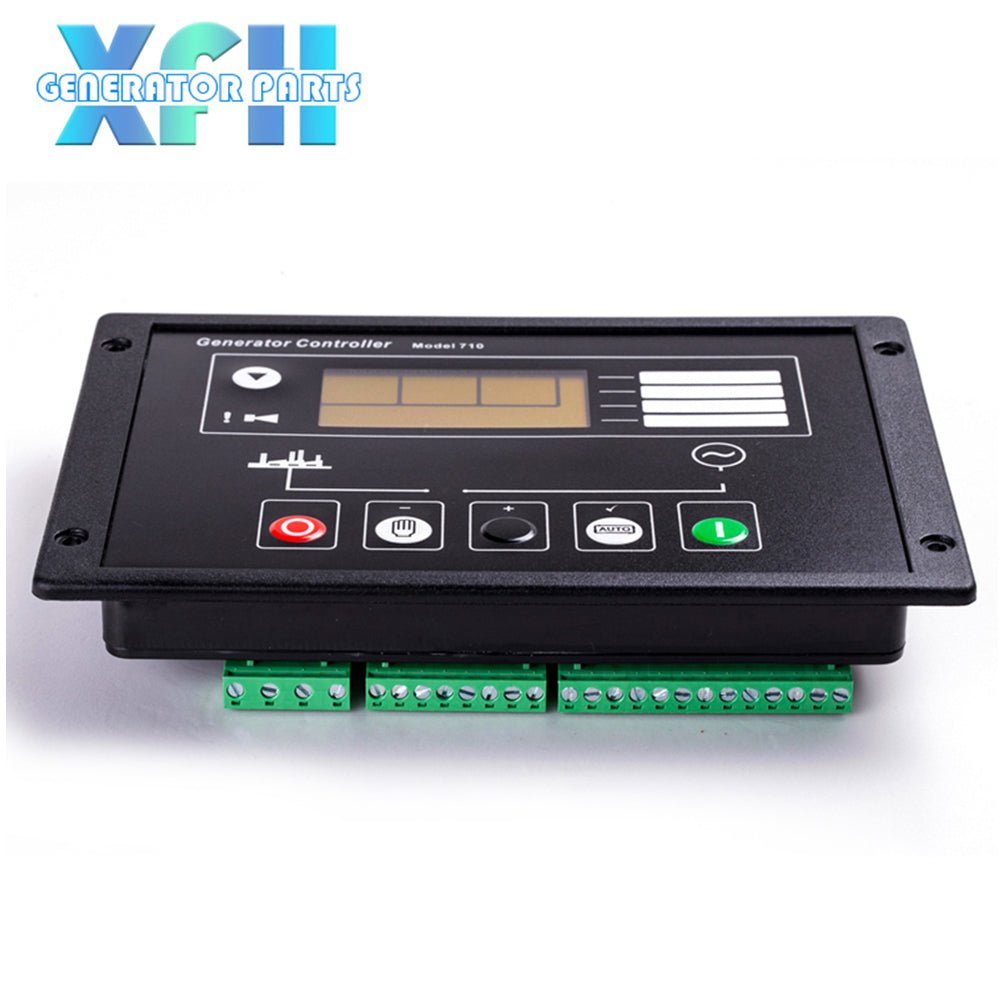

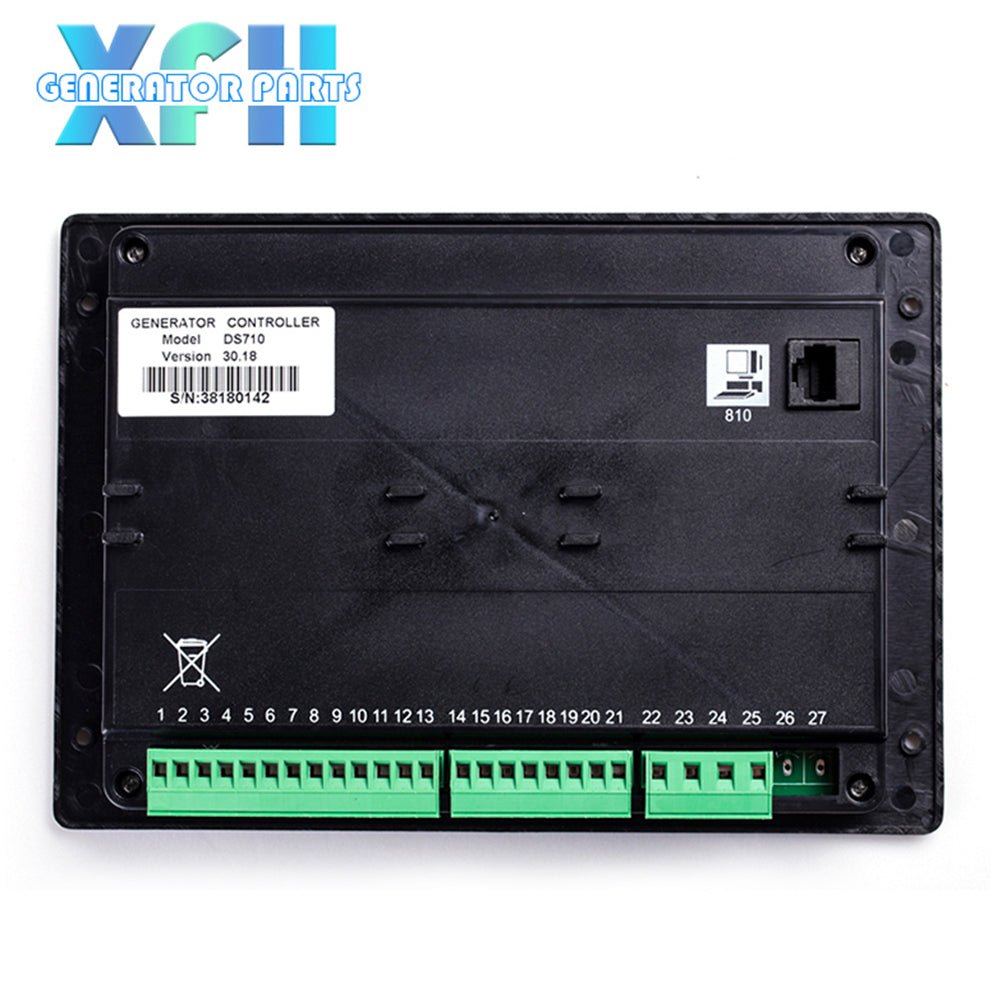

Replace DSE710 DSE720 Generator Controller Self-starting Control Module Diesel Generator Parts LCD Display Genset Monitors

Replace DSE710 DSE720 Generator Controller Self-starting Control Module Diesel Generator Parts LCD Display Genset Monitors

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Regular price $69.00
Regular price Sale price $69.00
Sale Sold out
Shipping calculated at checkout.

Product Introduction

The DSE710 is an Automatic Start Control Module suitable for a wide
variety of single diesel or gas gen-set applications.
Monitoring an advanced list of engine parameters, the DSE710 will automatically shut down the engine, or indicate a warning, on detection of a fault condition, indicating the fault on the module’s
front panel LCD display or LED.The module can be easily configured
using the DSE810 interface and PC.Front panel editing is also available.
The module can be controlled from a PC that is located up to a maximum distance of 100 meters away.
The DSE720 is an Automatic Mains Failure Control Module incorporating all the features of the DSE710 plus the ability to monitor the mains (utility) supply, automatically controlling the switch-over to
generator when the mains (utility) power fails.

Key Features

• PC/Front panel configuration
• Digital and analogue inputs
• Digital outputs
• Automatic mains (utility) supply
monitoring (DSE720 only)
• Automatic shutdown or warning when fault conditions are detected
• Automatic/Manual/Remote start
• Engine pre-heat
• Engine monitoring and protection features
• Protected Solid State (PSS)outputs
• Tamper-proof engine hours counter
• LED indicators
• Configurable timers
• Configurable outputs
• Configurable inputs
• Back-lit character/icon LCD display

Specification

Power Supply:8 to 35 Vdc Continuous

Cranking Dropouts:Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries.

Max Operating Current: 180mA at 12V, 190mA at 24V ; Standby 145mA at 12V. 150mA at 24V

Alternator Input Range:35V(L-N) to 277V(L-N) AC (+20%) 50Hz - 60Hz (min 15V AC)

Auxiliary Output:Solid state 2.4A DC at supply voltage.

Fuel/Start Output:Solid state 3.4A DC at supply voltage

Generator C.T.:5A secondary 0.5VA

Operating Temperature Range:-30 to +70°C
