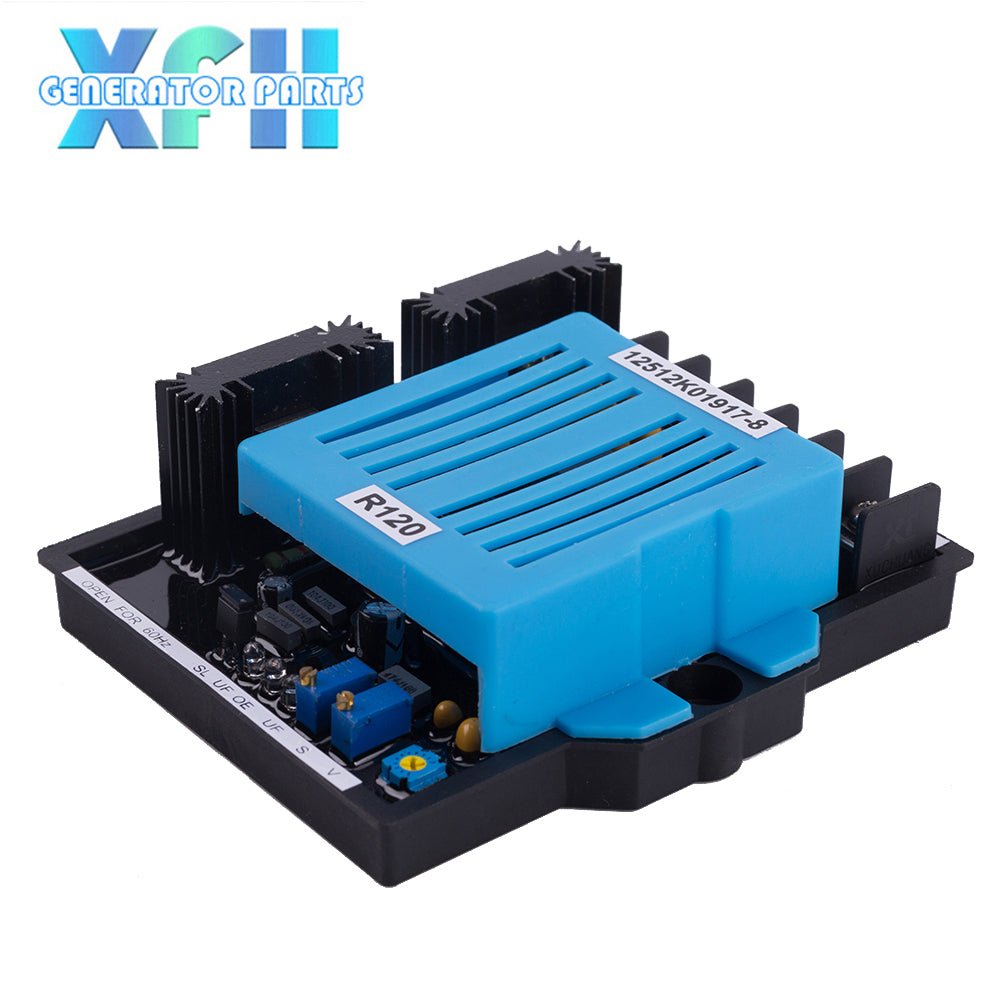

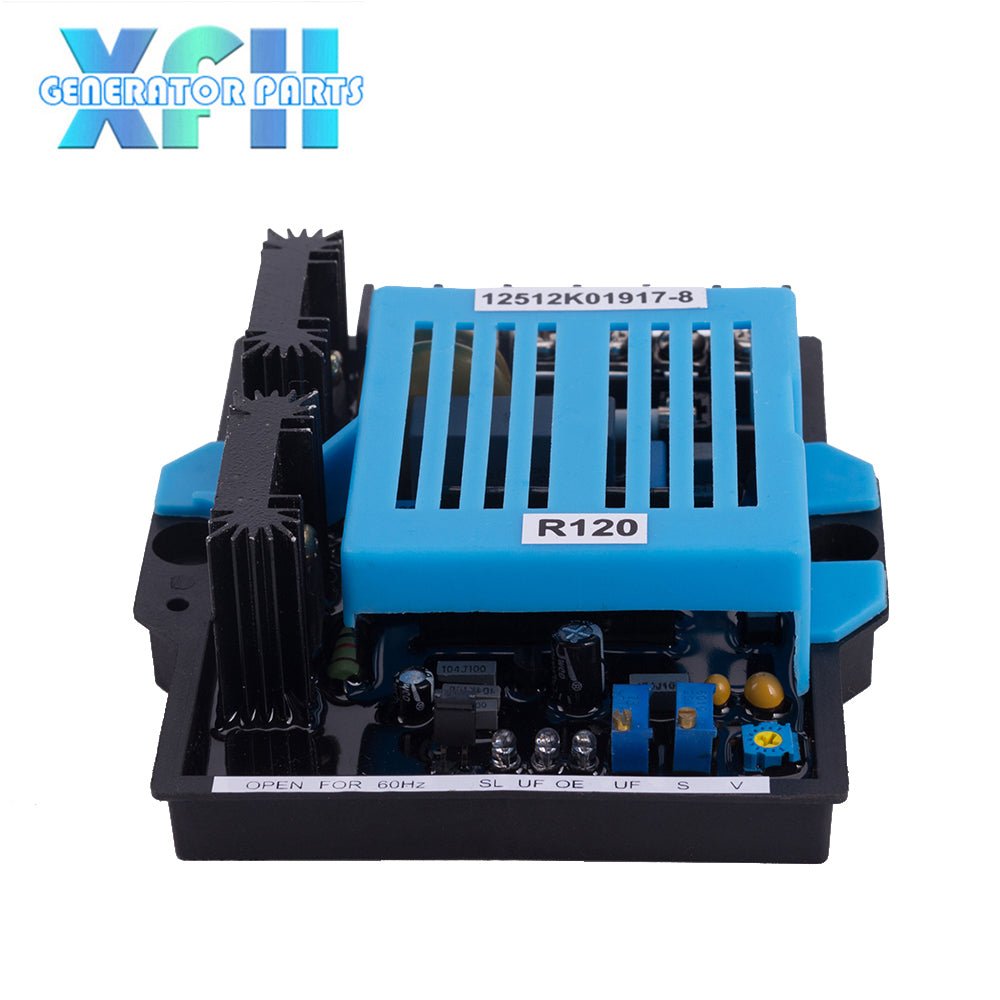

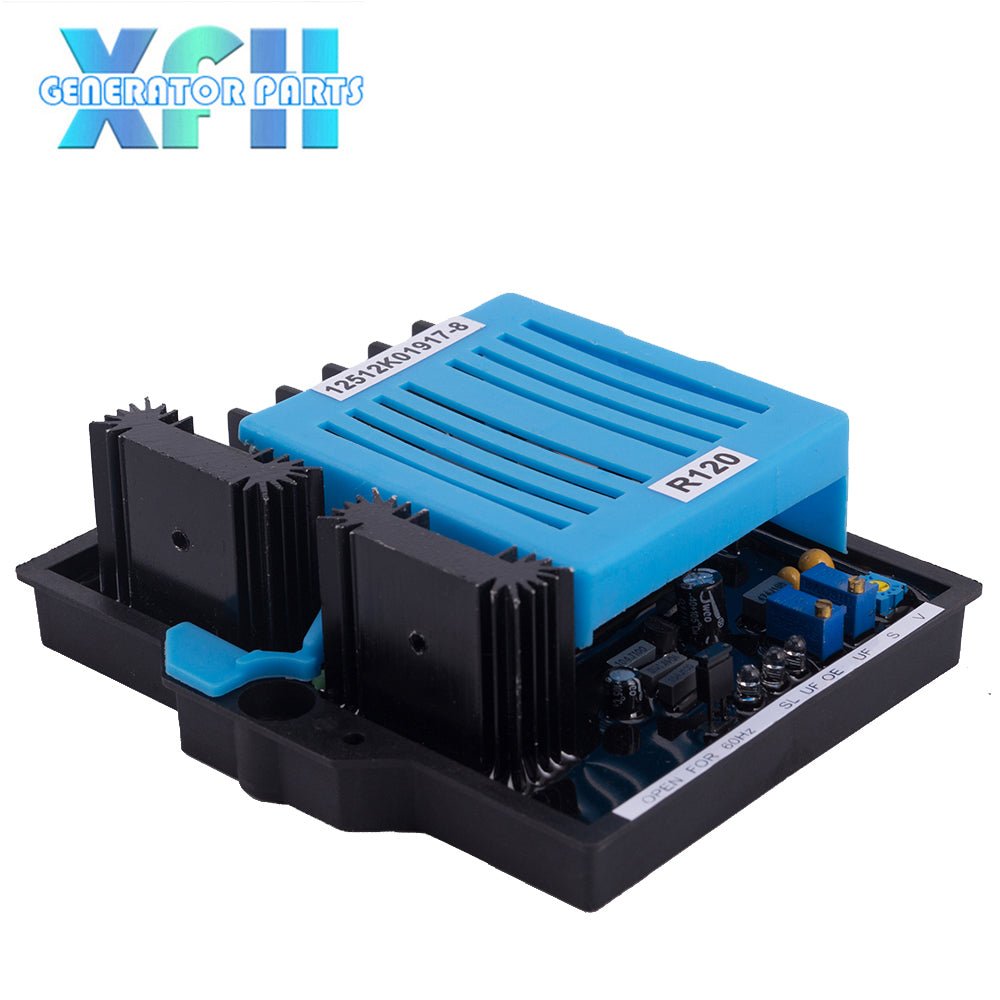

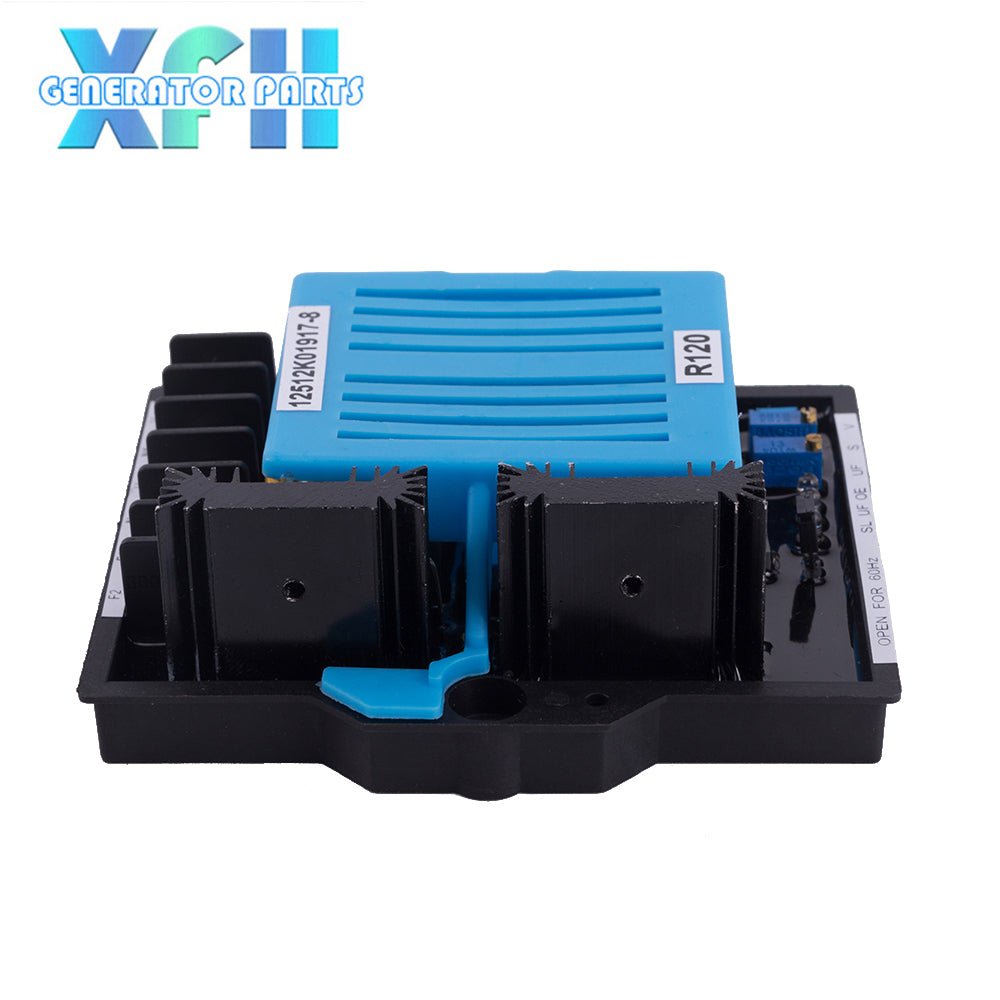

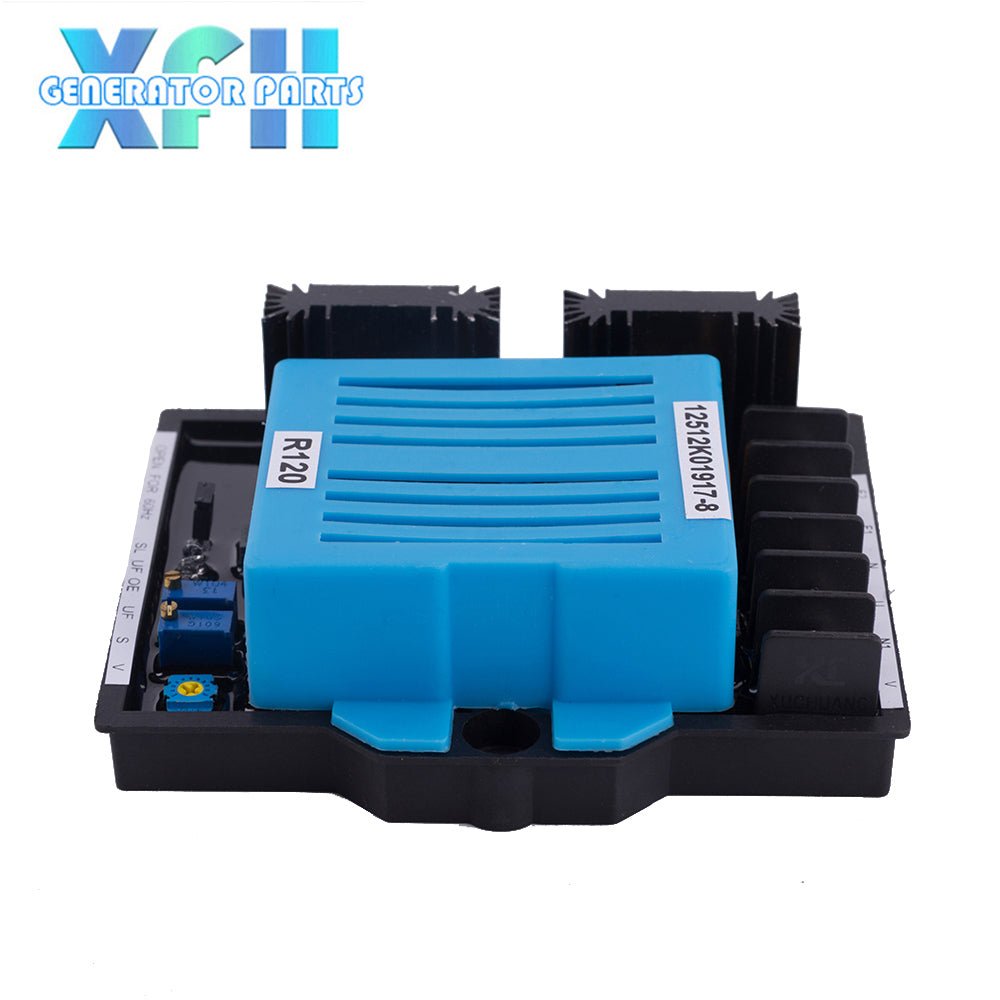

R120 AVR Automatic Voltage Regulator Leroy Somer Diesel Generator Stabilizer Board Spare Parts

R120 AVR Automatic Voltage Regulator Leroy Somer Diesel Generator Stabilizer Board Spare Parts

Test before shippment, 1 year warranty, pay safe with PayPal.

Regular price $47.00
Regular price Sale price $47.00
Sale Sold out
Shipping calculated at checkout.

R120 AVR Automatic Voltage Regulator Leroy Somer Diesel Generator Stabilizer Board Spare Parts

Generator AVR R120 AC Automatic Voltage Regulator stabilizer Circuit Diagram is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Specification
Sensing/Power Input
Voltage:Jumper selectable 190-240V ac Max 95V ac at 240V ac input
Frequency: 50-60 Hz nominal
Magnetic Field Output
Current:Continuous 20A
Pressure Regulating Accuracy
<±1% RMS with 4% engine govern
Product Description

Features:
* Voltage regulation < +/-1%
* Soft start voltage ramping
* Sensing voltage loss protection
* 120 or 240 Vac sensing, jumper selectable
* Under frequency roll off protection
* With under frequency LED indicator
