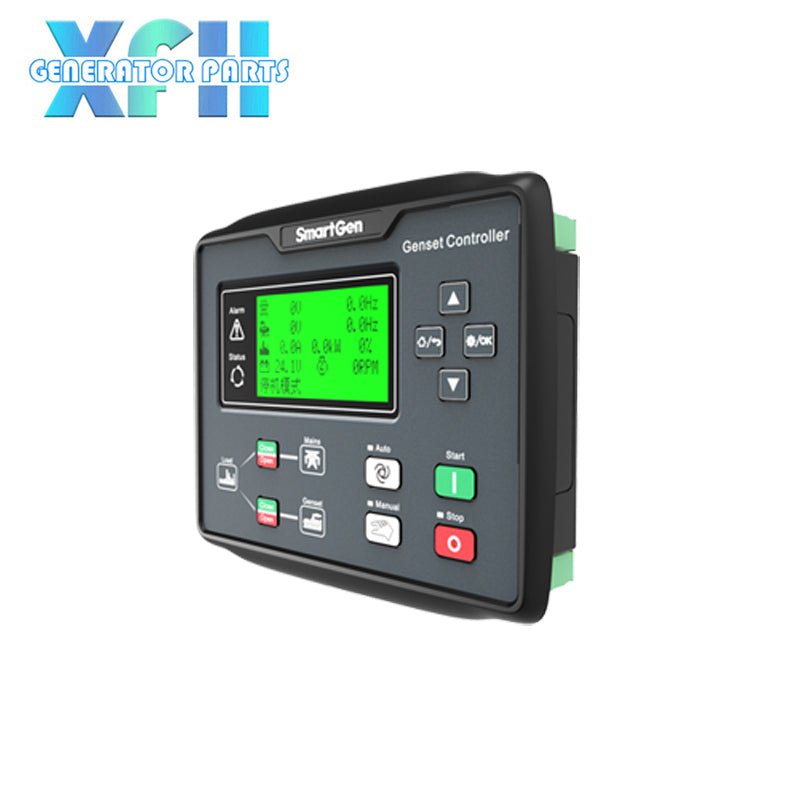

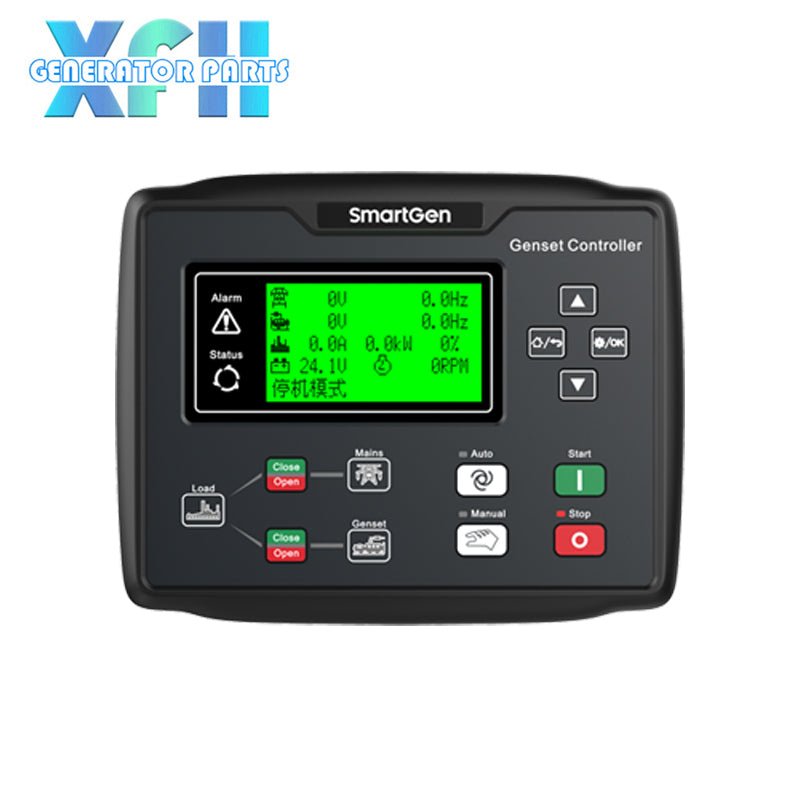

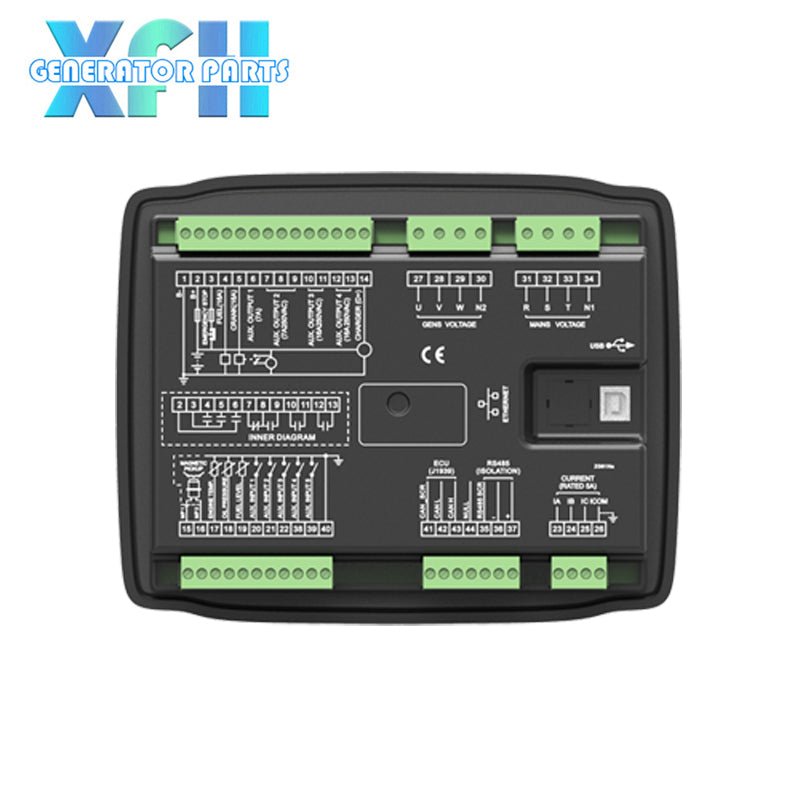

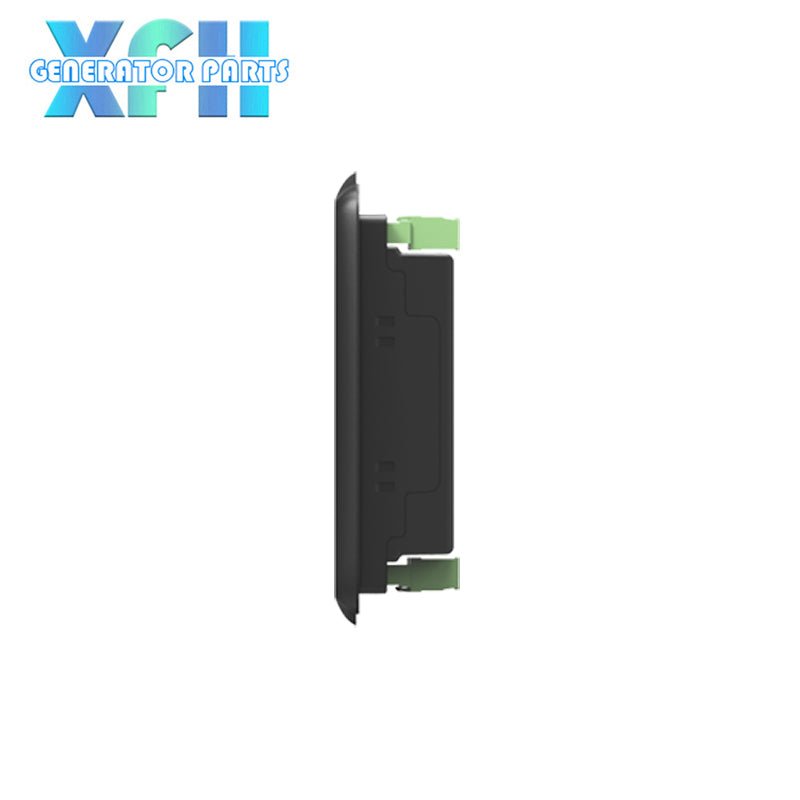

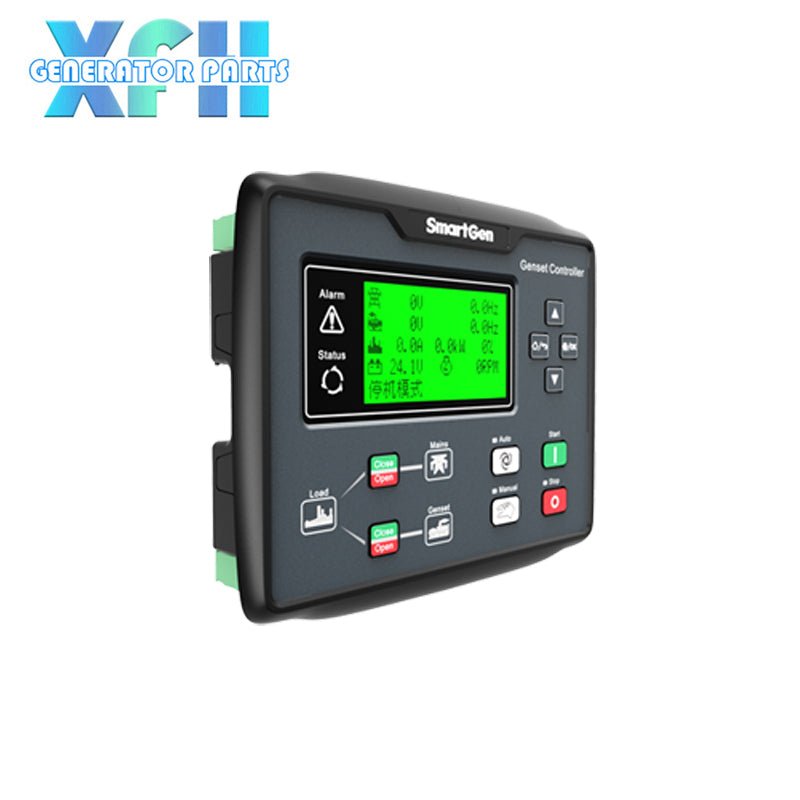

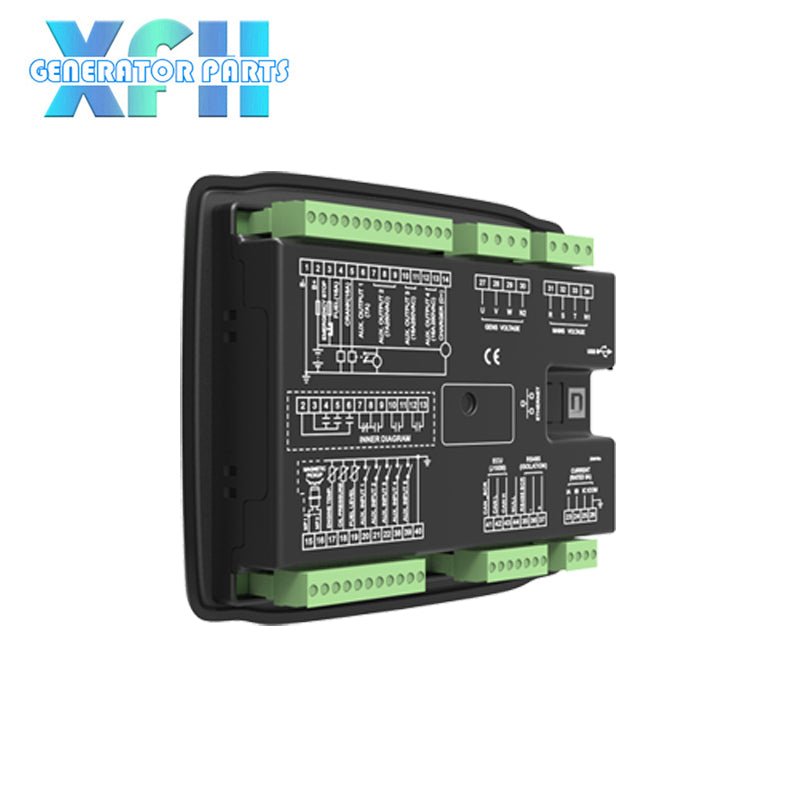

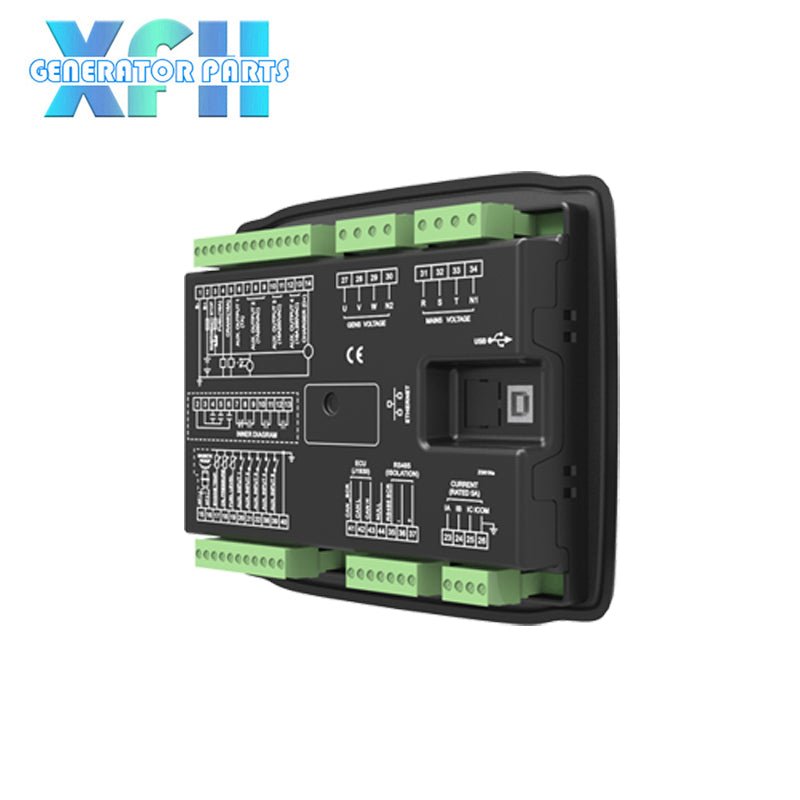

Original Smartgen HGM6120NC Genset Controller Automatic Start Module With RS485

Original Smartgen HGM6120NC Genset Controller Automatic Start Module With RS485

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Regular price $205.00
Regular price Sale price $205.00
Sale Sold out
Shipping calculated at checkout.

HGM6100N series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French with easy and reliable operation.

HGM6100N series automatic controller uses micro-processing technique which can achieve precision measurement, value adjustment, timing and threshold setting etc.. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high reliability.

PERFORMANCE AND CHARACTERISTICS

HGM6100N controller has six variants:

HGM6110N/6110NC/6110CAN: Automatic Start Module, it controls generator to start/stop by remote start signal;

HGM6120N/6120NC/6120CAN: Based on HGM6110N/6110NC/6110CAN, it adds mains AC monitoring and mains/generator automatic switching control (AMF), especially suitable for the automation system composed by mains and genset.

Note1: HGM6110NC/6120NC has RS485 port, HGM6110N/6120N without. HGM6110CAN/6120CAN has CAN port, HGM6110N/6120N and HGM6110NC/6120NC without.

Note2: HGM6110/6120 is taken as an example to describe in this manual.
