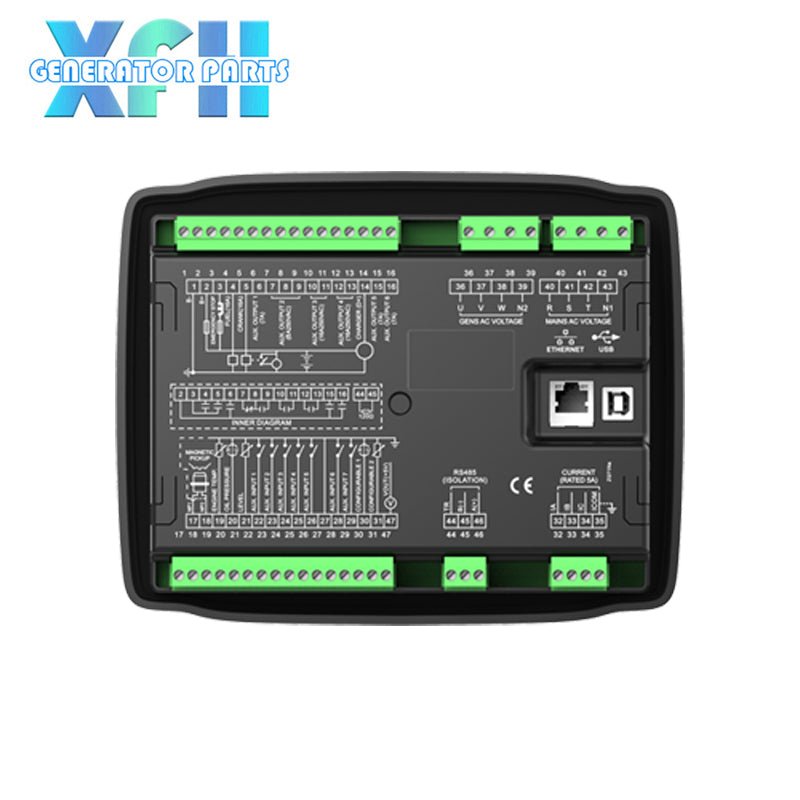

New SmartGen Automatic Start Module HGM7110N Power Station Automation Controller

New SmartGen Automatic Start Module HGM7110N Power Station Automation Controller

Test before shippment, 1 year warranty, pay safe with PayPal.

Regular price $210.00
Regular price Sale price $210.00
Sale Sold out
Shipping calculated at checkout.
GM7110N/HGM7120N series power station automation controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single diesel unit to achieve remote start/stop, data measurement, alarm protection and etc. functions. It fit with LCD display, optional languages interface (Chinese, English and etc.), and it is reliable and easy to use.

HGM7110N/HGM7120N series power station automation controllers adopt 32-bit micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. Almost parameters can be configured from front panel of controller, and all parameters can be adjusted through PC software via USB/RS485 port and monitored through PC software via RS485. It can be widely used in all types of genset control automation system with compact structure, simple connections and high reliability.

HGM7110N: ASM (Automatic Start Module),it controls generator to start/stop by remote signal;
Function Item
Parameter
Display
LCD(132*64)
Language
Chinese&English &Others
Operation Panel
Silicon Rubber
Digital Input
7
Relay Output
8
Analogue Input
5
AC System
1P2W/2P3W/3P3W/3P4W
Alternator Voltage
 (15-360)V(ph-N)
Alternator Frequency
50/60HZ
Monitor Interface
RS485/USB/Ethernet interface
Programmable Interface
RS485/USB/Ethernet interface
DC Supply
DC(8-35)V
Case Dimensions(mm)
209*166*45
View full details

Send Inquiries
