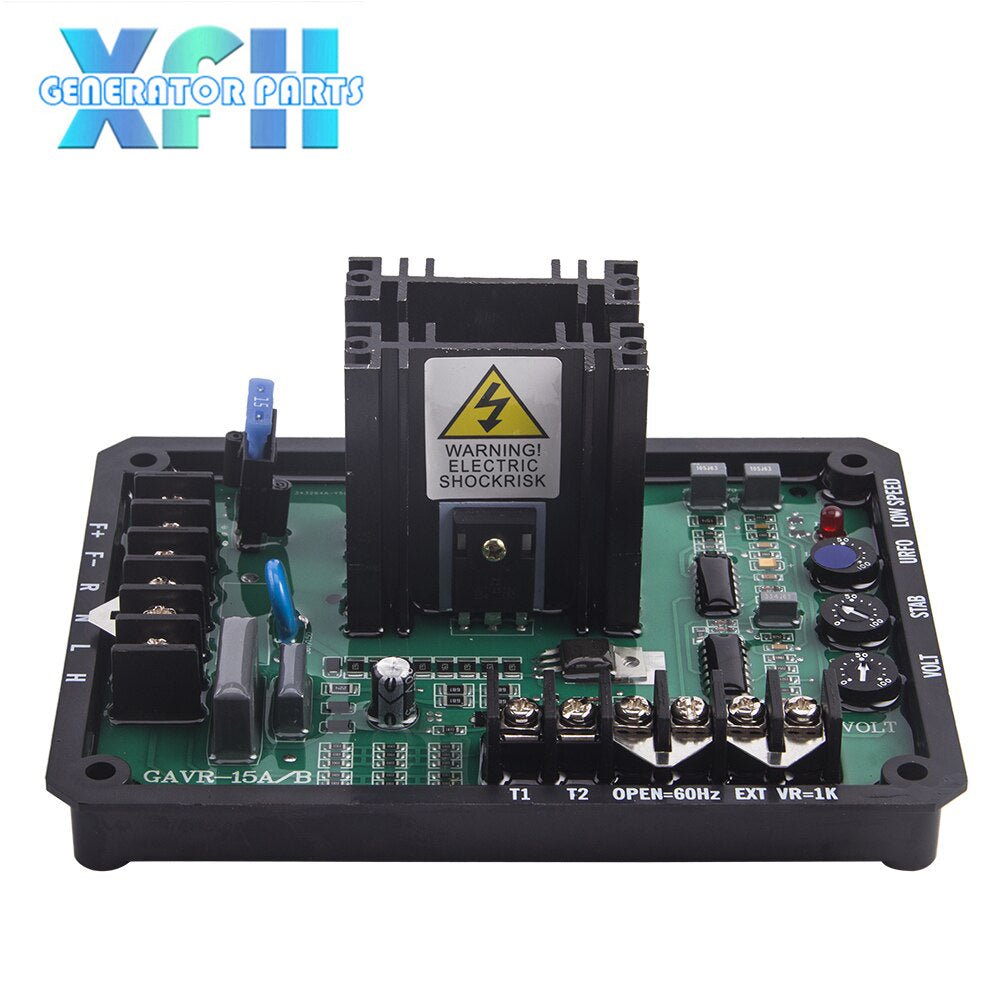

New GAVR15B AVR Brushless Diesel Generator Automatic Voltage Regulator Stabilizer 500kva Power Alternator Control Parts Gavr15A

New GAVR15B AVR Brushless Diesel Generator Automatic Voltage Regulator Stabilizer 500kva Power Alternator Control Parts Gavr15A

Test before shippment, 1 year warranty, pay safe with PayPal.

Regular price $22.00
Regular price Sale price $22.00
Sale Sold out
Shipping calculated at checkout.

Universal AVR for brushless diesel generator 15B

The difference between 15A and 15B is that. 15B is with Aviation potentiometer material.
Universal 15 Amp 1/2 Wave Self Excited Dip-Switch Progmmable avr
Voltage Regulation < ±1%
220/440VAC Programmable Input
Rugged Compact Desigh
Soft Start Voltage Ramping
With Under Frequency Roll Off Protection
EMI Suppression
Built-in High Capacity 15Amp Fuse


Voltage

220/400VAC , 1 phase 2 wire

Power Input voltage

180-240VAC , 1 phase 2 wire

Output voltage

max 90 VDC at 240VAC input

Current

Continuous 6A , intermittent 12A for 10secs

Resistance

Min.10 ohm , Max 100ohm

Voltage Build-up

residual voltage at avr terminal >5VAC

Voltage Regulation

<±0.5% with 4% engine governing

Operating Temperature

(-40°C to +65°C

Storage Temperatue

(-40°C to +85°C

External Volts Adjutment

±7% with 1k ohm 1 watt trimmer

EMI Suppression

Internal electromagnetic interference filtering

Unit Power Dissipation

Max.8 watt

Under Frequency Protection

60Hz system presets knee point at 57Hz


50Hz system presets knee point at 47Hz

Dimensions

157mmL*117mmW*70mmH
