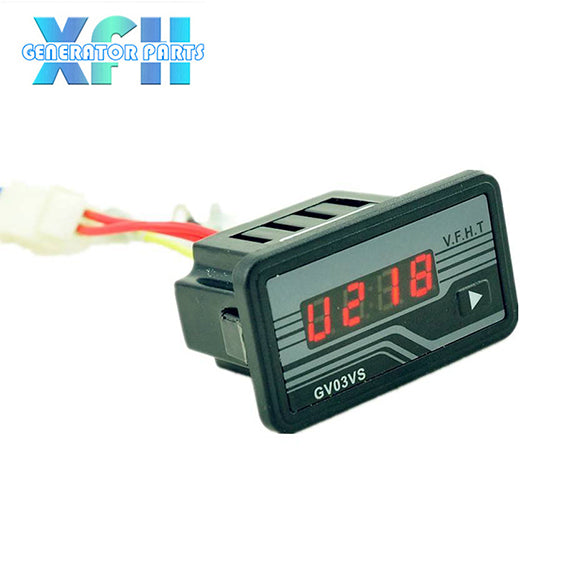

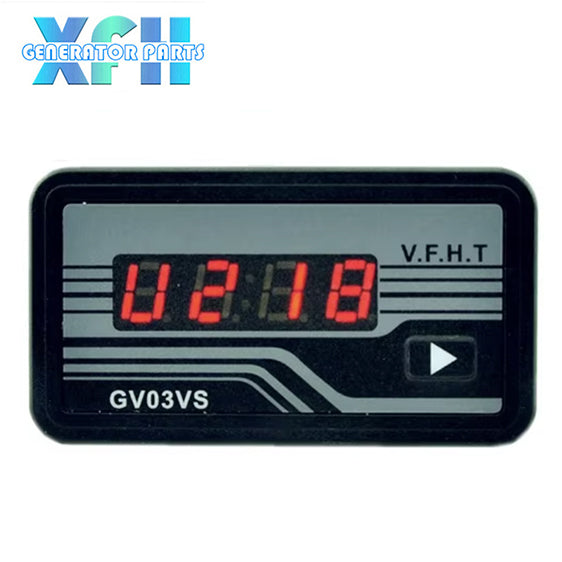

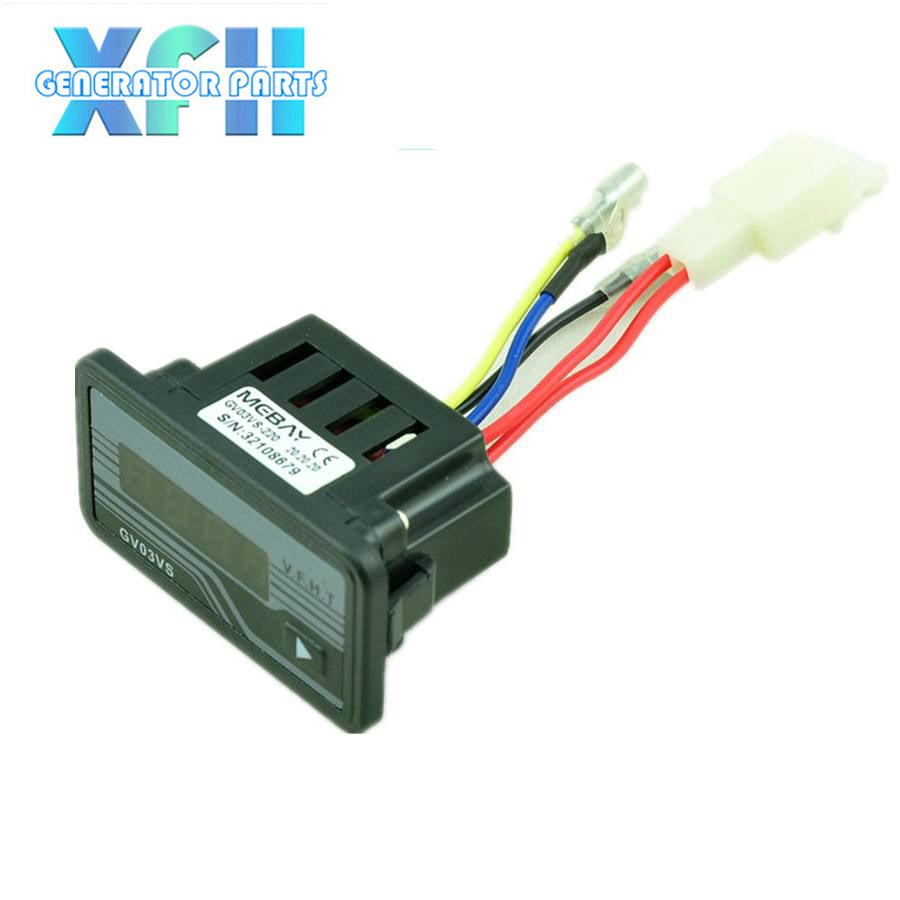

Mebay GV03VS Diesel Generator Digital Meter Voltage Frequency Run Time Accumulated Hours Meter

Summary

GV03VS is one light and low price-orientated module used for checking and demonstrating Voltage, Frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.

Features

1. Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;
2. Results shown by 4-position digital LED tube
3. Over voltage,Low oil level protections
4. With Page Turning Buttons 5. 220V/380V options

Parameter demonstration

  Phase voltage

  Frequency

  Run time

  Accumulating time

Range and accuracy

  AC voltage:Phase voltage AC165-260V,Line voltage AC300-450V；Deviation≦±1%

  Frequency:45-70HZ,deviation≦±0.5%

  Accumulated time:0-9999hours (min:0.1hours),deviation≦±1%.

Specification

  Power Supply: AC165～275V/ AC280～450V

  Consuming power:MAX：1 W

  Temperature: -40℃ ～ 75℃

  Size (W * H * D)：60mm * 33mm * 51mm

  Installation Size(W * H): 51mm * 26mm

  Weight:50g
