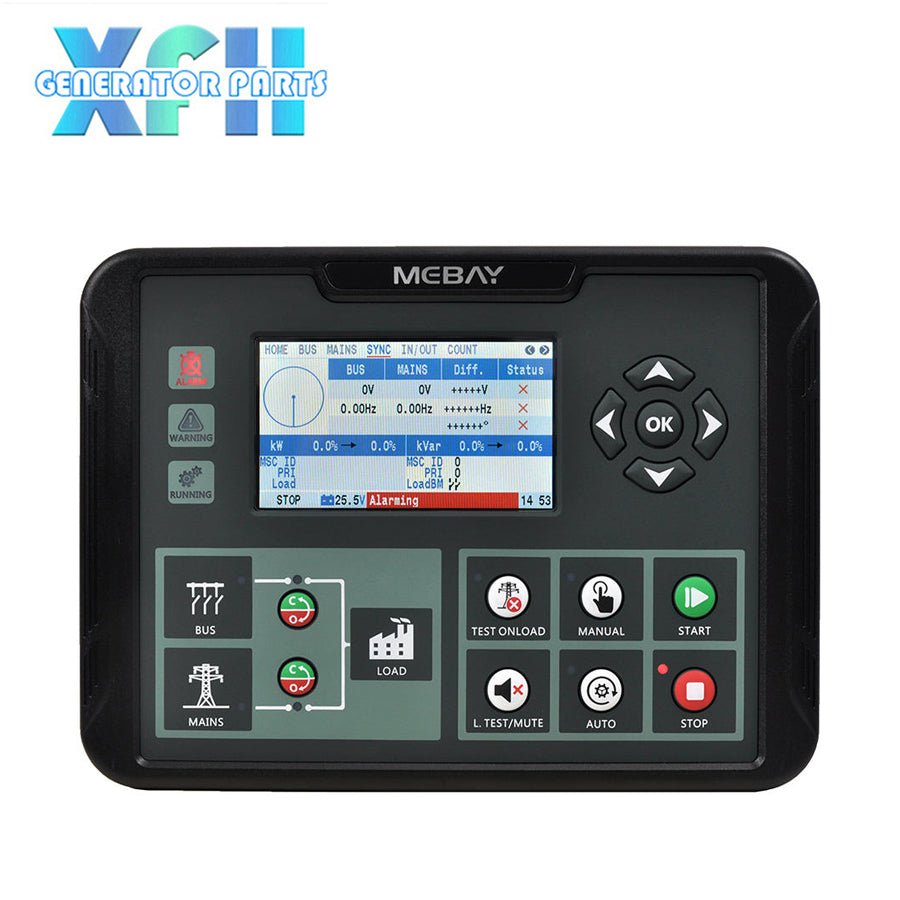

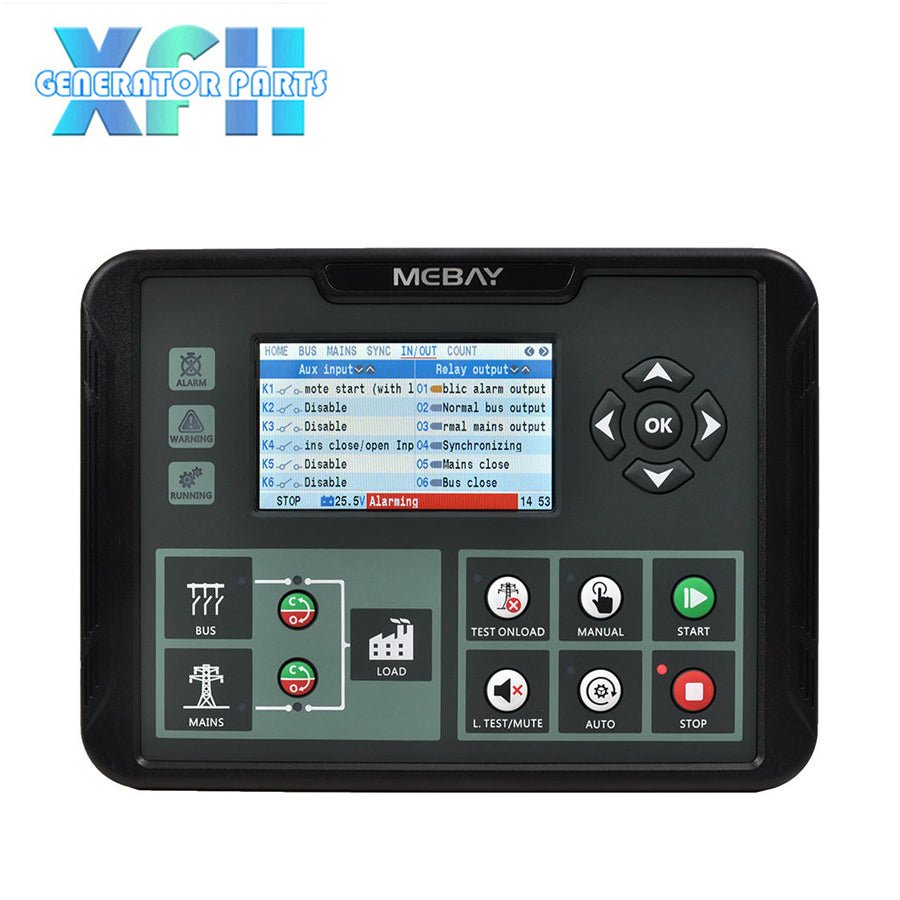

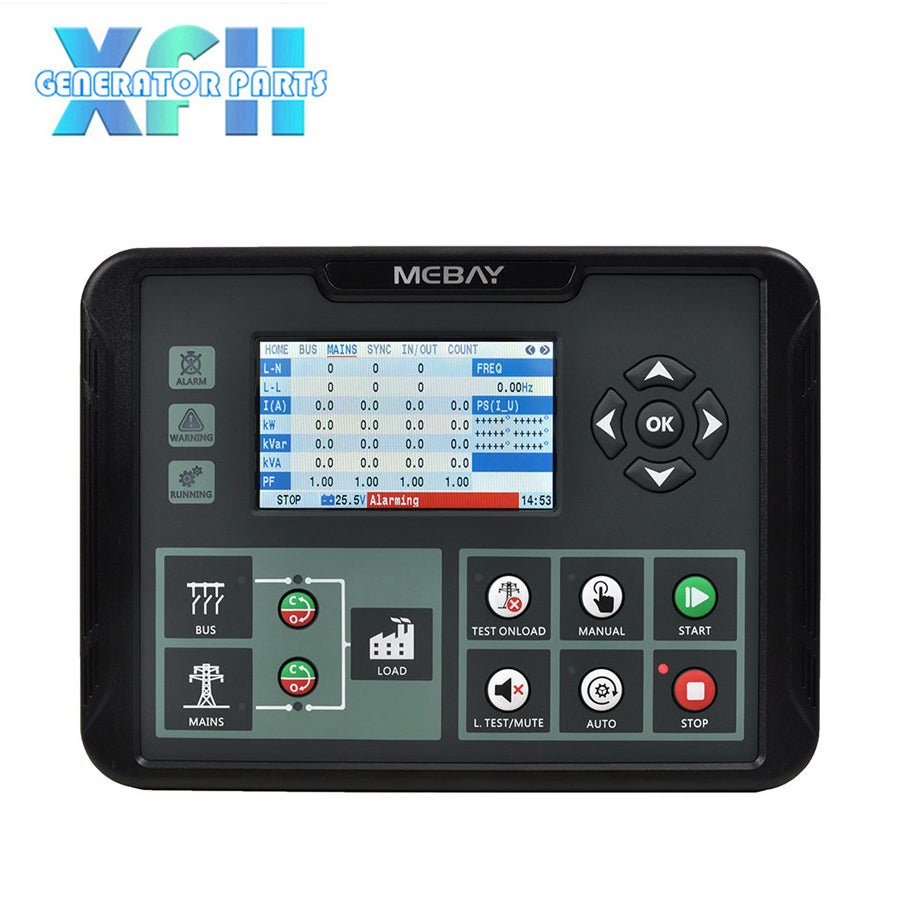

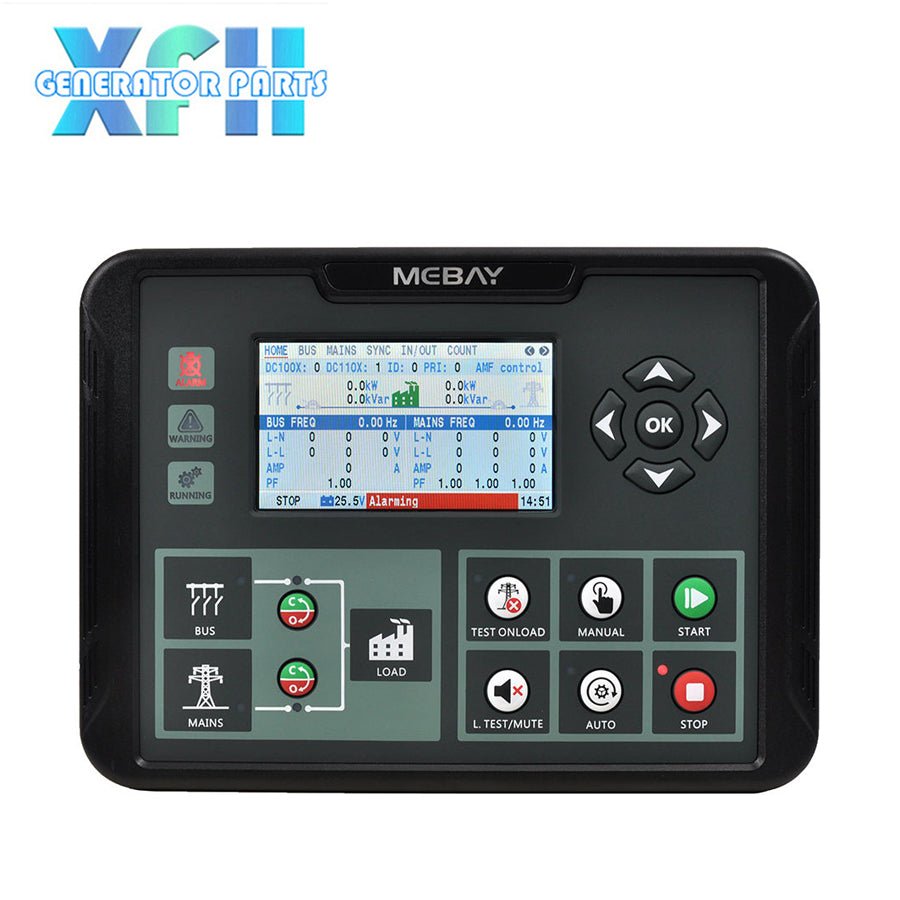

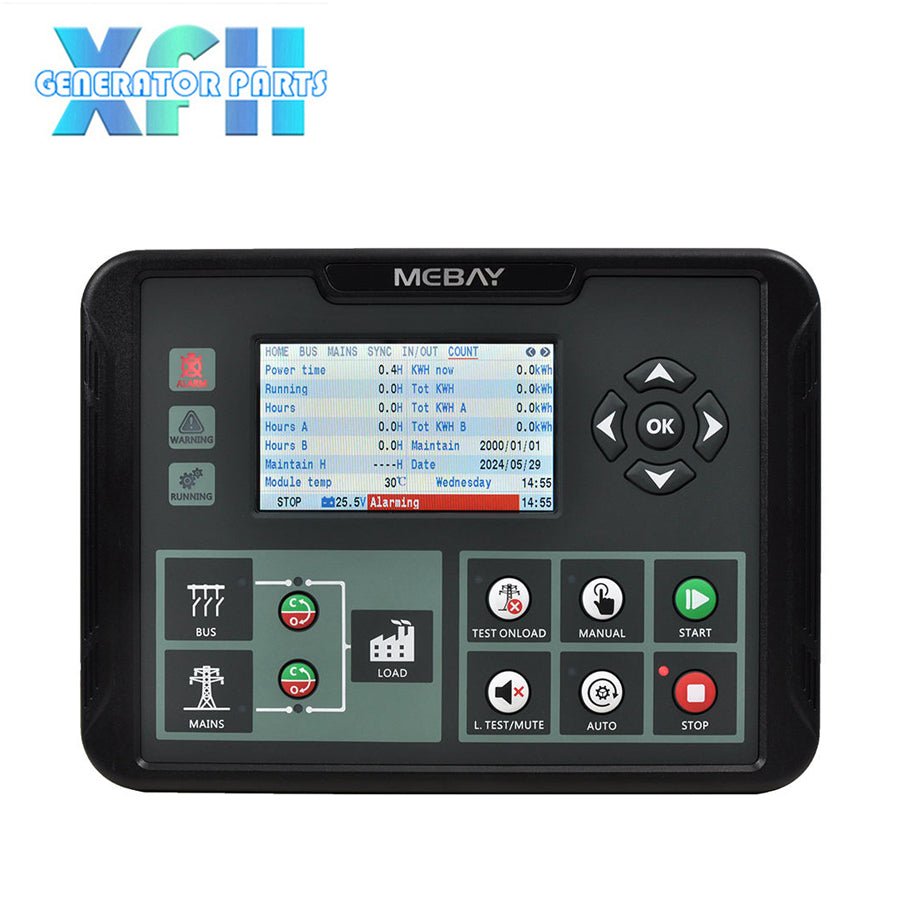

Mebay Bus Tie Mains Generator Auto Synchronizer Synchronization Panels DC110D


DC110 series parallel controllers are suitable for manual/automatic parallel systems of multiple generator sets with single or multiple mains power, enabling automatic start-up and shutdown, parallel operation, data measurement and alarm protection of multiple generator sets.

The parallel controller has a wide choice of modes for parallel operation with the mains, such as genset fixed active power, reactive power/power factor output, mains peak lopping and uninterruptedly restore to mains supply.

Main Features

* 4.3inch TFT colorful big screen LCD, Available in 9 languages, user’s language set if necessary.

* The standard ETHERNET communication interface can be connected to the GSCLOUD generator cloud control platform, and the status of the generator set can be monitored remotely through the WEB platform and mobile APP; the ETHERNET interface supports the Modbus-RTU protocol, and the controller parameters can be set through the PC;

* MSC CAN communication interface, capable of communicating with multiple generator sets
* For mains, controller has over voltage, under voltage, over frequency, under frequency ,loss of phase and phase sequence wrong detection functions; For bus, controller has over current, over power, loss of phase, phase sequence wrong detection functions.

*Synchronization parameters: Voltage Difference Between Bus and Mains, Frequency Difference Between Bus and Mains, Phase Difference Between Bus and mains, multiple running modes in auto state: AMF (Automatic Mains Failure), Island Mode, Fixed Power,
Peak Lopping Mode and Load Takeover Mode.

*Ramp on and ramp off function.

Options
Parameters
Working voltage
DC8V----36V Continuous
Power consumption
Standby：24V：MAX2W
Working：24V：MAX5W

AC Voltage Input
1P2W 30VAC-360VAC (ph-N)
2P3W 30VAC-360VAC (ph-N)
3P3W 60VAC-620VAC (ph-N)
3P4W 30VAC-360VAC (ph-N)
Alternator Frequency
50HZ/60HZ
AUX. OUTPUT 1-3
Max 5Amp DC+VE Supply voltage
AUX. OUTPUT 4
250V/5 AMP Non-contact normally Open/Closed output
AUX. OUTPUT 5
250V/16 AMP Non-contact normally Open/Closed output
AUX. OUTPUT 6
250V/16 AMP Non-contact normally Closed output
AUX. OUTPUT 7-8
Max 16Amp DC+VE Supply voltage
AUX. Input
Available if connecting with Battery -
USB
Type-A Type-B
RS485
Isolated Modbus-RTU protocol
ENTHERNET
RJ45 10/100Mbps adaptive network interface;
Cloud Protocol and TCP/IP Modbus Protocol;
Working condition
DC110D: -25-65℃DC110MR: -40ºC ~+70 ºC
Display Heater: -10ºC turn on; -5ºC turn off
Storage condition
-40-85℃
Protection Level
IP65：when waterproof rubber gasket is added between controller and its panel
Overall dimension
241mm*177mm*45mm
Panel cutout
220mm*160mm
Weight
1Kg
