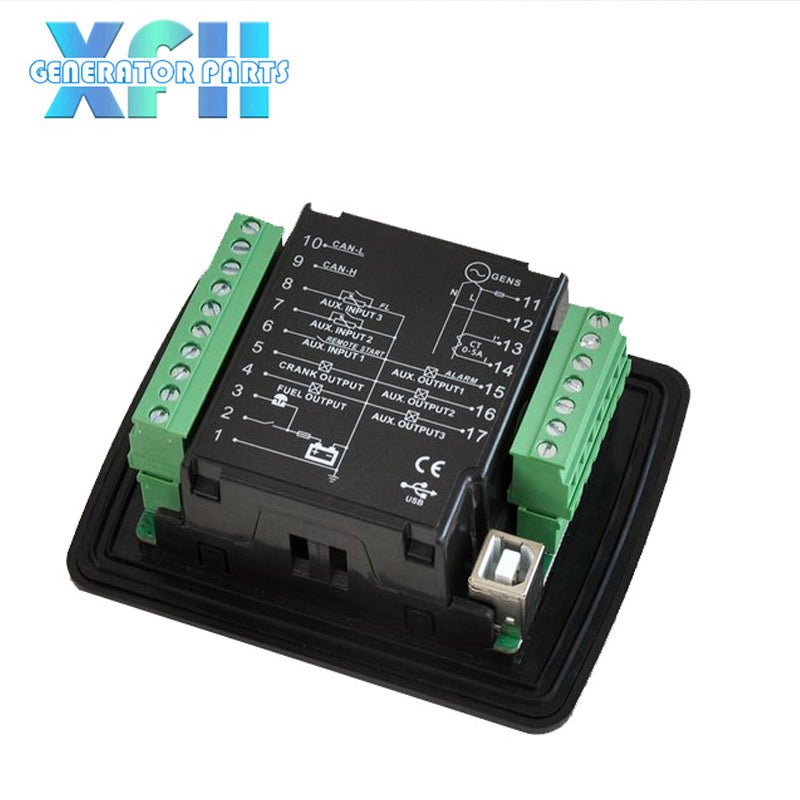

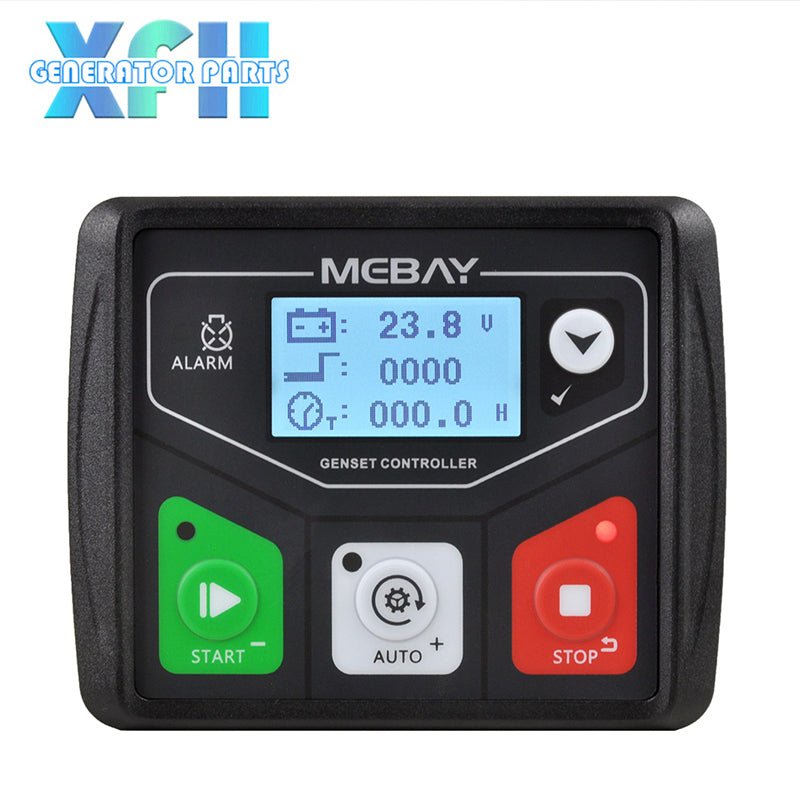

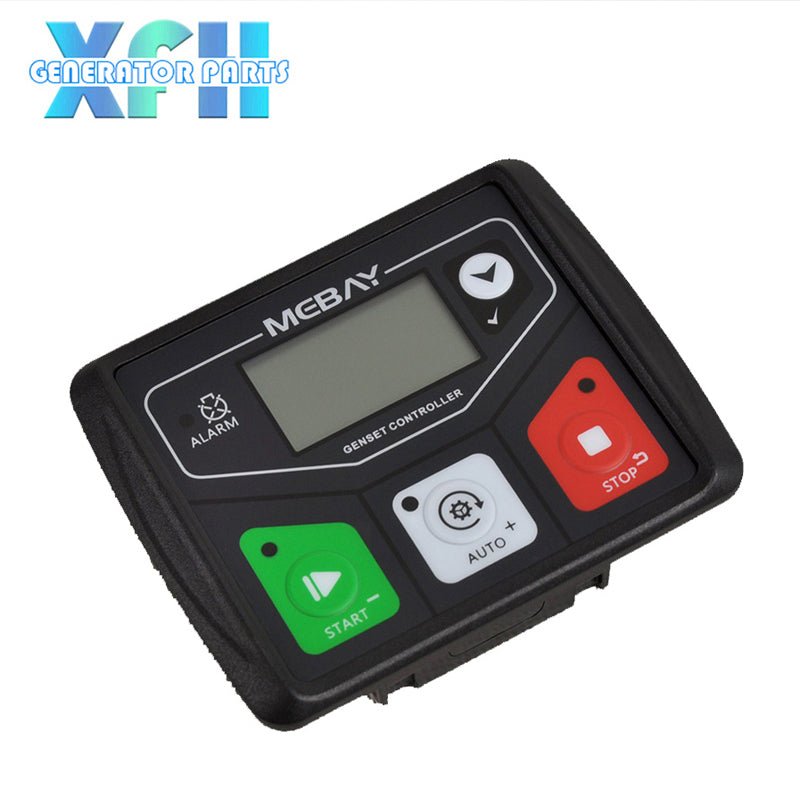

Mebay DC30C Auto Generator Controller Control Panel CANBUS Replace DSE3110

Mebay DC30C Auto Generator Controller Control Panel CANBUS Replace DSE3110

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Regular price $76.00
Regular price Sale price $76.00
Sale Sold out
Shipping calculated at checkout.

This series of controller is specially designed for the start, stop, parameter monitoring and fault monitoring of EFI diesel, gasoline and gas generator sets, and has parameter setting function.

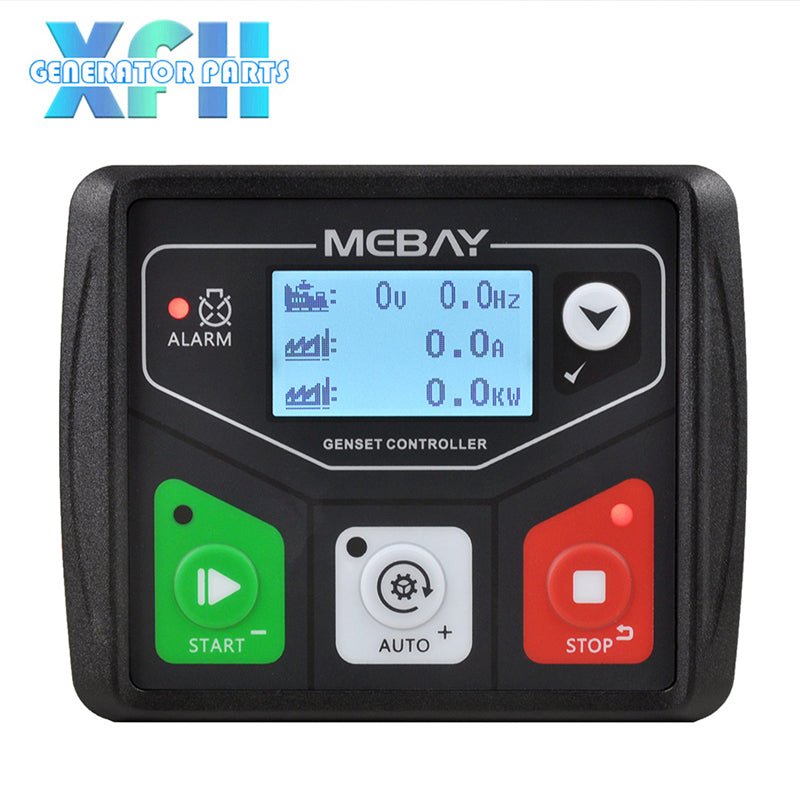

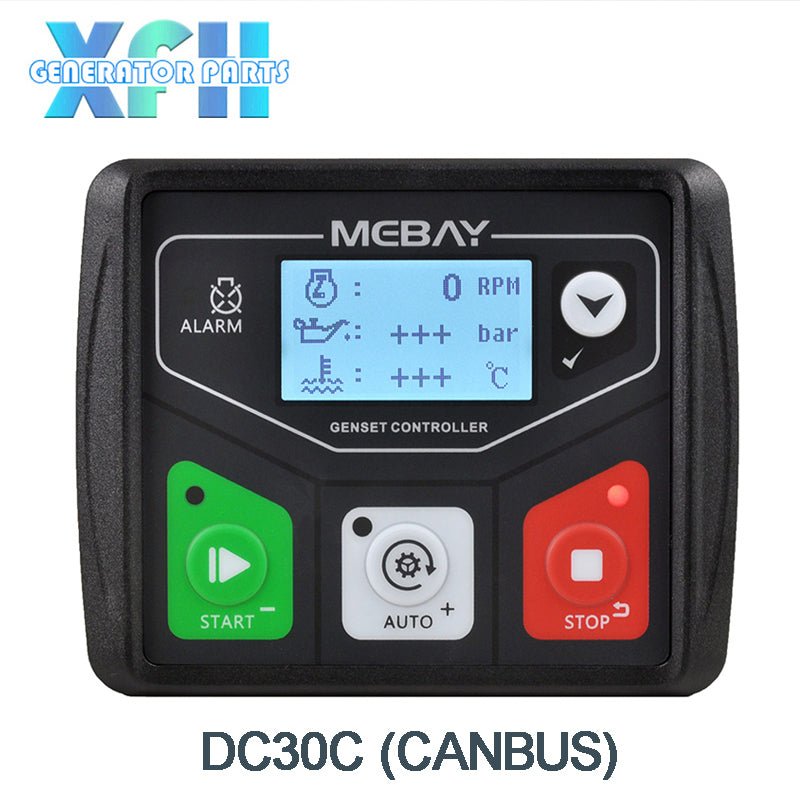

Parameters Display

  • EngineRPM;
  • Engine oil pressure;
  • Engine temperature;
  • Engine fuel level;
  • Engine battery voltage;
  • Generator voltage L-N;
  • Generator current A;
  • Generator Frequency Hz;
  • Generator active power KW;
  • Successful start Times;
  • Current running time;
  • Total running time;
  • Classes maintenance notice.
Alarm protection
  • Over speed;
  • Under speed ;
  • Low oil pressure ;
  • High temperature;
  • External emergency alarm;
  • Sensor Open;
  • Over Frequency;
  • Under Frequency;
  • Over voltage;
  • Under voltage;
  • Over current;
  • Low water level alarm;
  • Emergency Stop;
  • Crank failure;
  • Stop Failure;
  • Over battery voltage;
  • Under Battery voltage.

Options

Parameters

Operation Voltage

DC8-36V Continuous

Power Consumption

Standby:24V:MAX 1W



Working:24V:MAX 2W

AC Voltage Input

1P2W(L-N input) 30VAC-360VAC(ph-N)

Operation Voltage

DC8-36V Continuous

Fuel Relay Output

1Amp DC+VE Supply voltage

Start Relay Output

1Amp DC+VE Supply voltage

Programmable Relay output 1

1Amp DC+VE Supply voltage

Programmable Relay output 2

1Amp DC+VE Supply voltage

Programmable Relay output 3

1Amp DC+VE Supply voltage

Switch value input

Connected to battery negative pole effective

Working condition

-25-65℃

Storage condition

-40-85℃

Protection Level

IP54:when waterproof rubber gasket is added between controller and its panel

Insulation strength

Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.

Overall dimension

106mm×86mm×45mm

Panel cutout

78mm×66mm

Weight

0.25Kg
