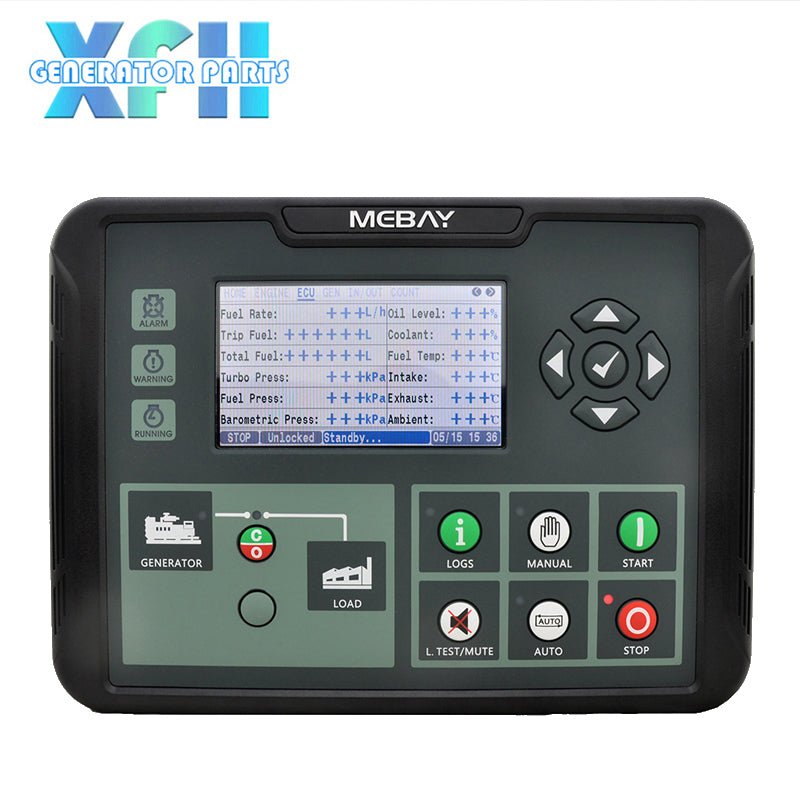

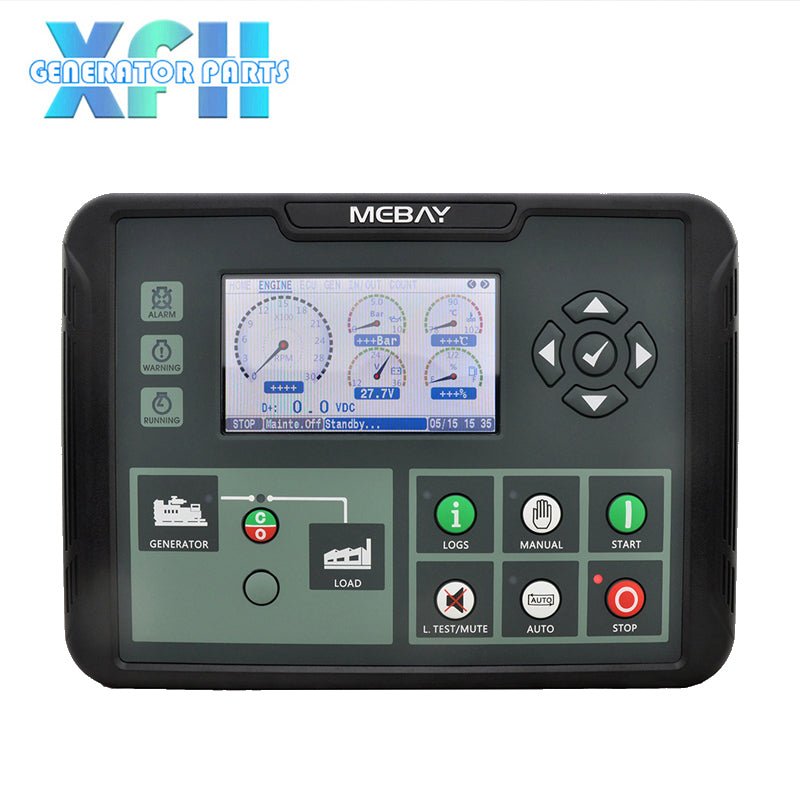

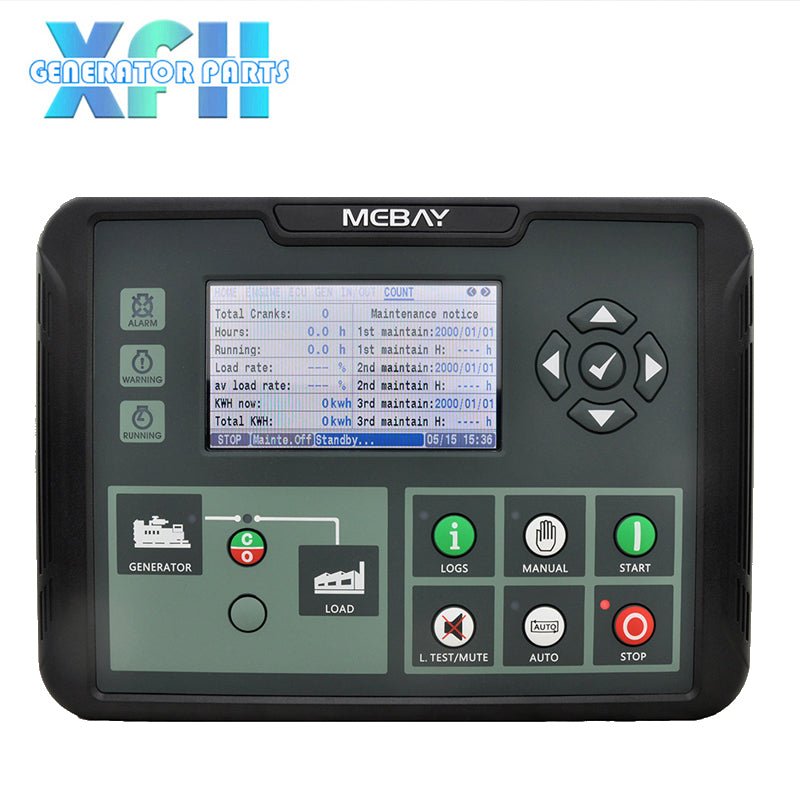

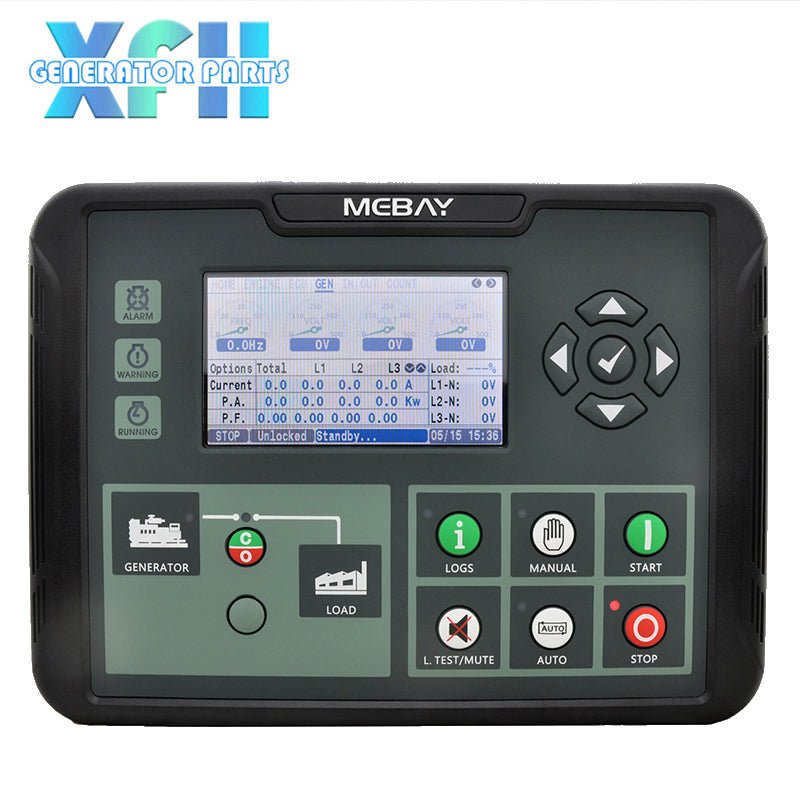

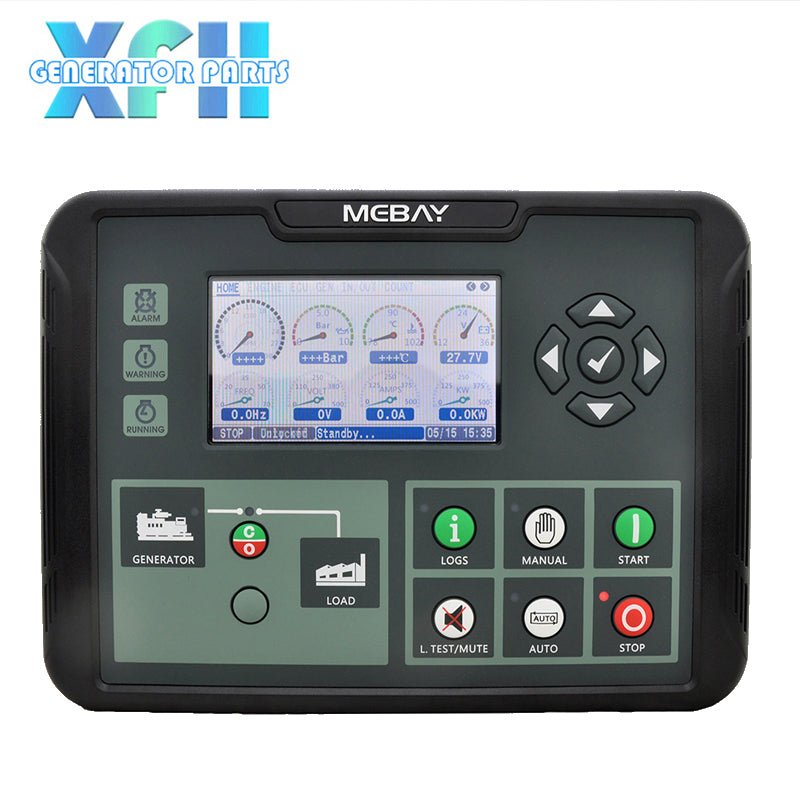

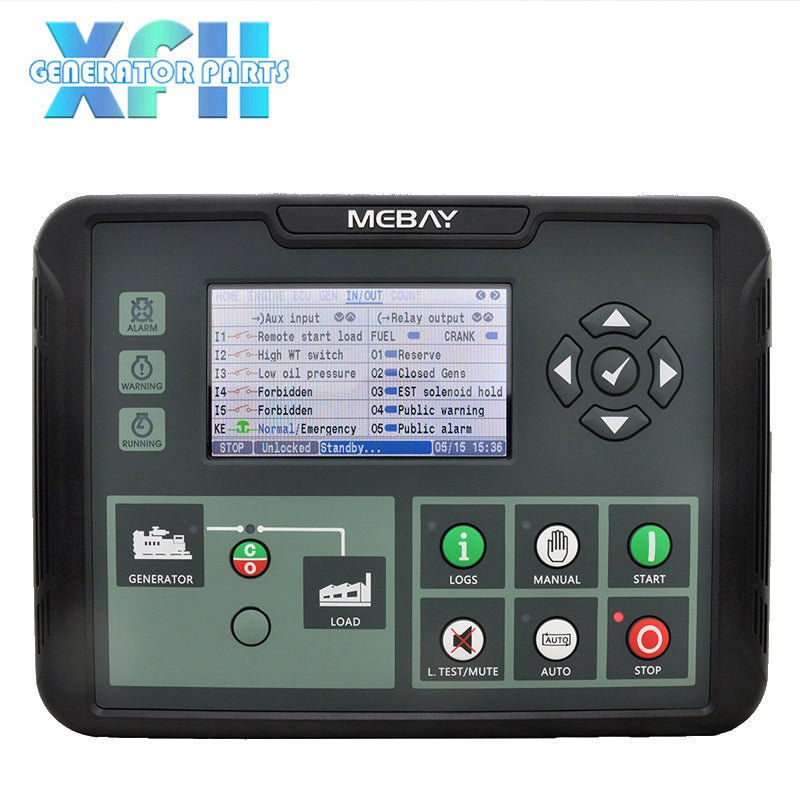

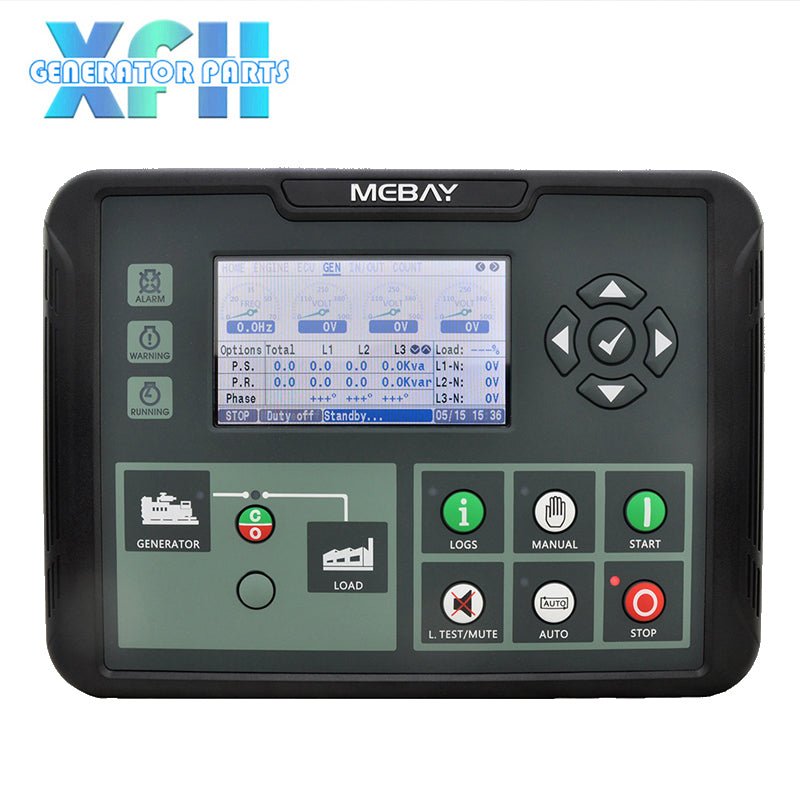

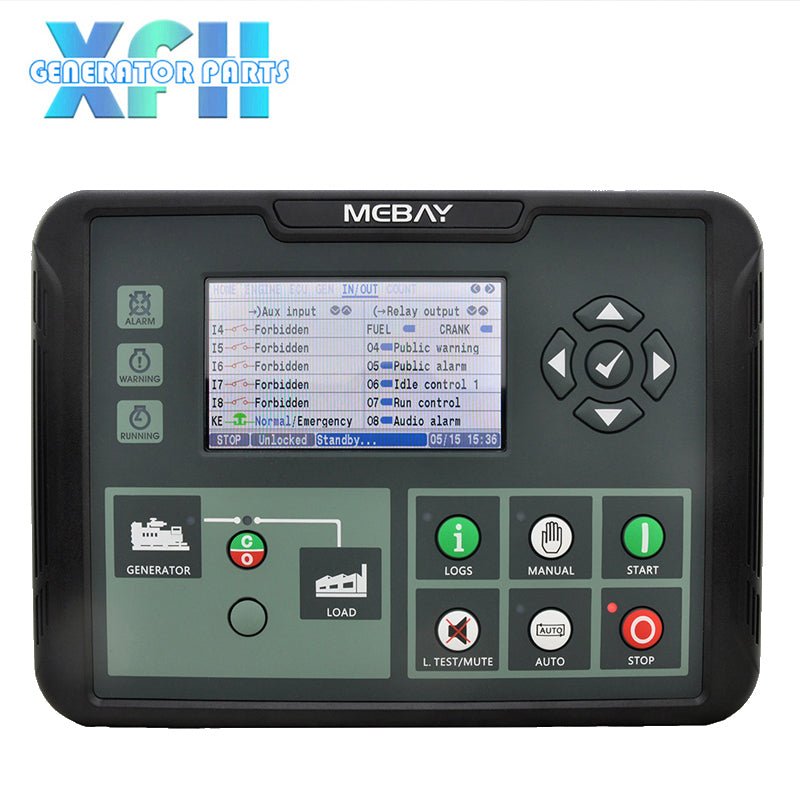

Mebay DC90D DC90DR Auto Generator Control Module CANBUS USB J1939 Protocol Genset Remote Controller

This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.

4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.

Main Features

There are four Models under DC9xD series.

DC90D: used for single machine automation. Start/Stop through remote start signal.

DC92D: Based on DC90D, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.

DC90DR: Based on DC90D, it adds RS485 port.

DC92DR: Based on DC92D, it adds RS485 port.

• Dual core 32bit high performance single chip microcomputer.
• 3inch TFT colorful big screen LCD, Available in 5 languages, user’s language set if necessary.
• Acrylic material is adapted to protect the screen. Silicone panels;
• USB Port and with RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.
• Standard CAN communication port, built-in J1939 protocol, has matched more than 30 kinds of engines;
• Input/output function, status can be shown directly.
• Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month.
• Three class protection countdown function, which can set the maintenance time or date.
• The fault record function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is convenient to find the cause of the fault.
• Totally 10relay’s output, among which 8 relay output can be self-configurable, each relay can be set as max 50 functions, besides, there are 2 groups as non-contact terminals.
• With 5 switchesinput, up to 40 functions optional;
• 6 sensor simulation input connectors, 6 input types is configurable and various kinds of units can be set.
• Battery charging control function,which can protect the battery according to battery voltage status.
• Sensor can be self-defined by front face button or PC software.
• Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)
• Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
• Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
• Standard water-proof rubber gasket. The waterproof can reach IP54
