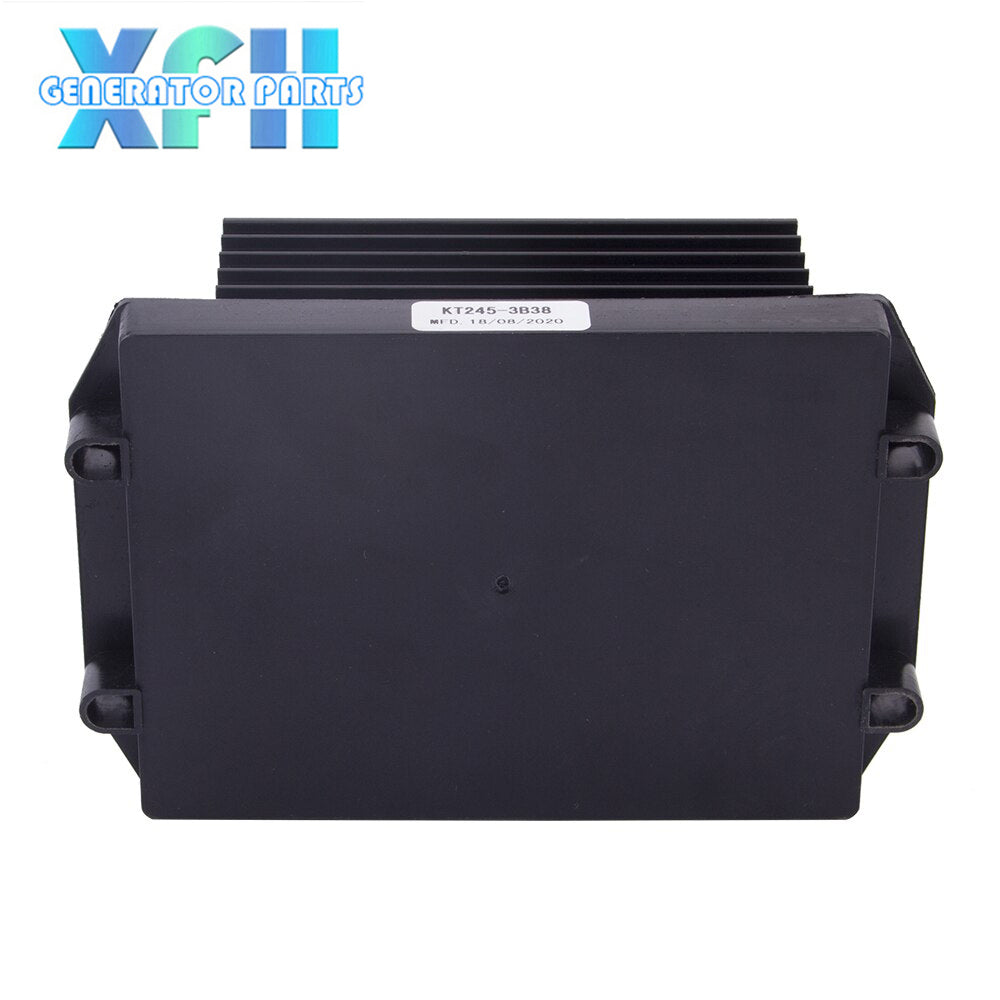

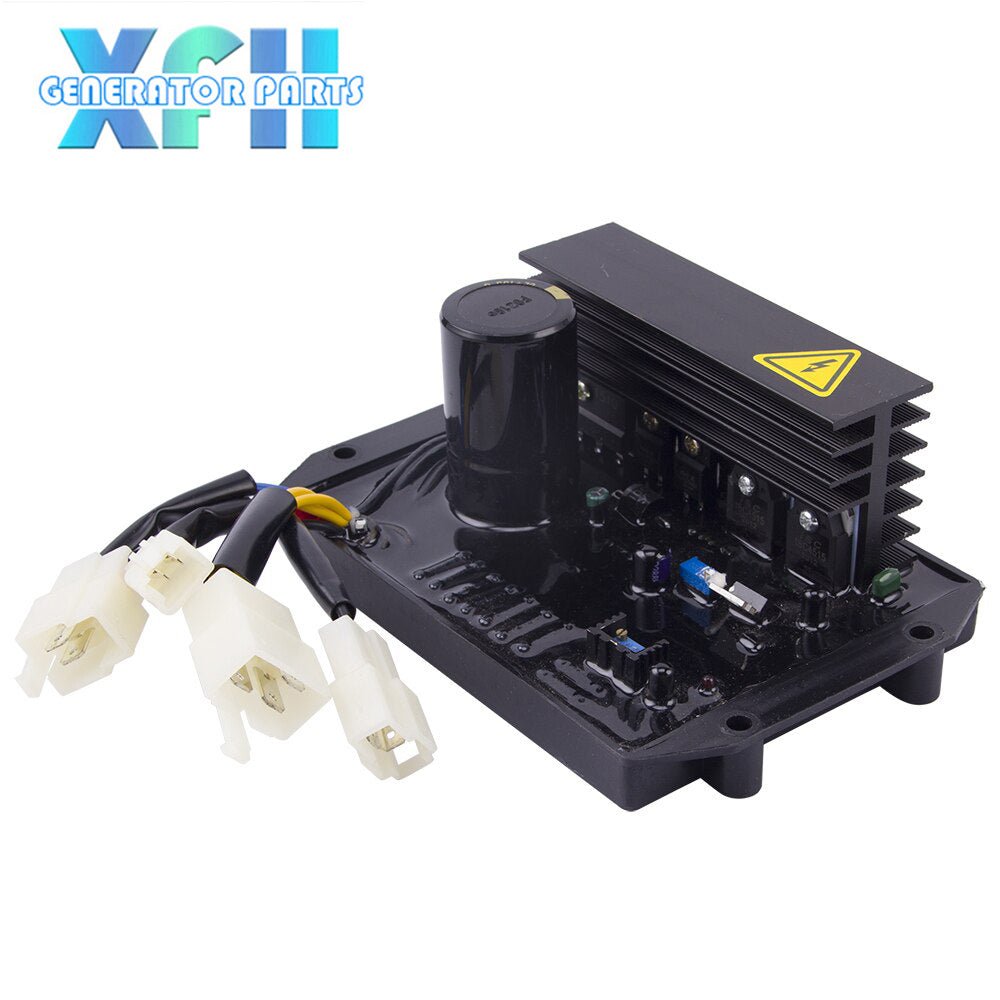

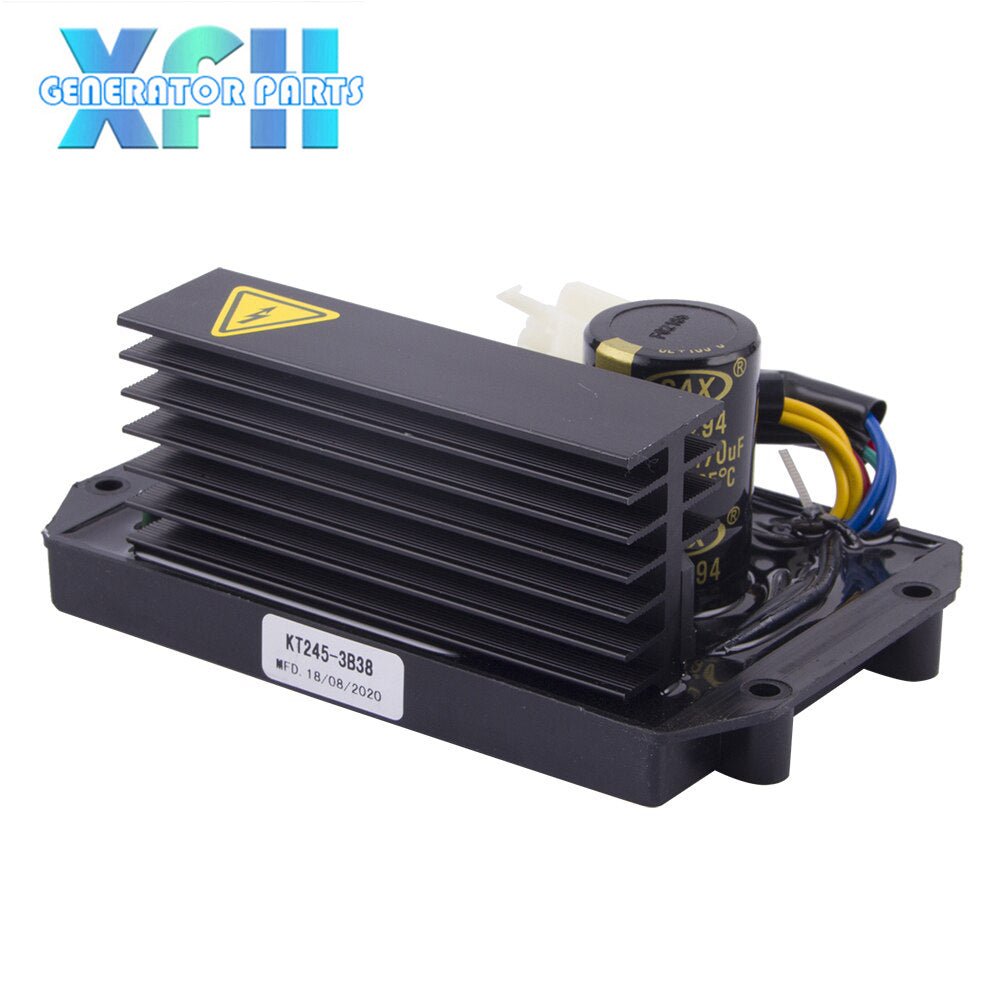

KT245-3B38 380V AVR Automatic Voltage Regulator Module Three Phase Brush Brushless Generator Stabilizer Adjuster 8-15KW

KT245-3B38 380V AVR Automatic Voltage Regulator Module Three Phase Brush Brushless Generator Stabilizer Adjuster 8-15KW

Test before shippment, 1 year warranty, pay safe with PayPal.

Regular price $49.00
Regular price Sale price $49.00
Sale Sold out
Shipping calculated at checkout.

1. Matching parameters with generator

Generator phase number: three phase
Secondary winding voltage: ≤180V
Sampling voltage: 380V
Starting voltage: ≥1.5V
Excitation current: ≤5.0A
No-load output voltage: 400V
No-load voltage adjustment range: ±40V
Power generation: 8.0~15KW
Protection function: Over: overload, short circuit, over current

2. Installation
Connector:
Secondary winding, sampling: 70413-6.3-11; Excitation: 7021-6.3-11; External excitation: 7021-2.8-11
clue:
Wire length: 100mm; wire diameter ∮0.75m㎡

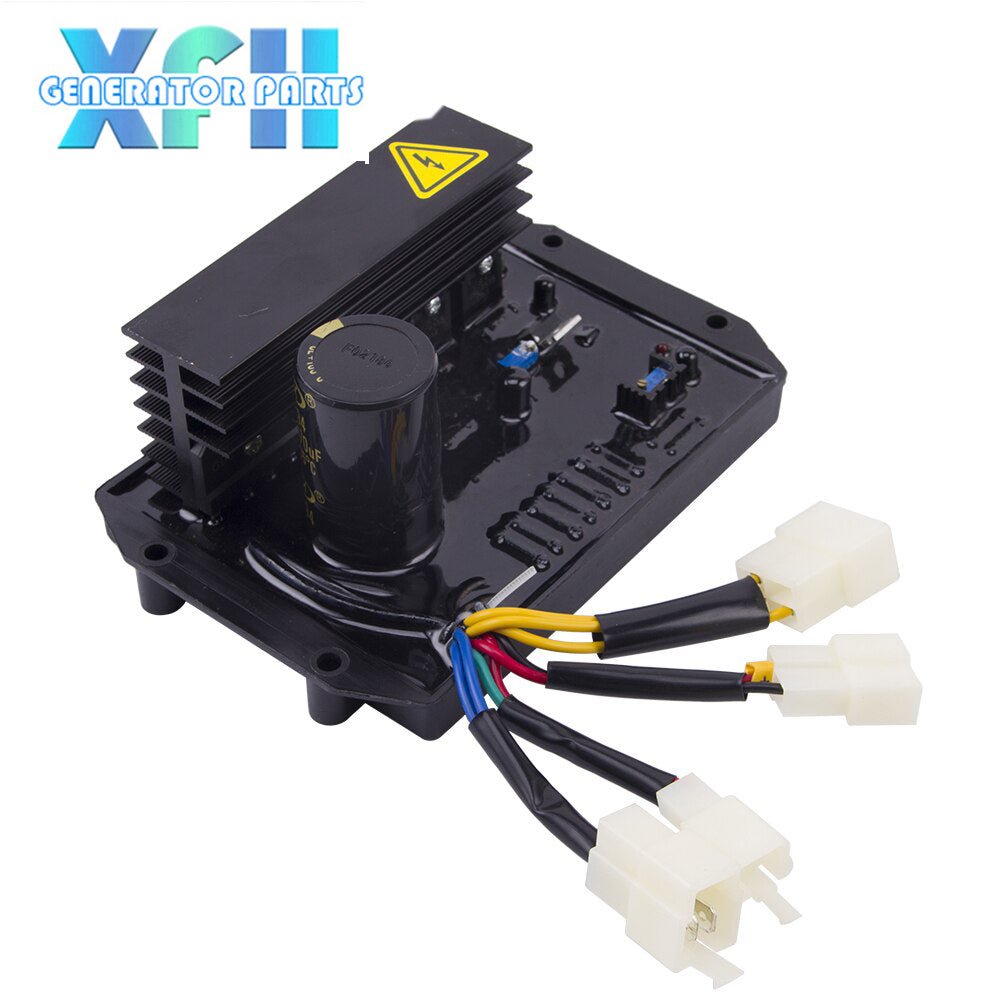

wire color:
Secondary winding: blue, sampling: yellow; excitation: red +, black -; external excitation (can not be used) 12V: red +, green-
Dimensions:
Rectangle: Maximum size 150*98*60mm; aperture: ∮5.5mm;
Hole distance: 140*50mm
