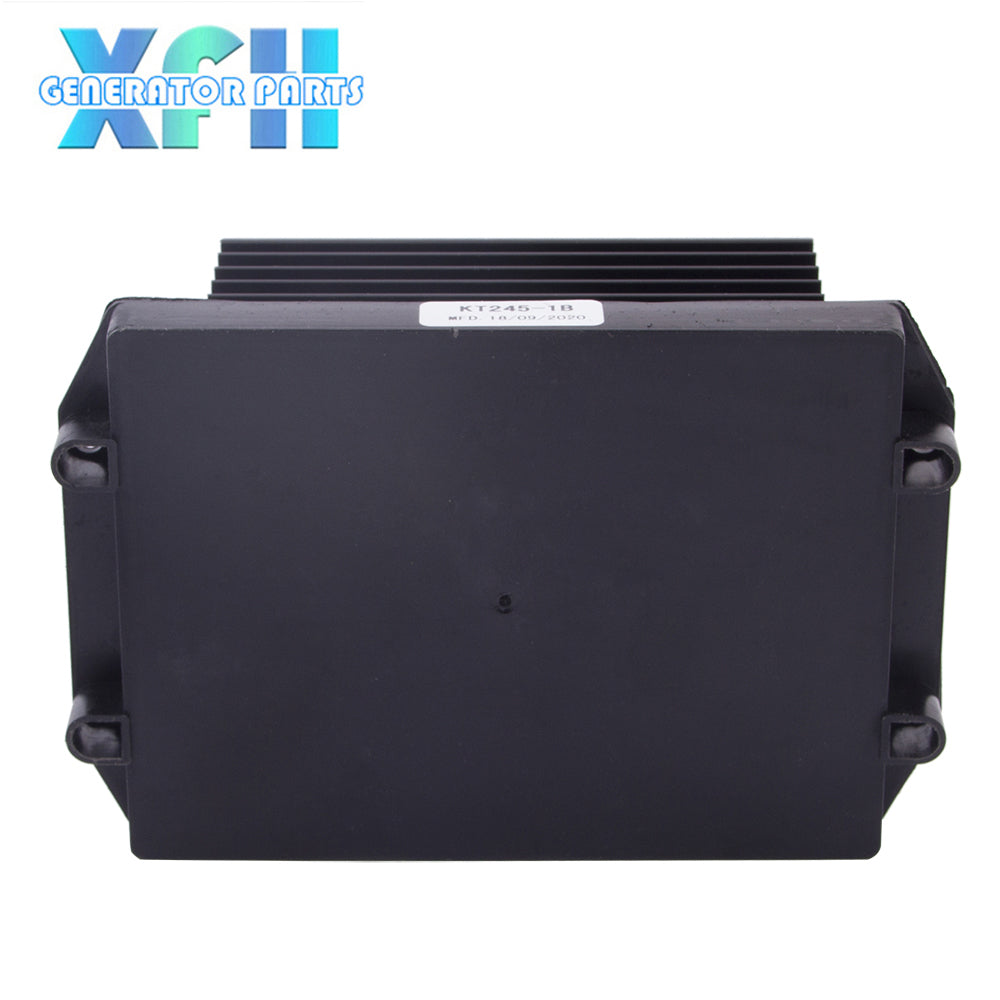

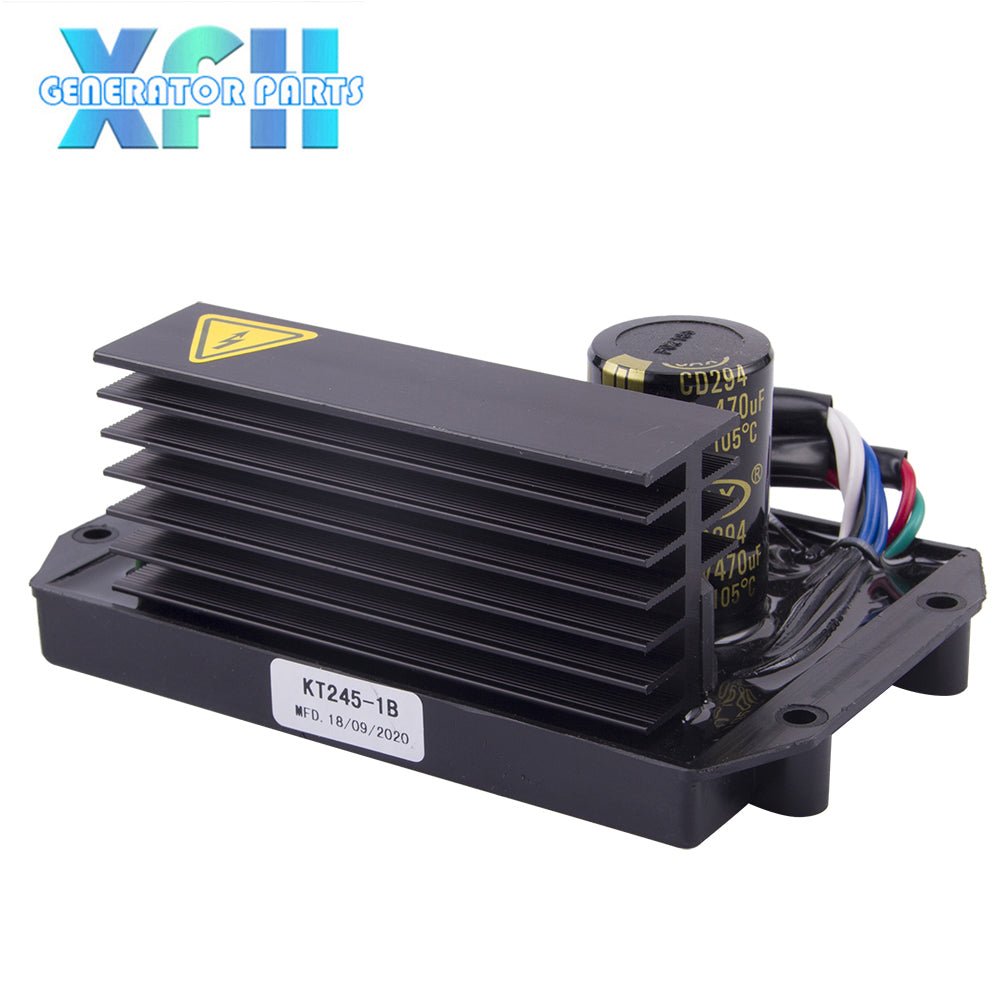

KT245-1B Single Phase AVR Automatic Voltage Regulator brush and brushless generator Stabilizer Adjuster module 8-15KW 8 wires

KT245-1B Single Phase AVR Automatic Voltage Regulator brush and brushless generator Stabilizer Adjuster module 8-15KW 8 wires

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Regular price $52.00
Regular price Sale price $52.00
Sale Sold out
Shipping calculated at checkout.

KT245-1B Single Phase AVR Automatic Voltage Regulator brush and brushless generator Stabilizer Adjuster module 8-15KW 8 wires

1. Matching parameters with generator
Number of phases: single phase
Secondary winding voltage: ≤180V
Sampling voltage: 110V±5.0V
Starting voltage: ≥1.5V
Excitation current: ≤4.5A
2. AVR parameters
Output voltage: 230V
No-load voltage adjustment range: 180V~280V
Applicable generator power: 8KW~15KW
Output voltage change rate: ≤1.5% (variable range can be adjusted according to generator parameters)
Voltage stability: ≤±0.5V
Temperature rise: ≤40℃
Output short circuit protection: Yes (recover 15S after protection)
Output overload and excitation overcurrent protection: Yes (recover 15S after protection)
3. Installation

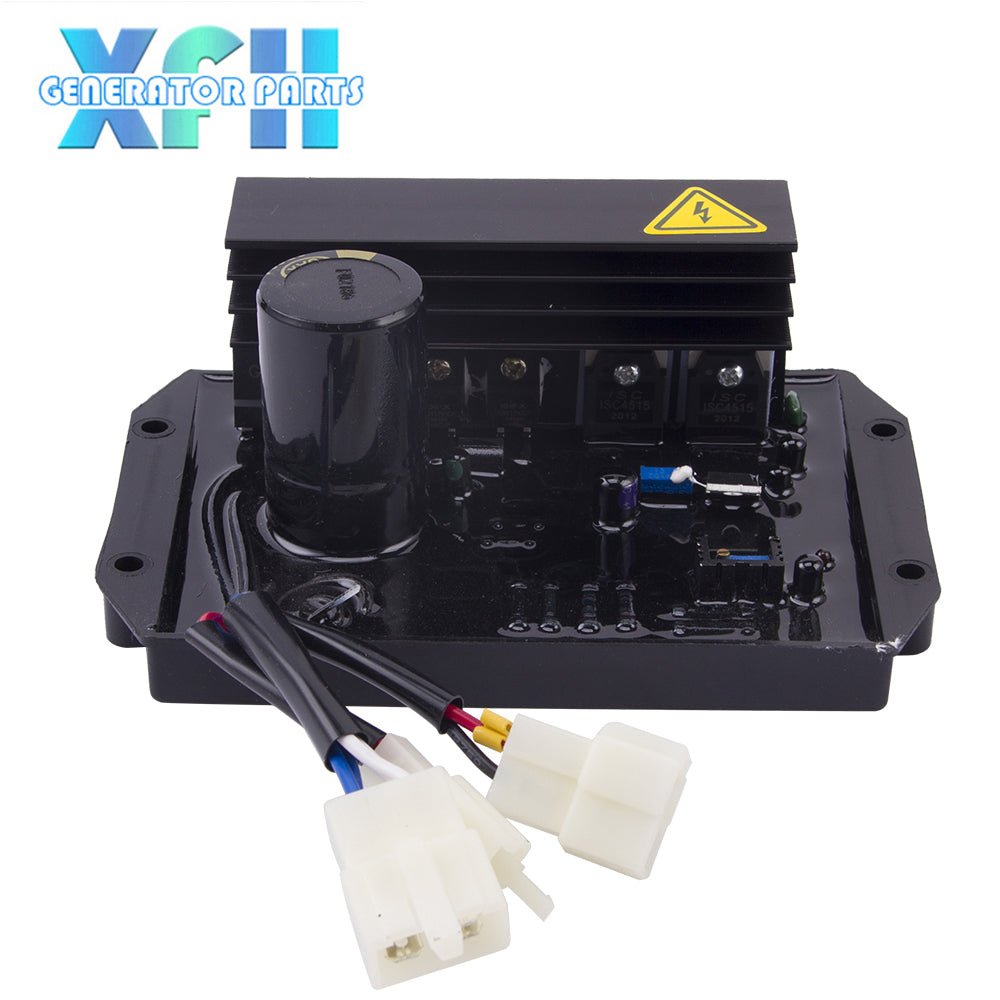

Connector:
Secondary winding, sampling: 70413-6.3-11; Excitation: 7021-6.3-11; External excitation: 7021-2.8-11

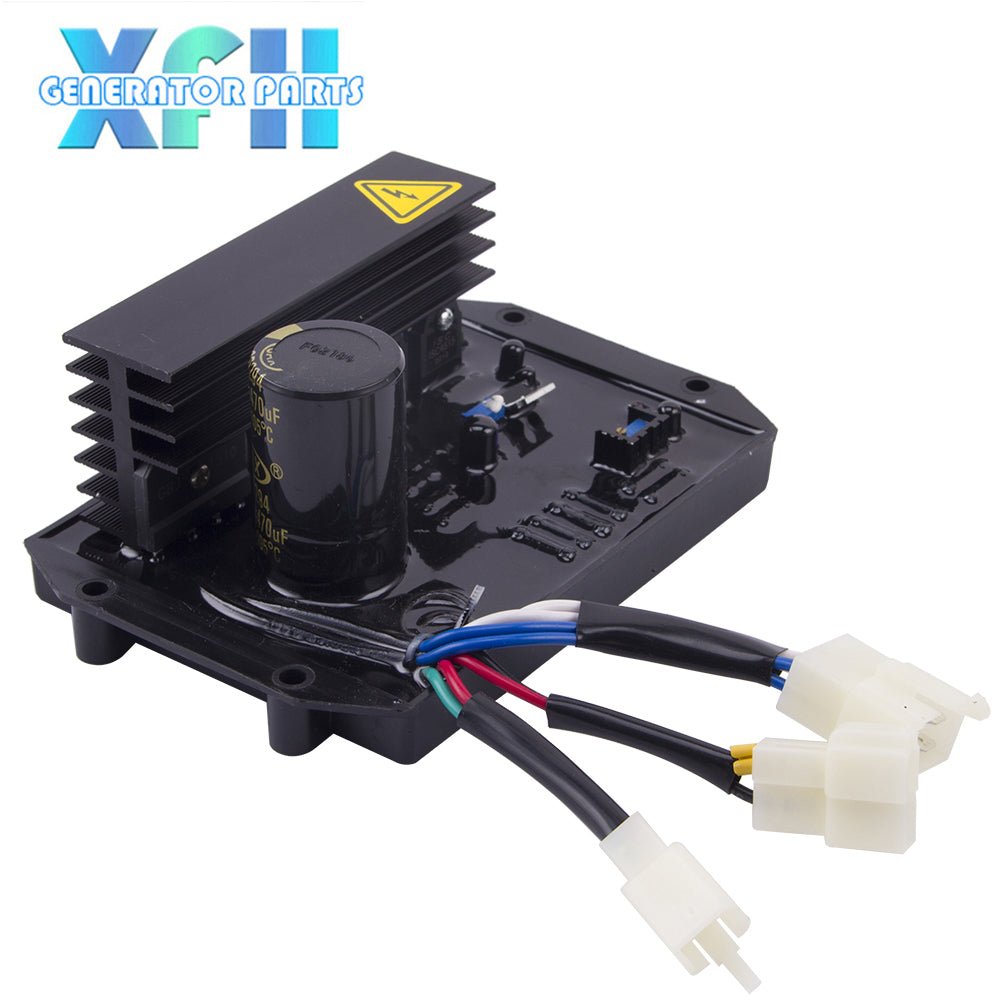

wire color:
Secondary winding: blue, sampling: yellow, excitation: red positive, white negative
clue:
Wire diameter: ∮0.75m㎡, lead length: 100mm
Mounting holes:
Aperture: ∮5.5mm, hole distance: 140*50mm

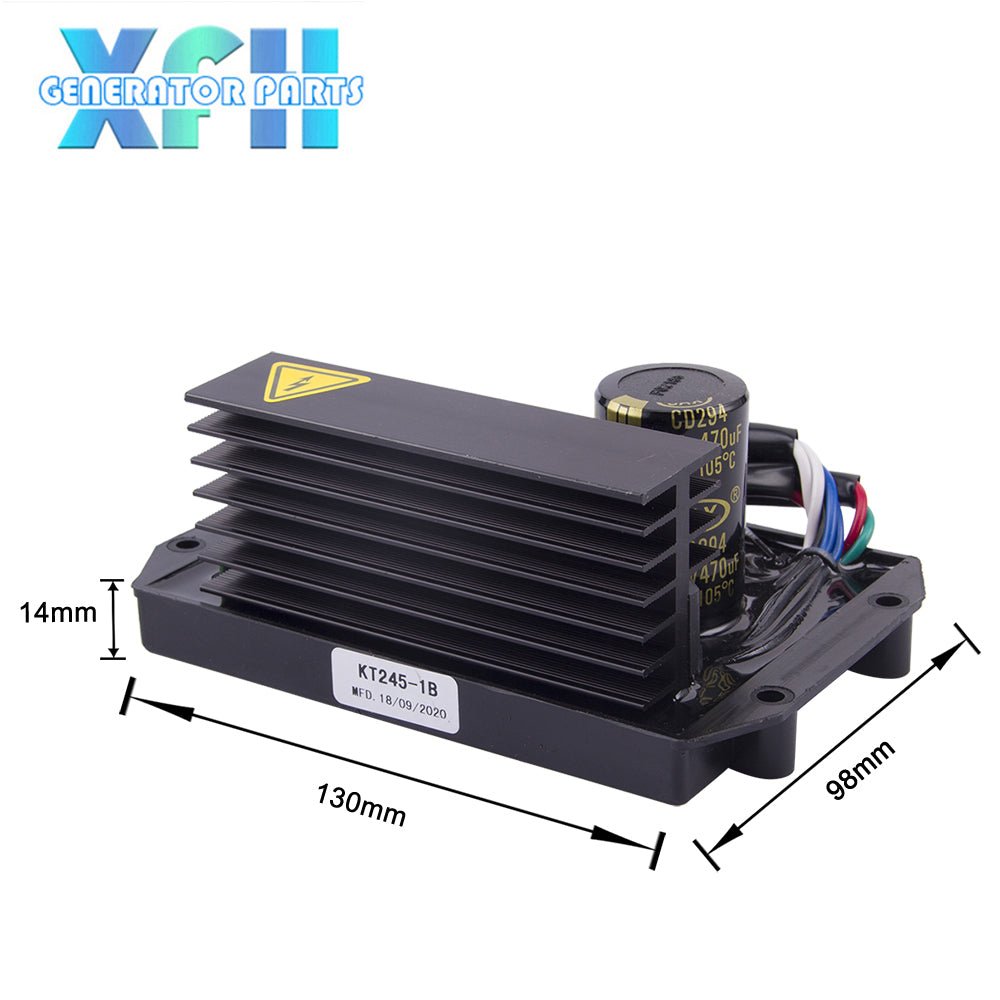

Dimensions:
Rectangle: Maximum size 150*98*60mm;
