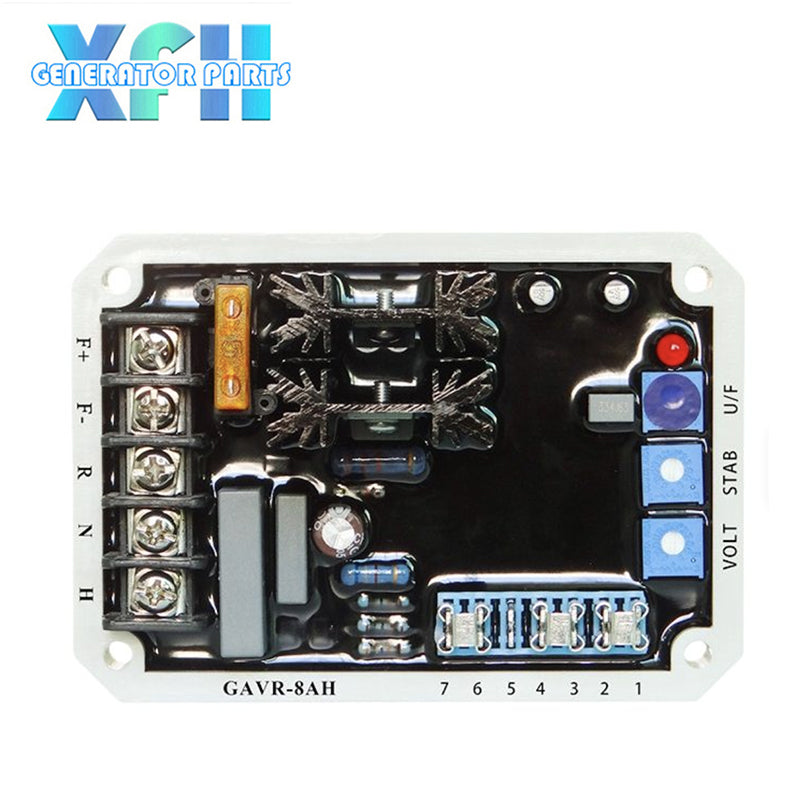

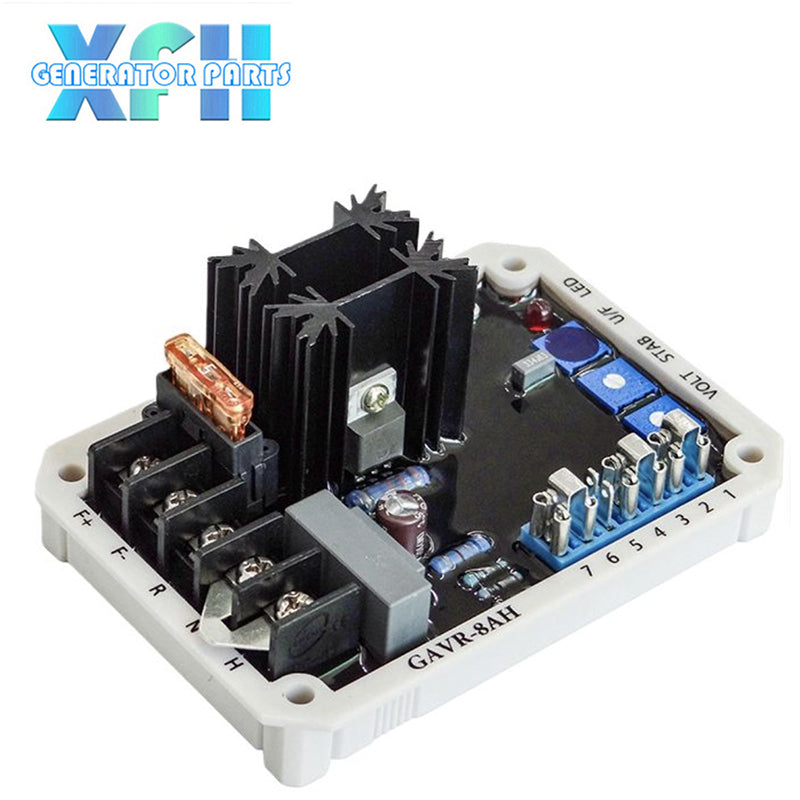

GAVR-8AH AVR Automatic Voltage Regulator Control Panel Universal Power Stabilizer for Diesel/Gasoline

Universal Brushless Generator Automatic Voltage Regulator 8A AVR

Gavr-8A Universal 8Amp 1/2 Wave Self Excited Dip-Switch Progmmable avr
Voltage Regulation < ±1%
220/440VAC Programmable Input
Rugged Compact Desigh
Soft Start Voltage Ramping
With Under Frequency Roll Off Protection
EMI Suppression
Built-in High Capacity 8Amp Fuse

Sensing input Voltage
110/220/400VAC , 1 phase 2 wire
Power Input voltage
100-260VAC , 1 phase 2 wire
Output voltage
max 90 VDC at 240VAC input
Current
Continuous 3 A , intermittent 5A for 10secs
Resistance
Min.15 ohm , Max 100ohm
Voltage Build-up
residual voltage at avr terminal >5VAC
Voltage Regulation
<±1% with 4% engine governing
Operating Temperature
(-40°C to +60°C
Storage Temperatue
(-65°C to +85°C
External Volts Adjutment
±7% with 1k ohm 1 watt trimmer
EMI Suppression
Internal electromagnetic interference filtering
Unit Power Dissipation
Max.8 watt
Under Frequency Protection
60Hz system presets knee point at 55Hz

50Hz system presets knee point at 45Hz
Dimensions

107mmL*82mmW*50mmH
