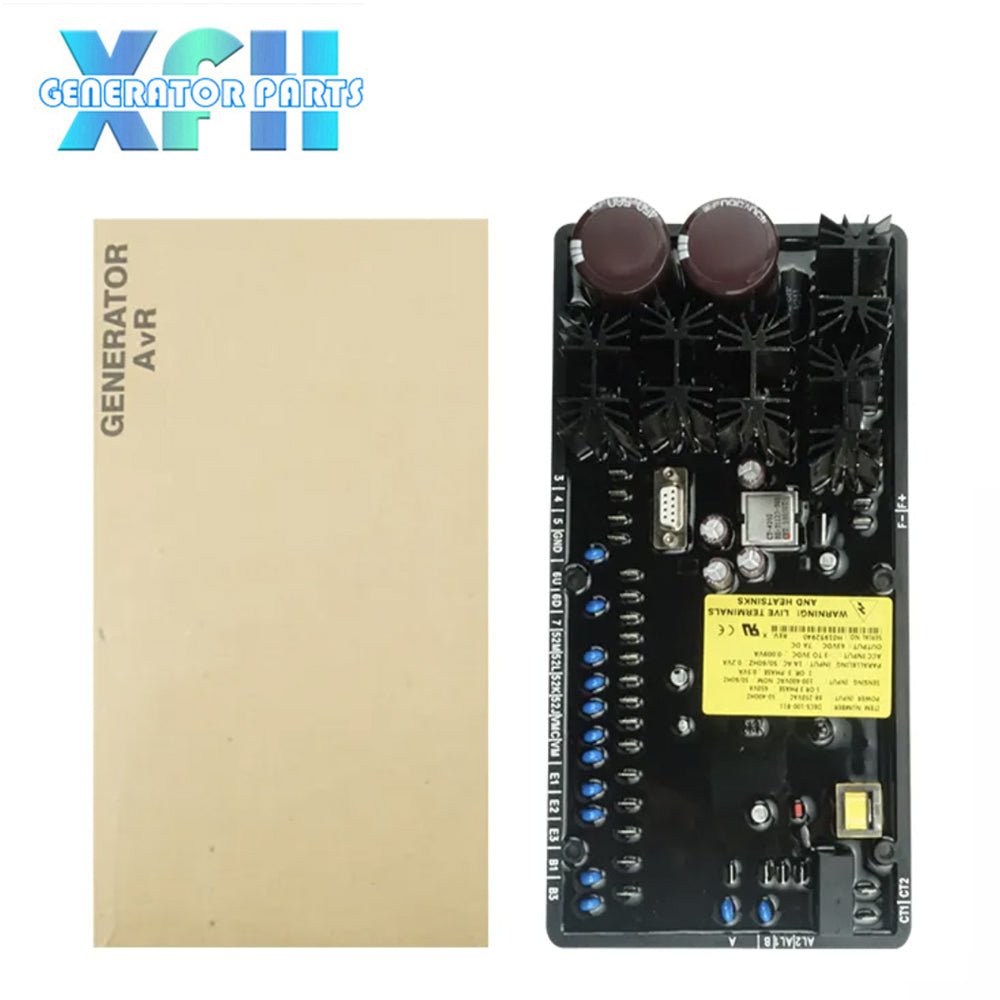

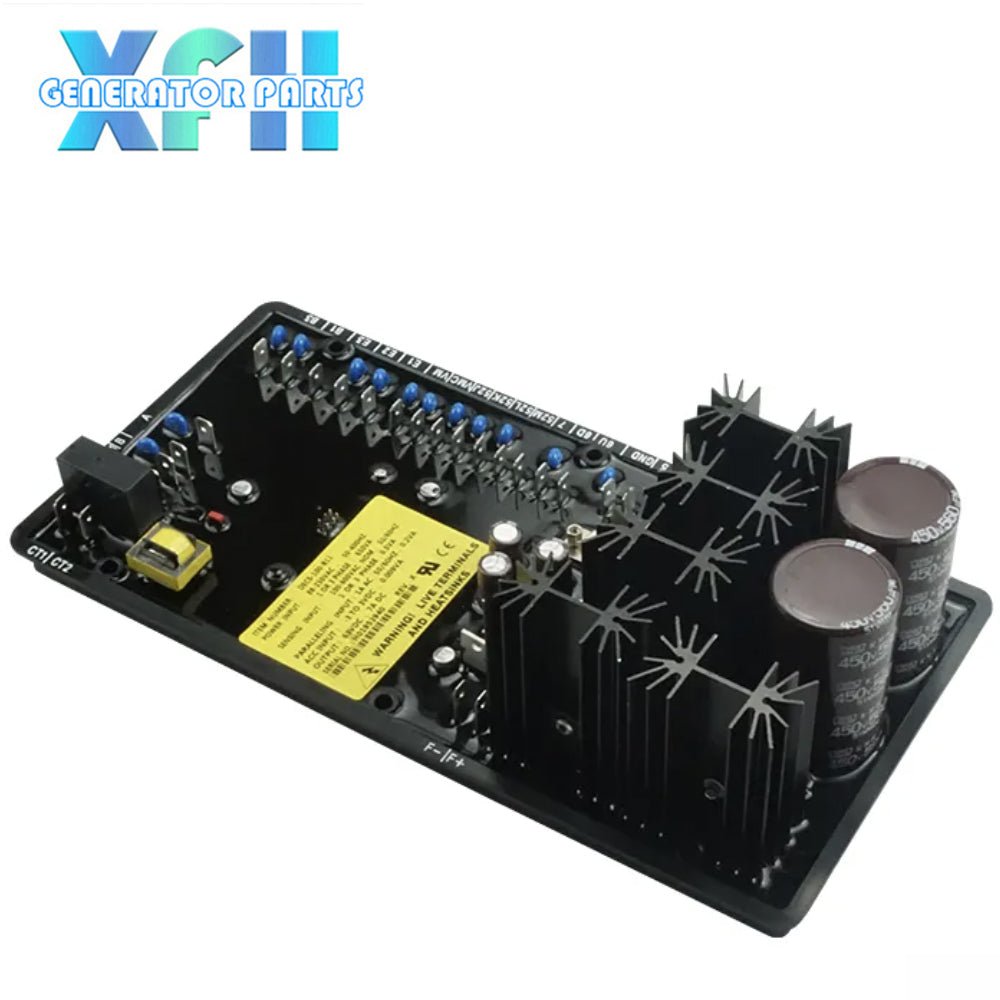

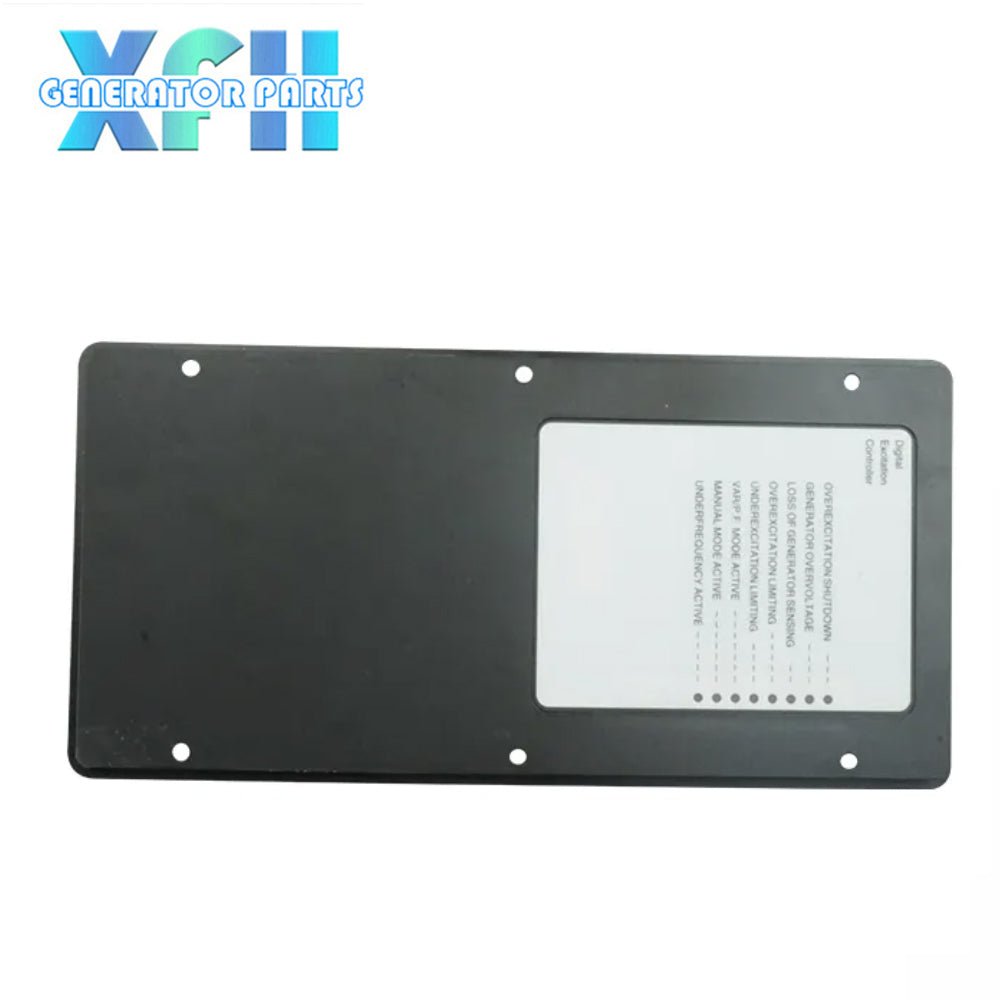

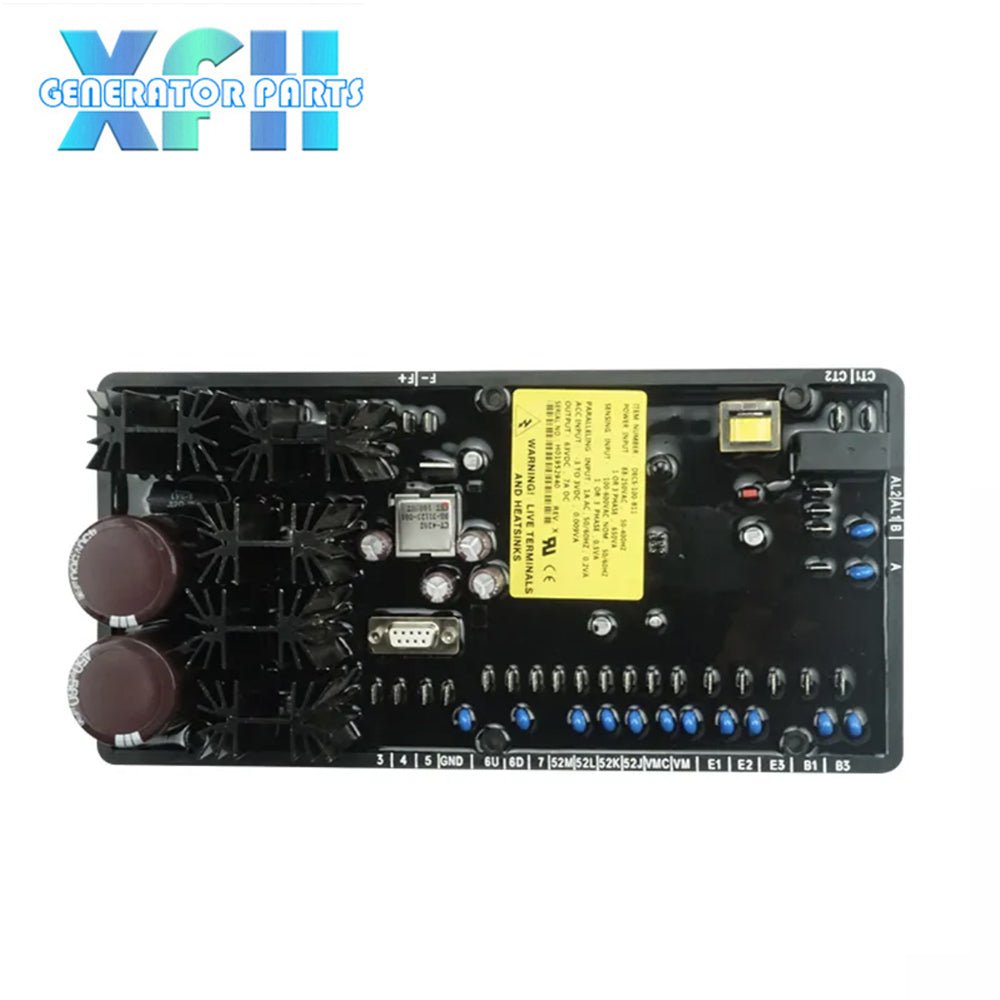

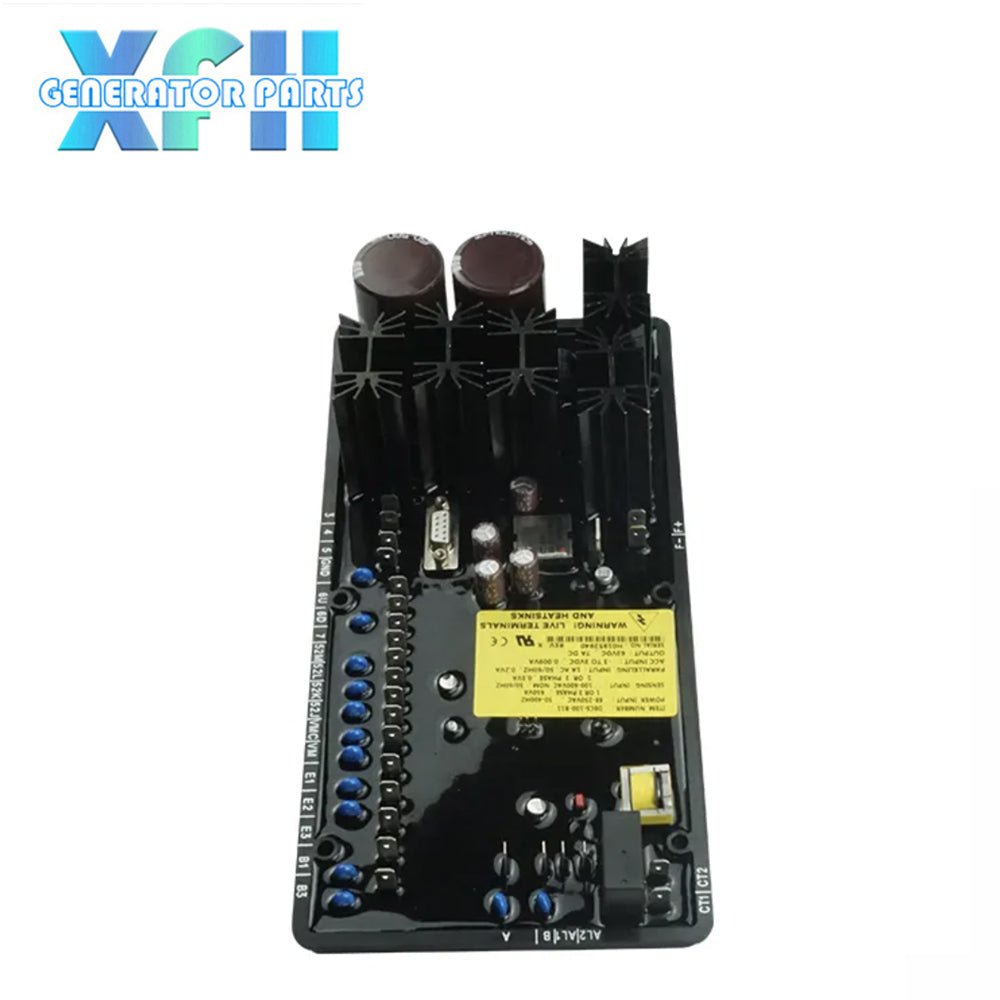

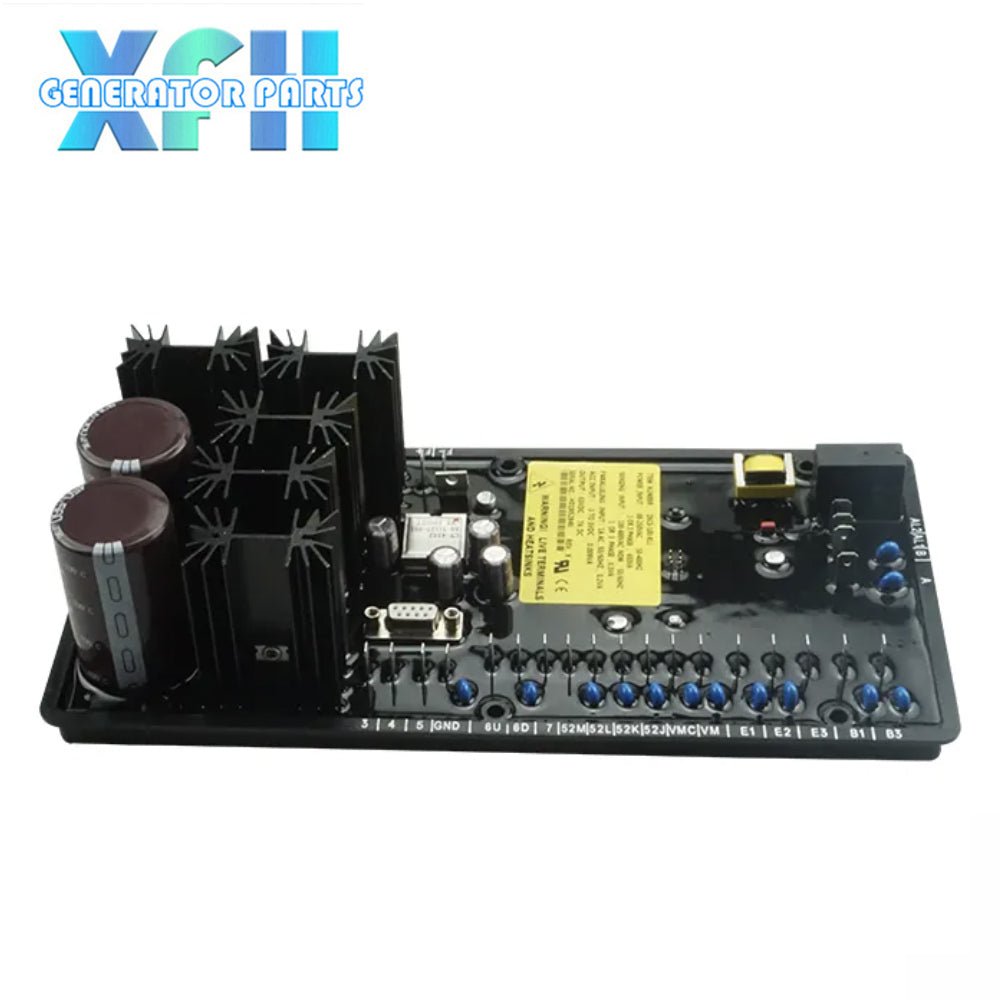

Diesel Engine Control System Generator AVR DECS 100 Automatic Voltage Regulator AVR DECS-100-B11

Diesel Engine Control System Generator AVR DECS 100 Automatic Voltage Regulator AVR DECS-100-B11

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Regular price $586.00
Regular price Sale price $586.00
Sale Sold out
Shipping calculated at checkout.

40W Diesel Diesel Generator Parts Voltage Regulator AVR DECS100-B11 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Product Name
DECS100-B11
SENSING/POWER INPUT

Voltage
88-250VAC
Frequency
50/60 Hz Jumper Selectable
MAGNETIC FIELD OUTPUT

Voltage
Max 95 Vdc at 240VAC Input
Current
Continuous 12A
PRESSURE REGULATING ACCURACY
<+/-1%RMS with 4% engine governing
