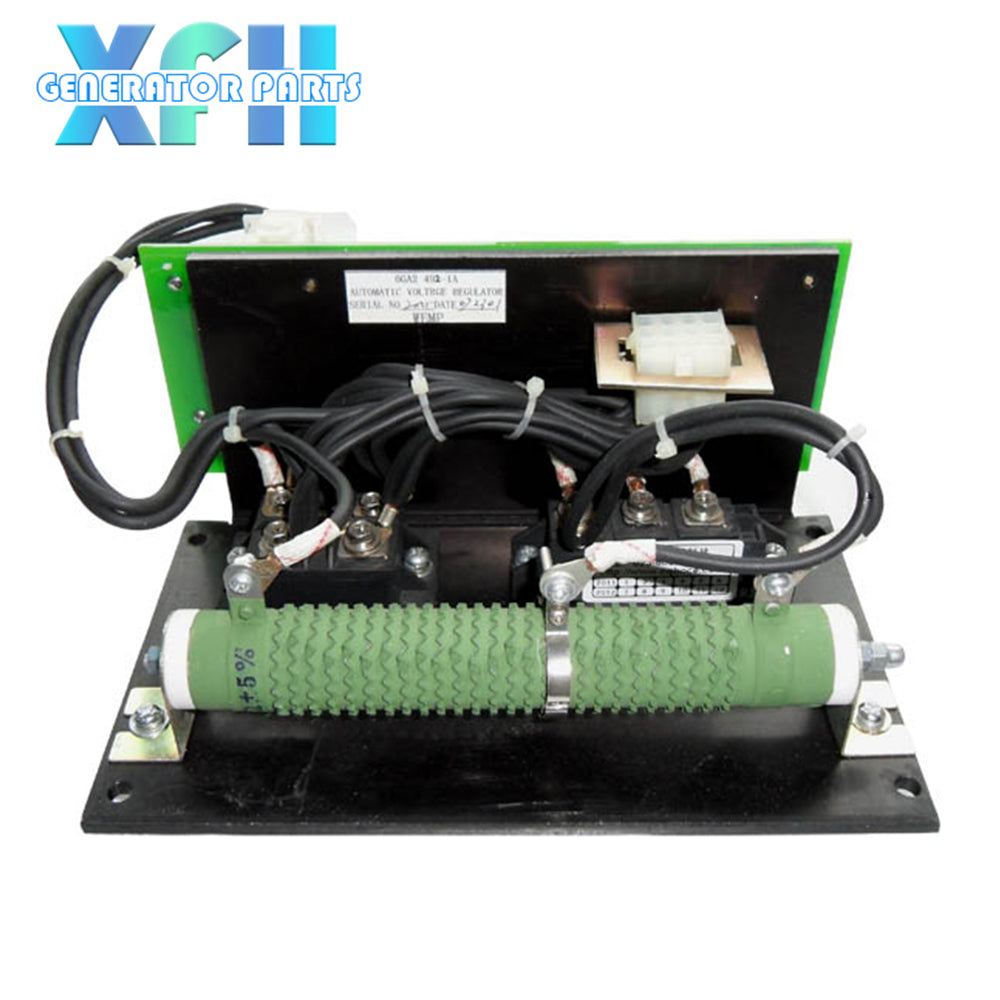

Brushless AVR 6GA2-492-1A Brushless Generator Automatic Voltage Regulator AVR 6GA2-492-1A

Brushless AVR 6GA2-492-1A Brushless Generator Automatic Voltage Regulator AVR 6GA2-492-1A

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

$399.00
$399.00
Sale Sold out
Shipping calculated at checkout.

Brushless Generator Automatic Voltage Regulator AVR 6GA2-492-1A is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Product Name
6GA2 492-1A
SENSING/POWER INPUT

Voltage
220/380/440Vac,1 phase ,2 wire
Freguency
50/60 Hz jumper selectable
MAGNETIC FIELD OUTPUT

Voltage
90Vad at 240 Vac
Current
Continuous 5A,intermittent 7A in 10 seconds

Features

* Voltage regulation < +/-1%

* Soft start voltage ramping

* Sensing voltage loss protection

* 120 or 240 Vac sensing, jumper selectable

* Under frequency roll off protection

* With under frequency LED indicator
