AVR AN-5-203 Factory Price Denyo AVR AN 5 203 Replaced Original Generator AVR
AVR AN-5-203 Factory Price Denyo AVR AN 5 203 Replaced Original Generator AVR
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Couldn't load pickup availability

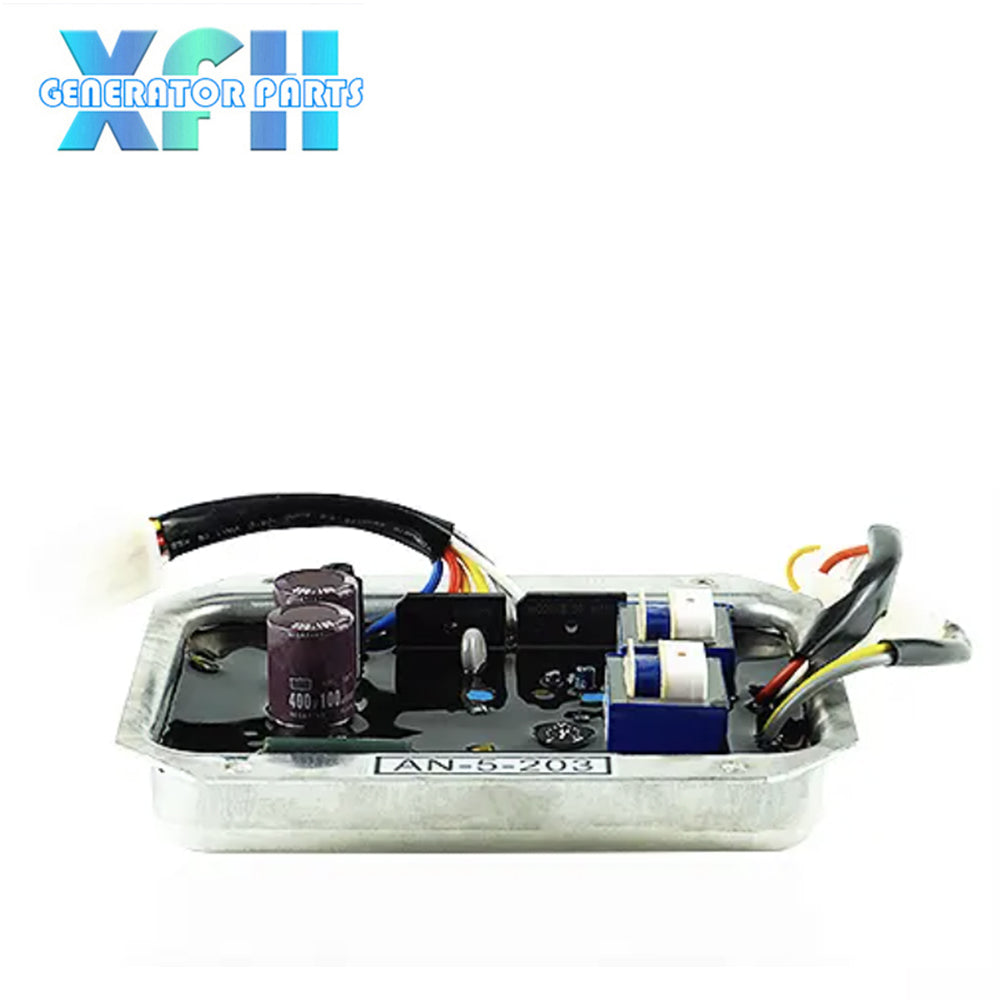

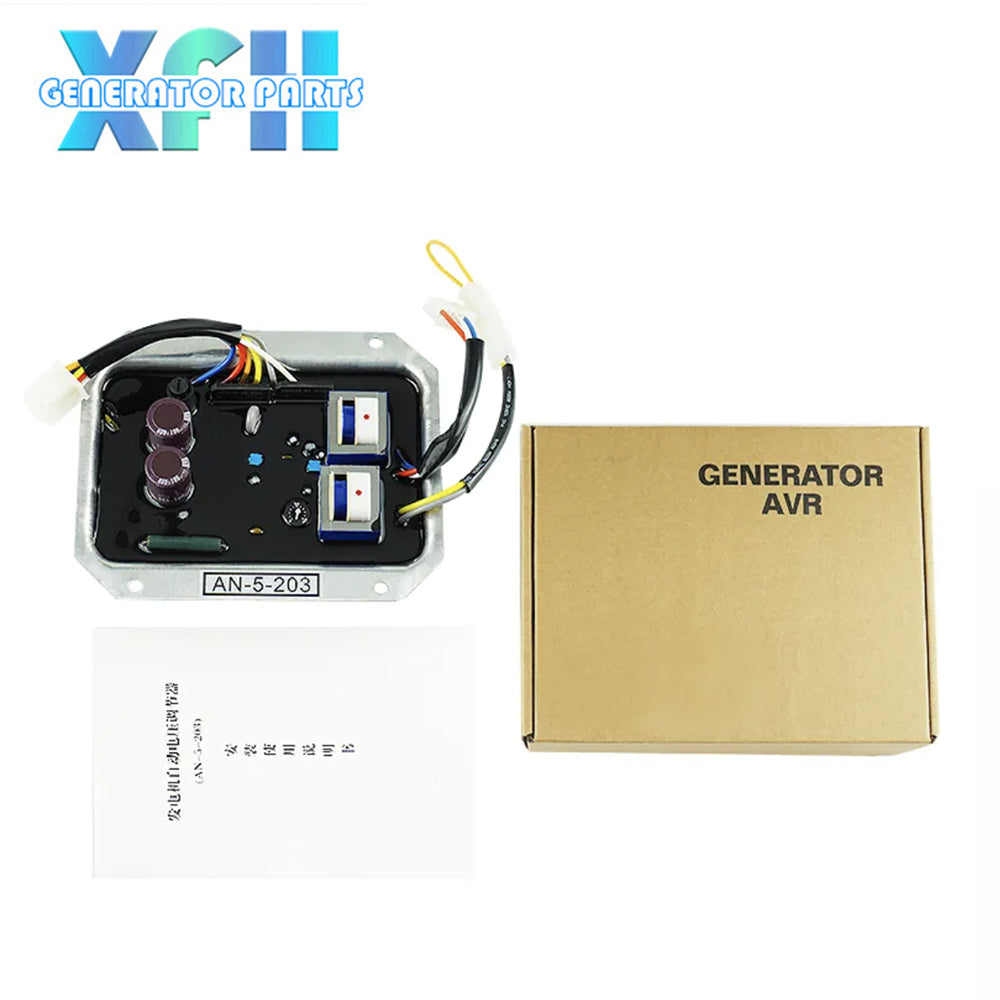

Generator AVR AN-5-203 for Generator china replaced is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
|
AVR Model
|
Appliance Genset
|
|
AN-5W-203
|
DLW-400, DCW-480, TLW-450
|
|
AN-5-201A
|
10ESX, 15SPX, 18ESX
|
|
AN-5-203
|
TLG-18SPY, DCA-13ESK, 15ESK,25SPK, 25ESK, 25ESI, 25SPI
|
|
NTA-4A-2SA
|
25SPX, 40SPX, 40ESX
|
|
NTA-5A-2TC
|
60ESI2, 75SPI
|
|
NTA-4A-2TC
|
NTA-4A-2TC
|
|
NTA-5A-2T
|
45SPI, 45ESI, 35SPK, 60SPI, 75SPI,125SPK3, 150SPK
|
|
NTA-5A-2DD
|
45ESI
|
|
NTA-4A-2DD
|
45ESI
|
|
NTA-5A-2DB
|
45ESI, 150SPM, 150ESK
|
|
NTA-5E-2T
|
180SPK2, 220SPK3, 300SPK3,400SPK2, 500SPK/M, 600SPK, 800SPK
|
|
NTA-5E-2TG
|
220SPK3, 500SPK, 800SPK
|
