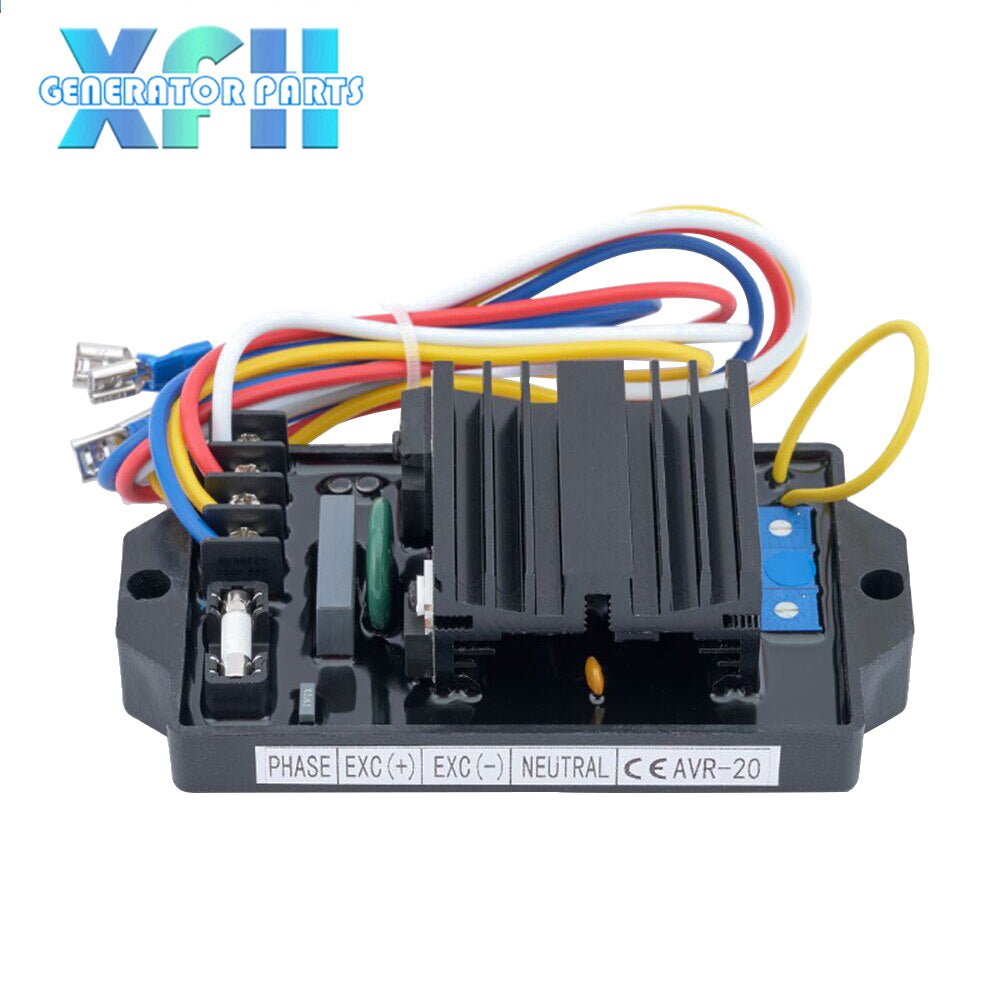

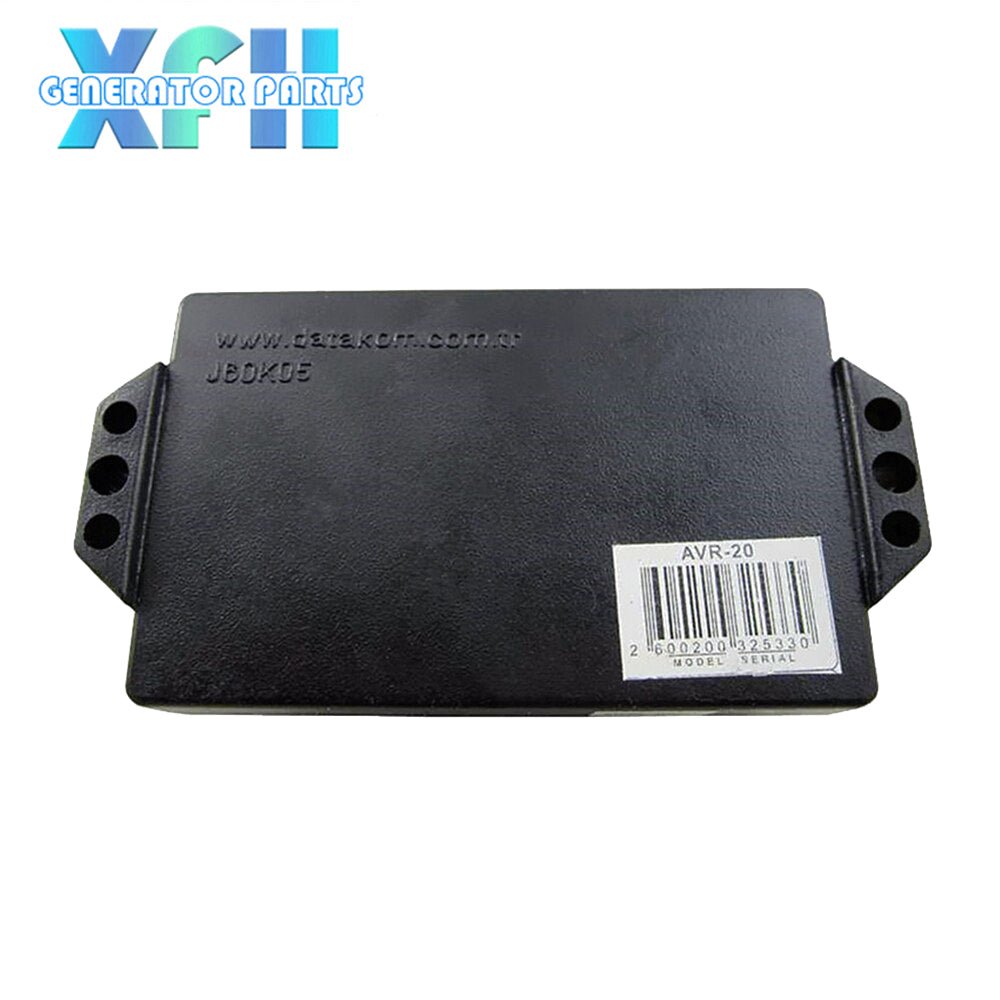

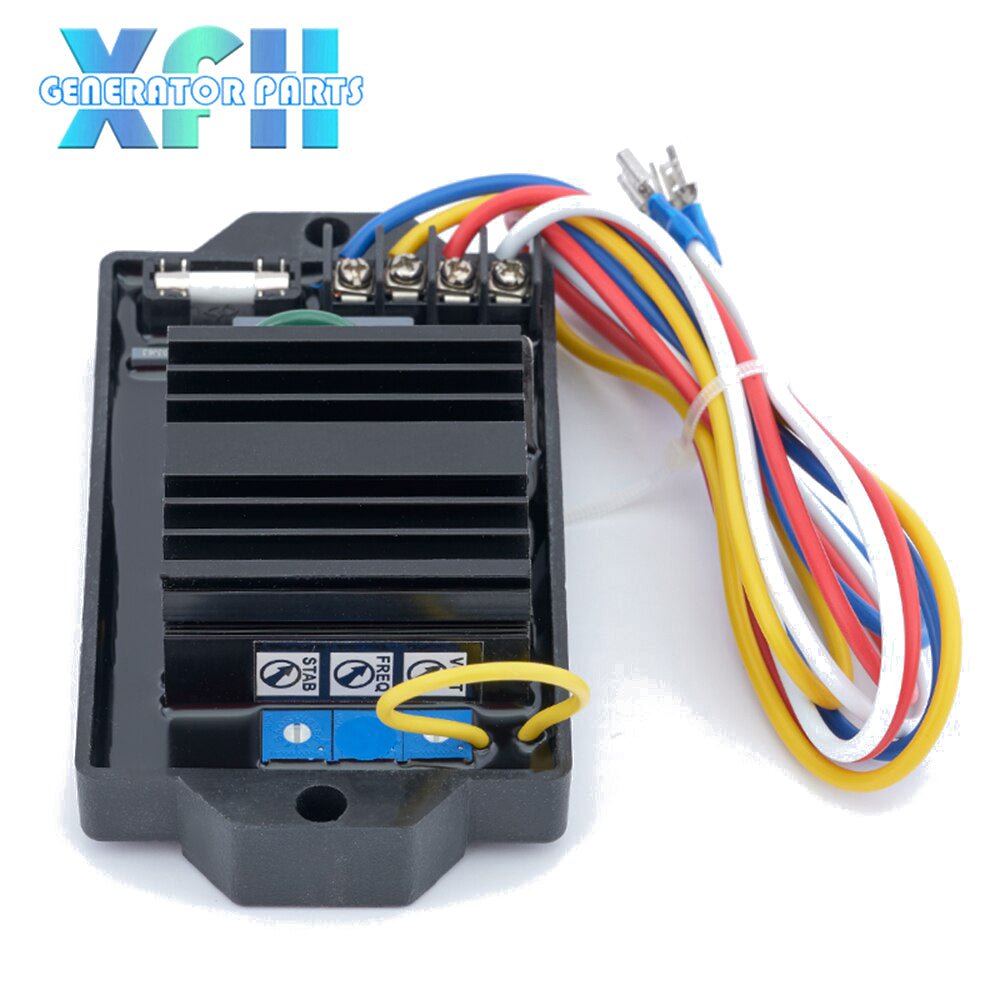

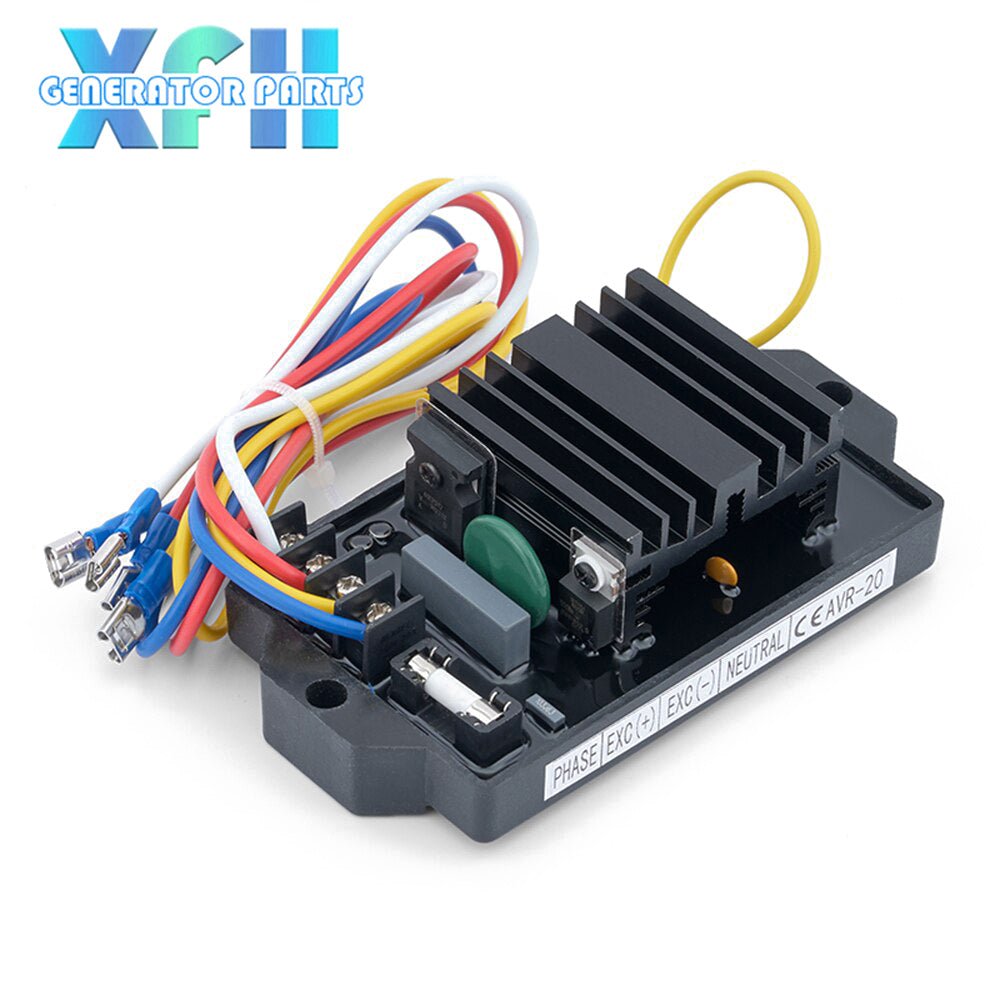

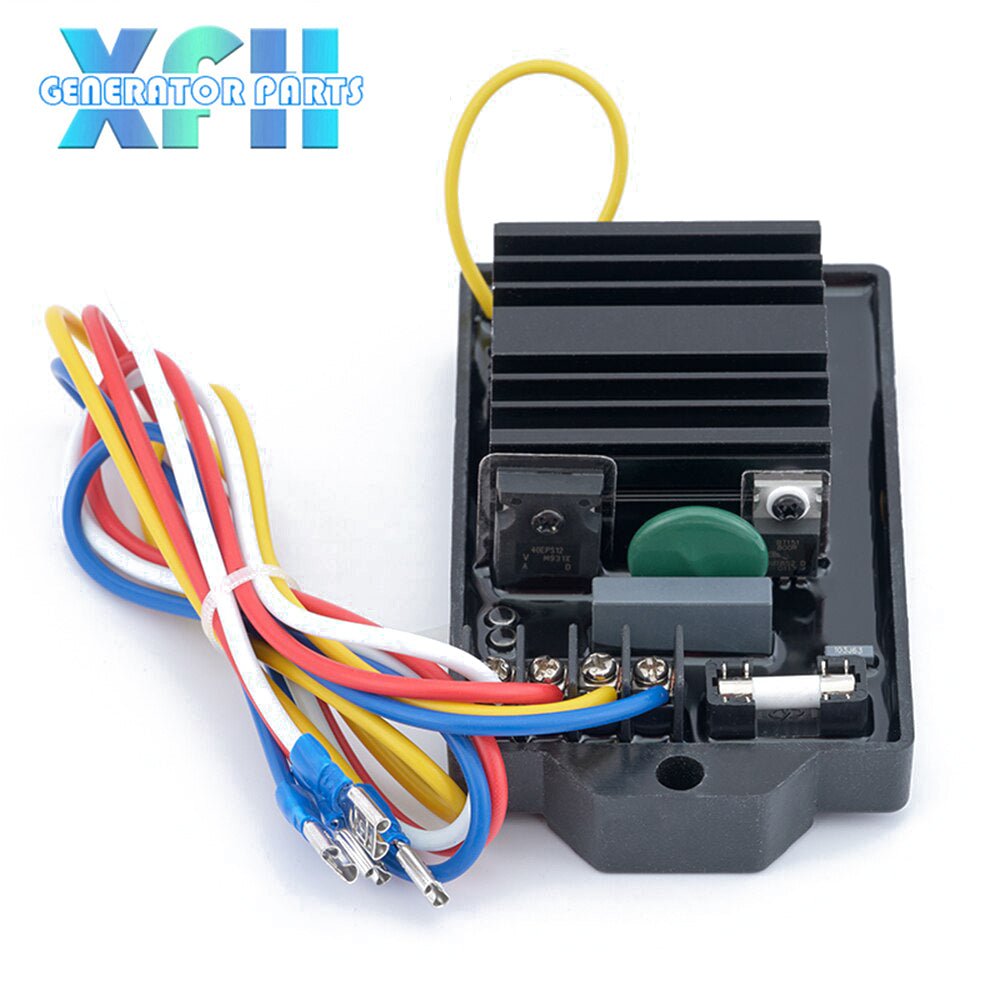

AVR-20 20A AVR Automatic Voltage Regulator Brushless Excitation Generator Stabilizer Control Module Diesel Genset Parts AVR 20A

AVR-20 20A AVR Automatic Voltage Regulator Brushless Excitation Generator Stabilizer Control Module Diesel Genset Parts AVR 20A

Test before shippment, 1 year warranty, pay safe with PayPal. Free Worldwide Shipping to 63 Countries. Tracking Number Provided. 100% Delivery Guarantee

$30.00
$30.00
Sale Sold out
Shipping calculated at checkout.
Phases:single phase
Voltage Adjustment Range:210-250 volts min
Frequency:50/60HZ
Frequency Protection Adj. Range:40-50HZ
Output Voltage:0-115 volts-DC at 230 volts
Output Current:20A continuous
Residual Voltage For Build Up:5 volts minimum
Regulation:+/-2% tyhristor
Power Output Stage: half wave tyhristor
Internal Fusing:10A (fast acting fuse)
Operating temp:-10"C (14F) TO 60"C (140”F)
Storage temp:-20"C (-4F) TO 80"C (176”F)
Maximum humidity:95% non-condensing
Dimensions:125*68*35mm(L*W*H)
Fixing centers:11 5mm, 2xM6
