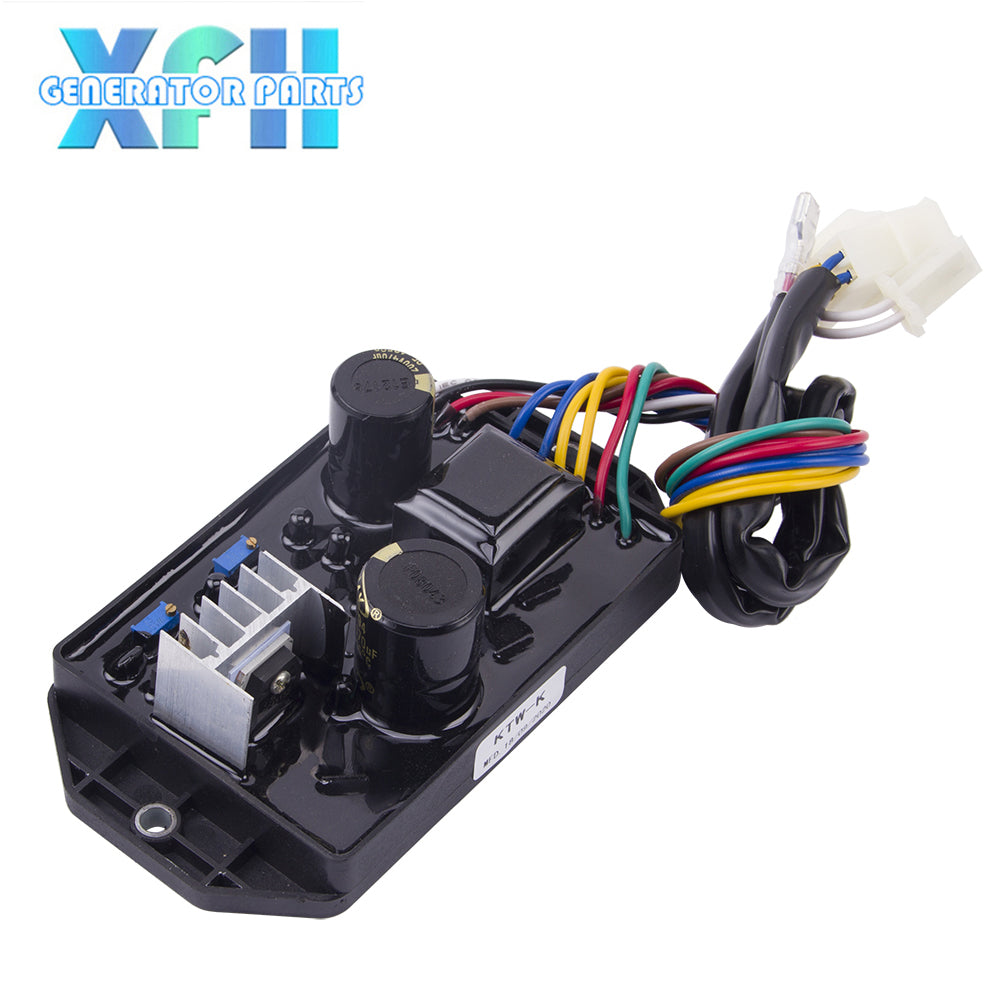

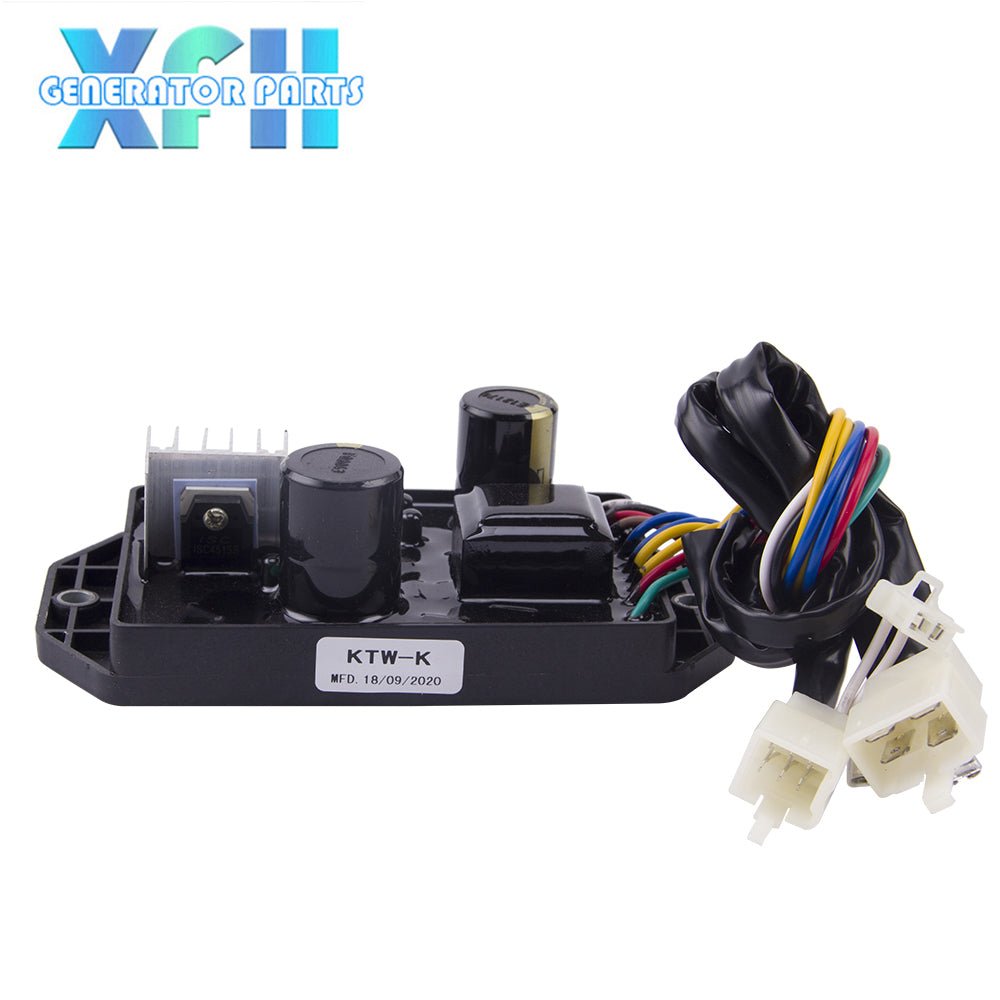

5KW KTW-K AVR Welder Diesel Generator Automatic Voltage Regulator Control Module Stabilizer Single Phase

5KW KTW-K AVR Welder Diesel Generator Automatic Voltage Regulator Control Module Stabilizer Single Phase

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

1 total reviews

Regular price $37.00
Regular price Sale price $37.00
Sale Sold out
Shipping calculated at checkout.

5KW KTW-K AVR commone use Welder/Diesel/Gasoline Generator Automatic Voltage Regulator Control Module Stabilizer Single Phase


1. Matching parameters with generator

Generator phase number: single phase

Secondary winding voltage: ≤130V

Generating sampling voltage: 18V±1.5V

Electric welding sampling voltage: 30MV~90MV

Starting voltage: ≥1.5V

Excitation current: ≤2.8A

No-load output voltage: 230V

No-load voltage adjustment range: 185V~285V

Electric welding machine current: 60A~200A

Power generation: 4.5KW

Protection function: open circuit, short circuit


2. installation

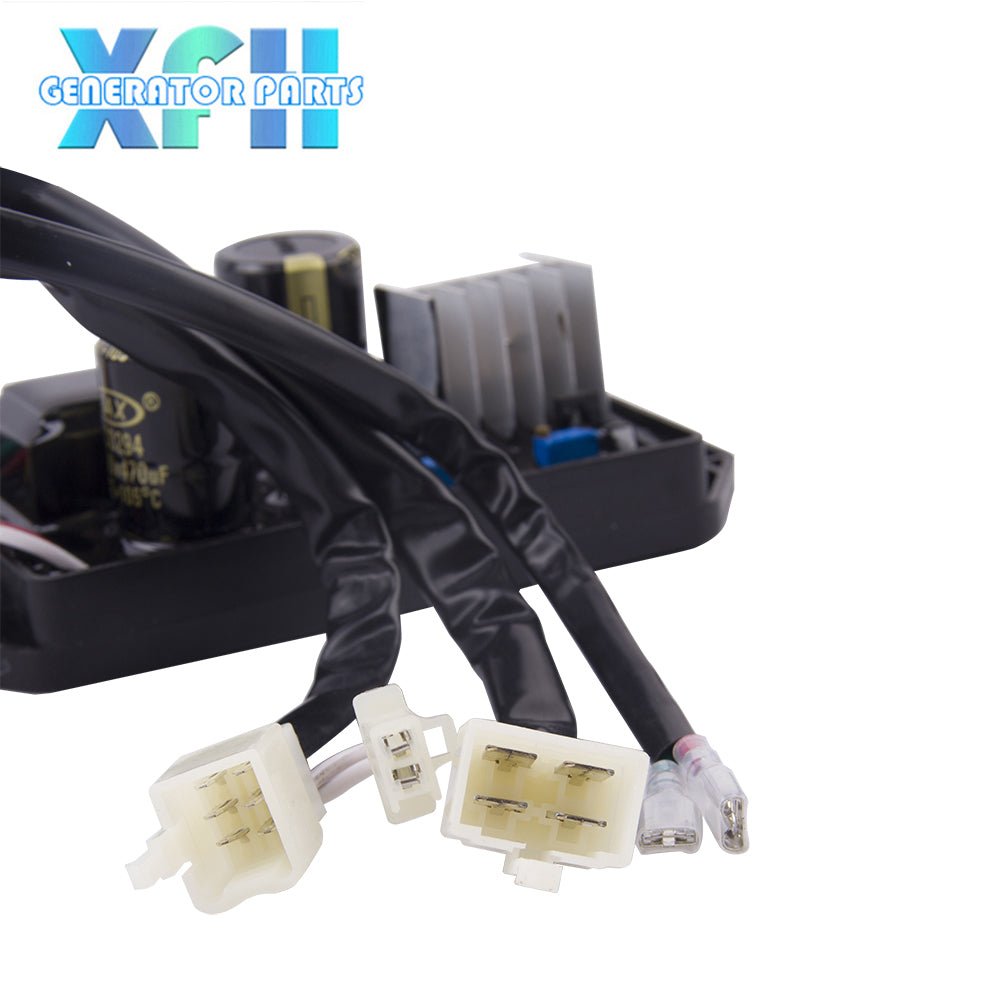

Connector:

Secondary winding, sampling: 70413-6.3-11; Excitation: D6.3; Welding sampling, arc starting capacitance: 7061-2.8-11

Connector:

Secondary winding, sampling: 70413-6.3-11; Excitation: D6.3; Welding sampling, arc starting capacitance: 7061-2.8-11

clue:

Wire length: 400mm; wire diameter ∮0.75m㎡

Thread color:

Secondary winding: blue; power generation sampling: yellow; excitation: red positive, green negative; welding sampling: white positive, black negative; arcing capacitor lead: red positive, gray negative.

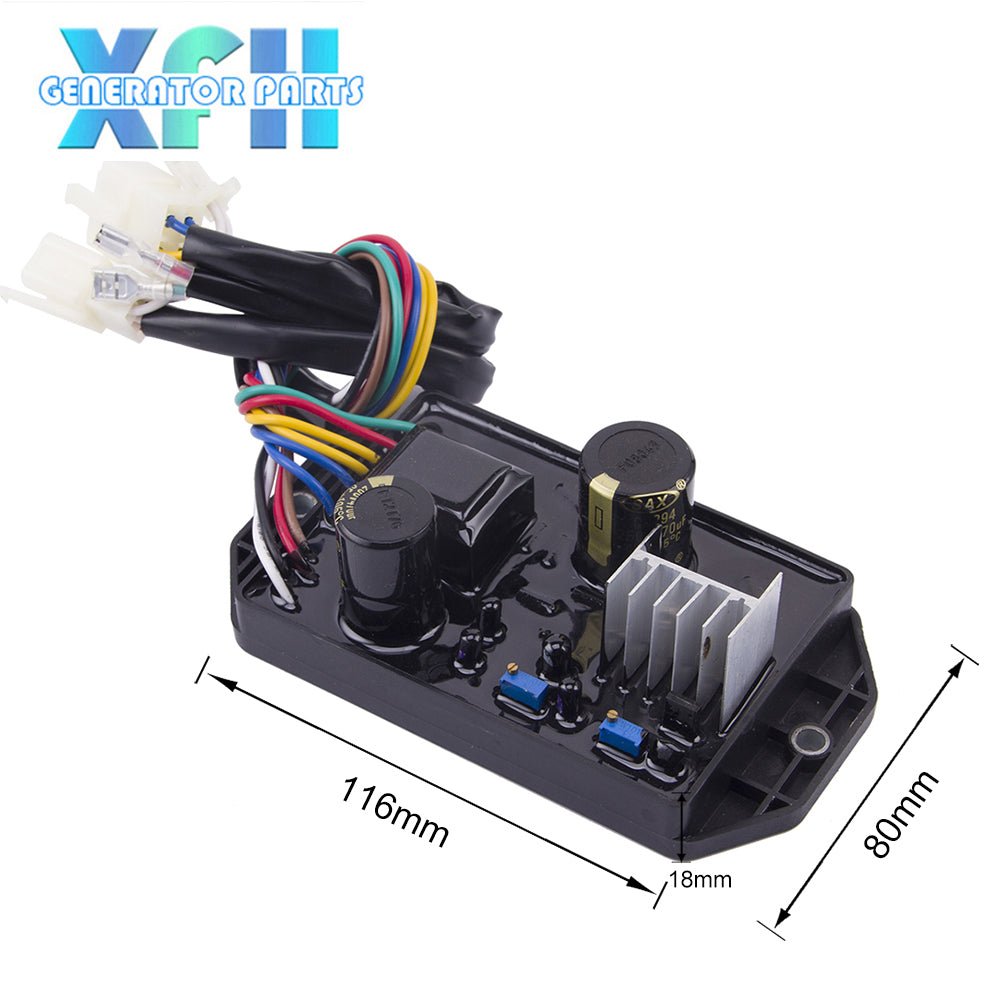

Dimensions:

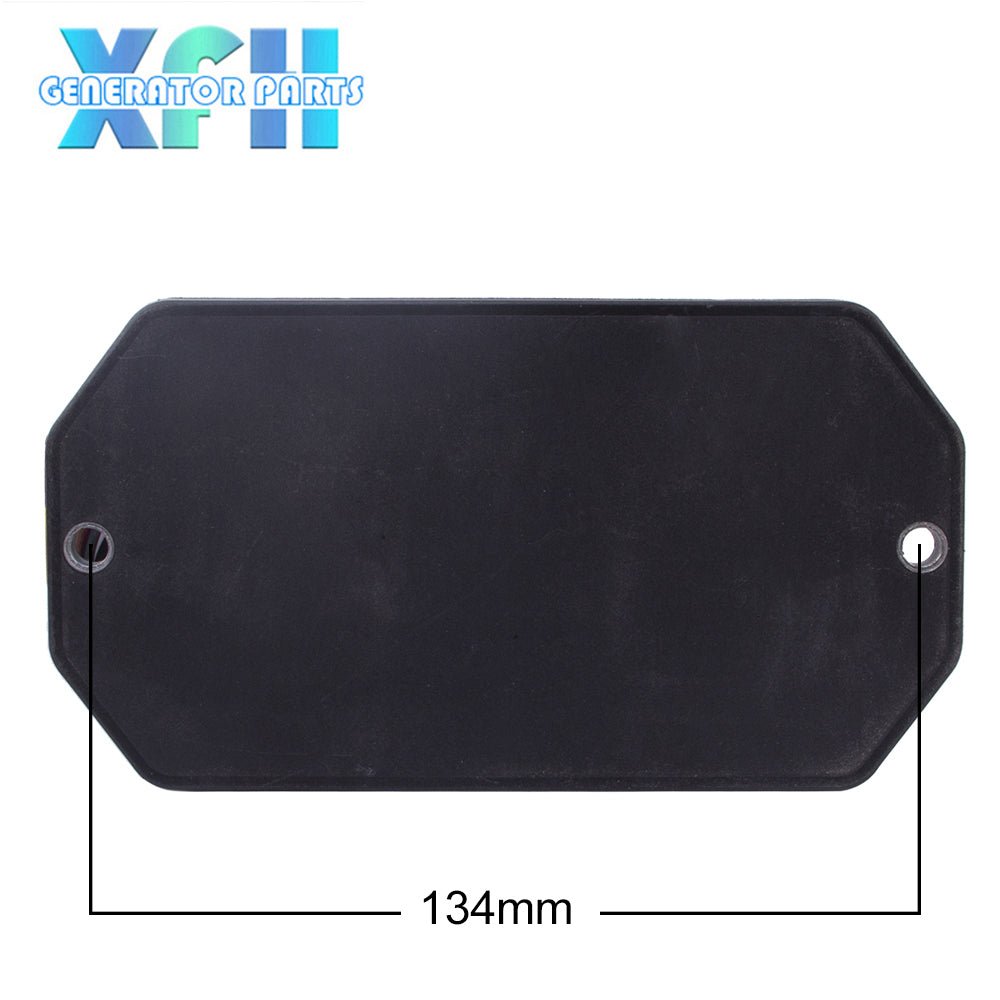

Rectangle: Maximum size 148*78*50mm; aperture: ∮6mm; hole distance: 132mm.
