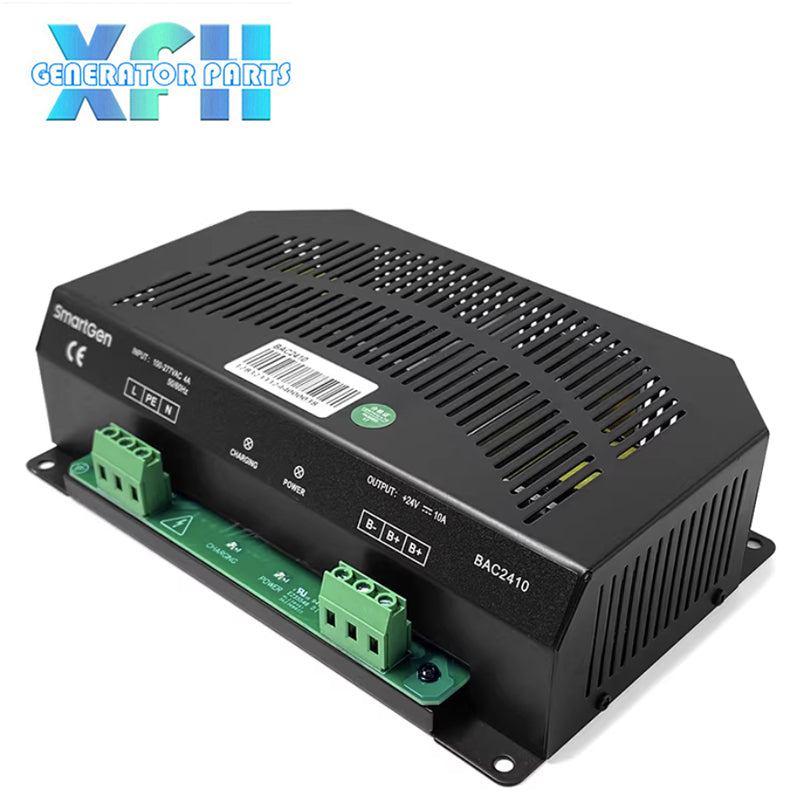

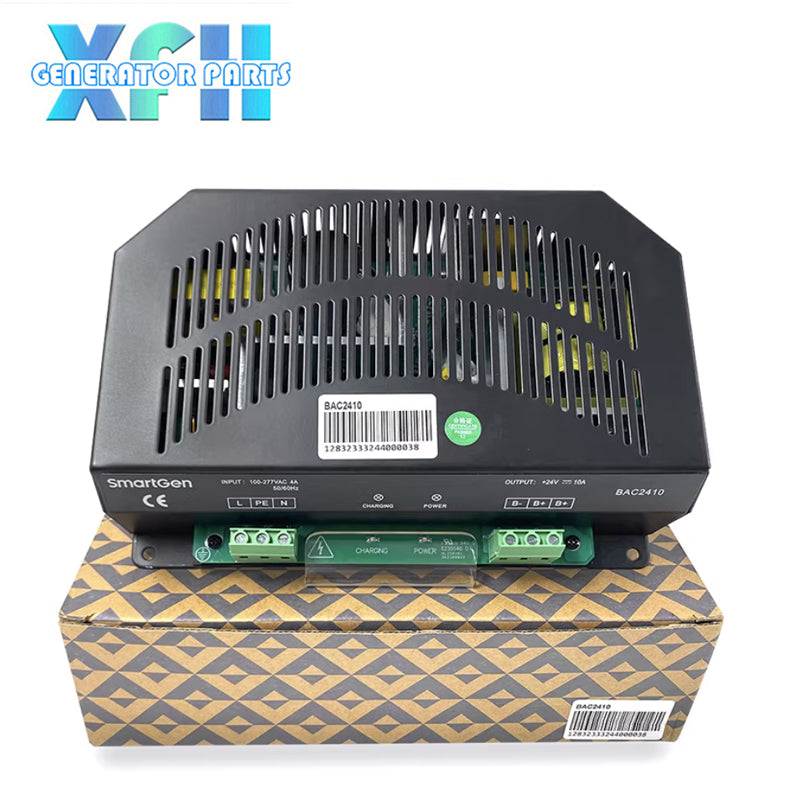

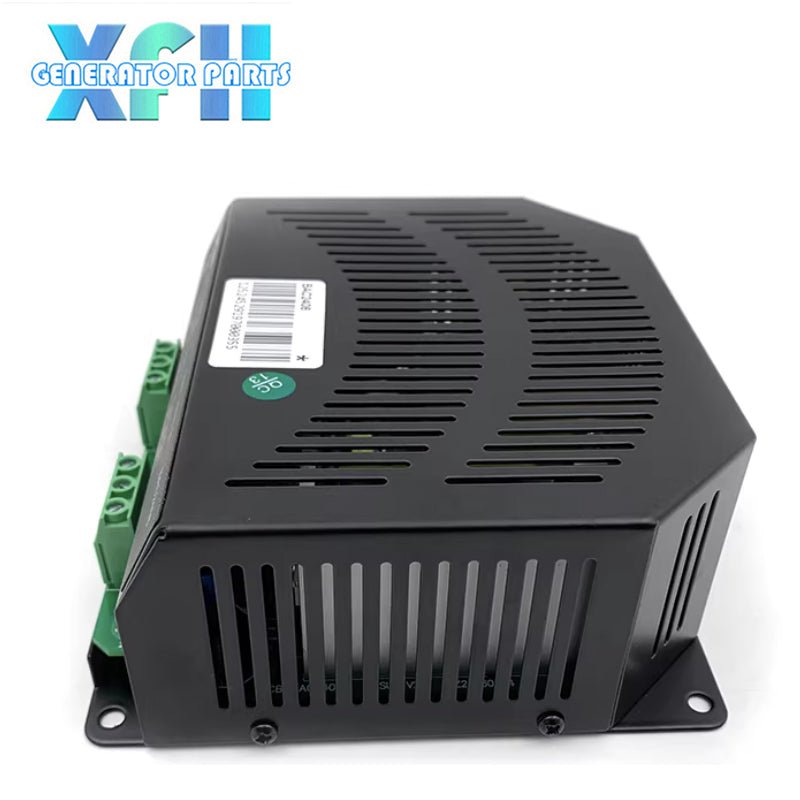

SmartGen 24V 10A Two-Stage Float Charger for Lead-Acid Batteries BAC2410

SmartGen 24V 10A Two-Stage Float Charger for Lead-Acid Batteries BAC2410

اختبار قبل الشحن، ضمان لمدة عام، الدفع بأمان عبر PayPal. شحن مجاني إلى 63 دولة.

$99.00
$99.00
أُوكَازيُون نفذ
يتم احتساب الشحن عند الخروج.

Battery Charger BAC2410

  • Float charging + two-stage charging + power factor compensation + 24V 10A
  • Input voltage range: AC 100–277V
  • Dimensions (mm): 205.5 × 131 × 55
  • Mounting dimensions (mm): 190 × 120
  • Operating temperature: -30℃ ~ +55℃
  • Weight: 1.15 kg

SmartGen BAC 24V Series Float Charger – Selection Table

Model Input Voltage Output Max Current Charging Mode Protection Typical Application
BAC2402VE 100–277V AC 24V DC 2A Two‑stage (CC + CV) Float Charge Short circuit 24V small gensets, long‑term float charge
BAC2403N 90–280V AC 24V DC 3A Two‑stage Float Charge Short circuit, reverse polarity, overcharge 24V standard generator batteries
BAC2405 90–280V AC 24V DC 5A Two‑stage / Multi‑stage Short circuit, reverse polarity, overcharge 24V medium‑capacity batteries, faster charging
BAC2408 90–280V AC 24V DC 8A Two‑stage / Multi‑stage Short circuit, reverse polarity, overcharge 24V high‑capacity batteries
BAC2410 90–280V AC 24V DC 10A Two‑stage / Multi‑stage Short circuit, reverse polarity, overcharge 24V large gensets & high‑current fast charge
BAC2410D 90–280V AC 24V DC 10A Two‑stage / Multi‑stage Short circuit, reverse polarity, overcharge Dual‑purpose / enhanced version for heavy‑duty use
BAC2410BST 90–280V AC 24V DC 10A Two‑stage / Multi‑stage Short circuit, reverse polarity, overcharge Special / backup power & telecom battery systems



Quick Analysis

  • All are 24V lead‑acid battery float chargers with wide AC input.
  • BAC2402VE / 2403N: For small to medium 24V systems, low current, long‑term floating.
  • BAC2405 / 2408: Medium to high current for faster charging of bigger batteries.
  • BAC2410 / 2410D / 2410BST: 10A high‑power versions for large generators, industrial and backup power.
