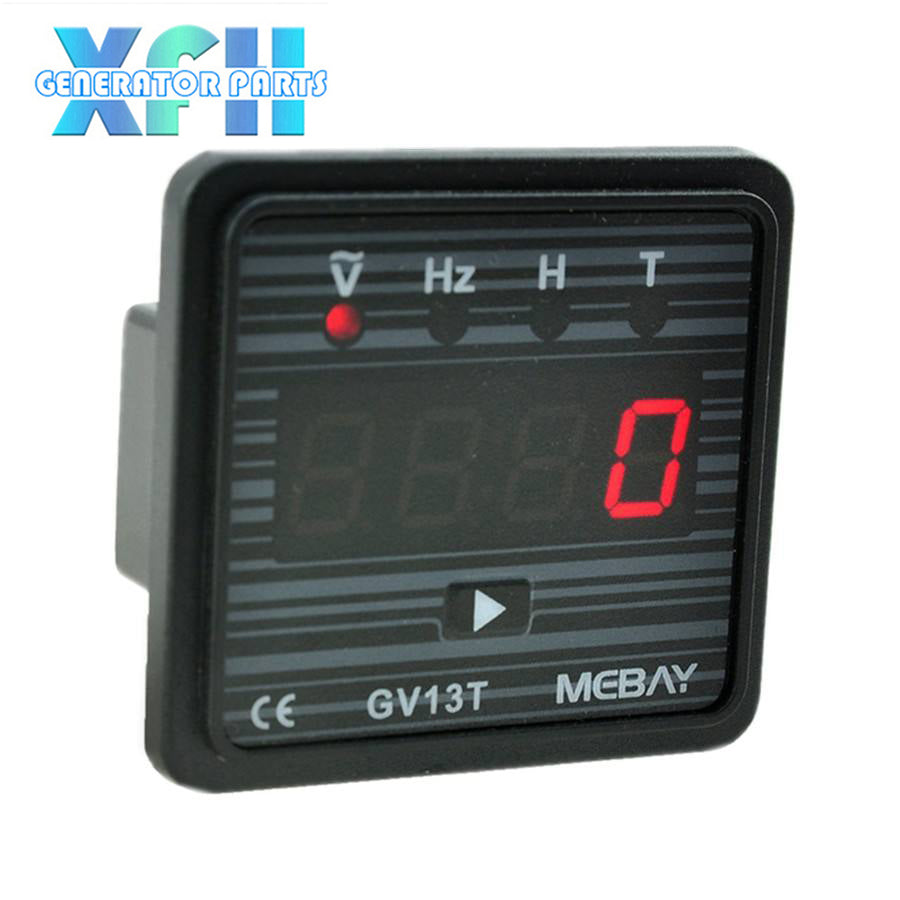

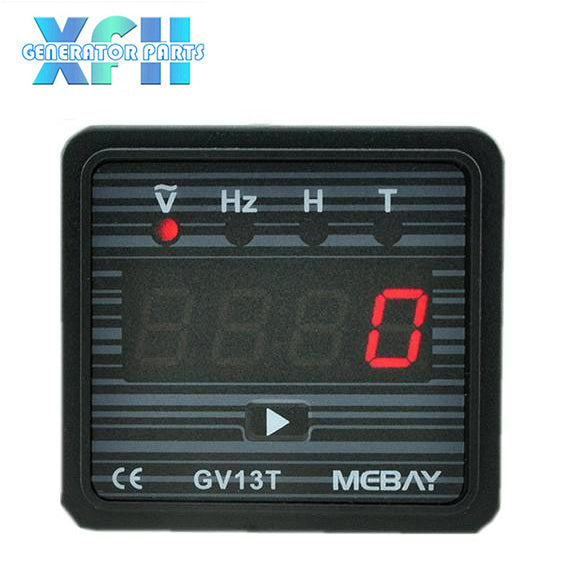

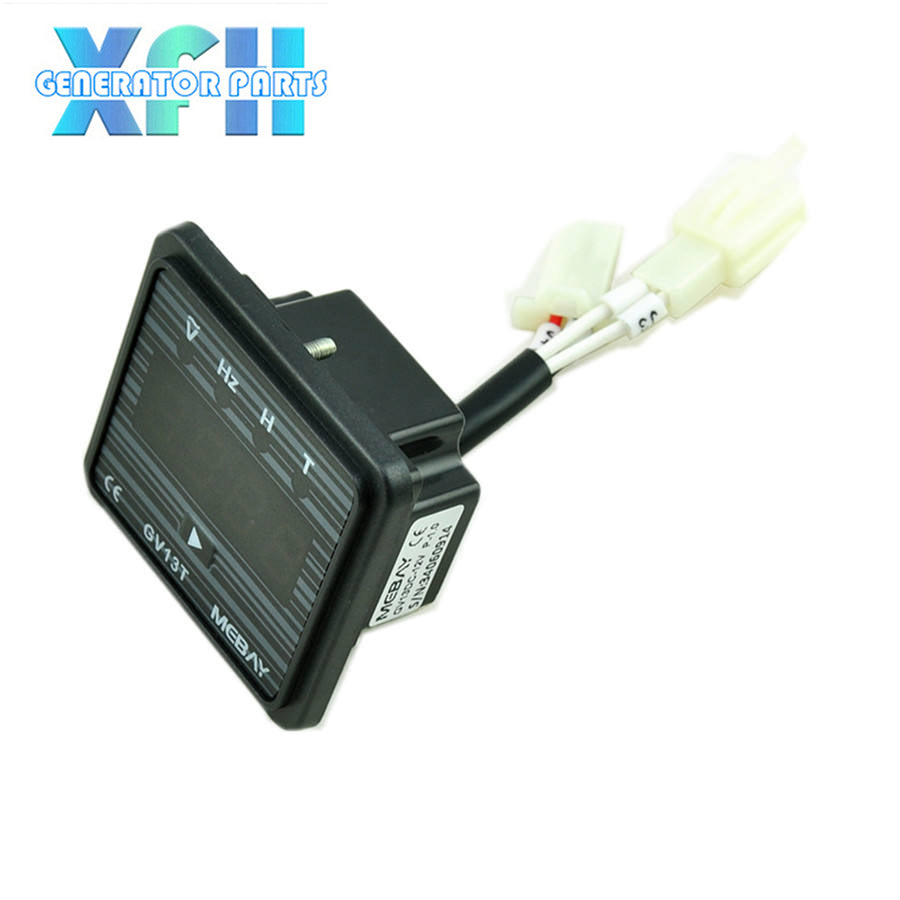

Mebay Genset Multifunction Meter GV13DC Voltmeter Voltage Meter DC Power Supply

GV13DC-12 is one light and low price-orientated module used for checking and demonstrating Voltage, Frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.

Features

  Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;

  Results shown by 4-position digital LED tube

  Self-recycling of parameters

  with Page Turning Buttons

  DC voltage supply

Parameter demonstration

  Phase voltage

  Frequency

  Cumulative running time

  Current run time

Measuring range and accuracy

  Voltage: ac30-450v, error ≤± 1%

  Frequency: 20-70hz, error ≤± 0.5%

  Cumulative operation time: 0-9999h

  Current running time: 0-999.9h

Specification

  Working power: DC8～36 V

  Consuming power:MAX：1 W

  Temperature: -30℃ ～ 70℃

  Size (W * H * D)：58mm * 54mm * 41mm

  Installation Size(W * H): 47mm * 37mm

  Weight:55G
