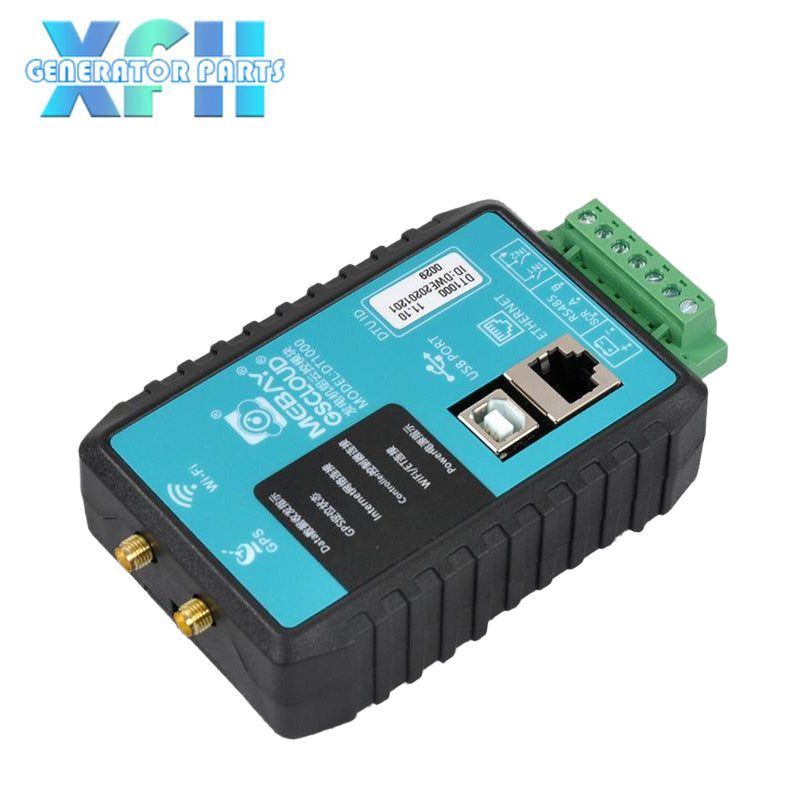

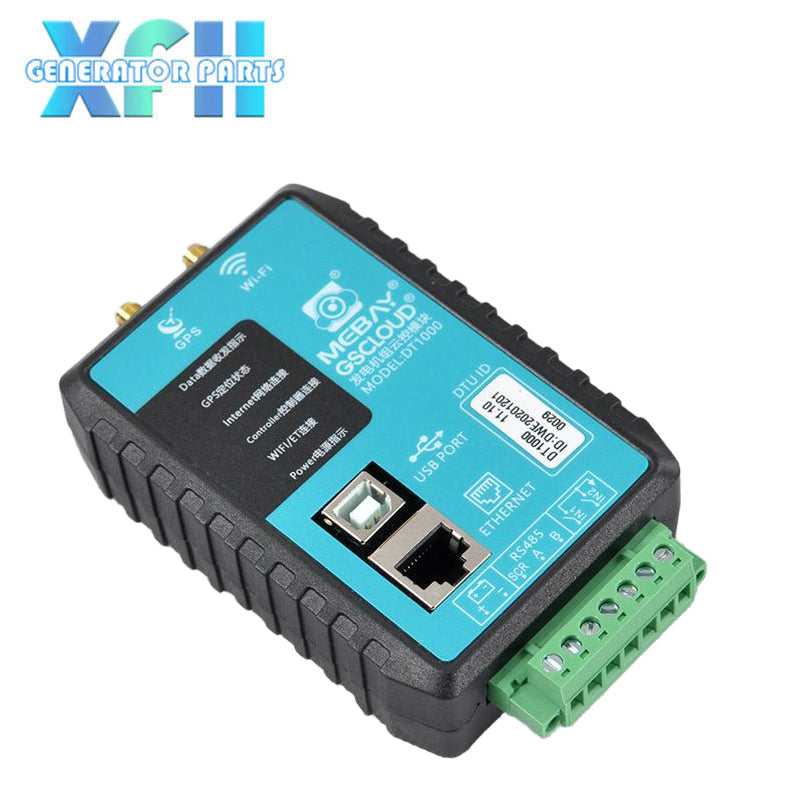

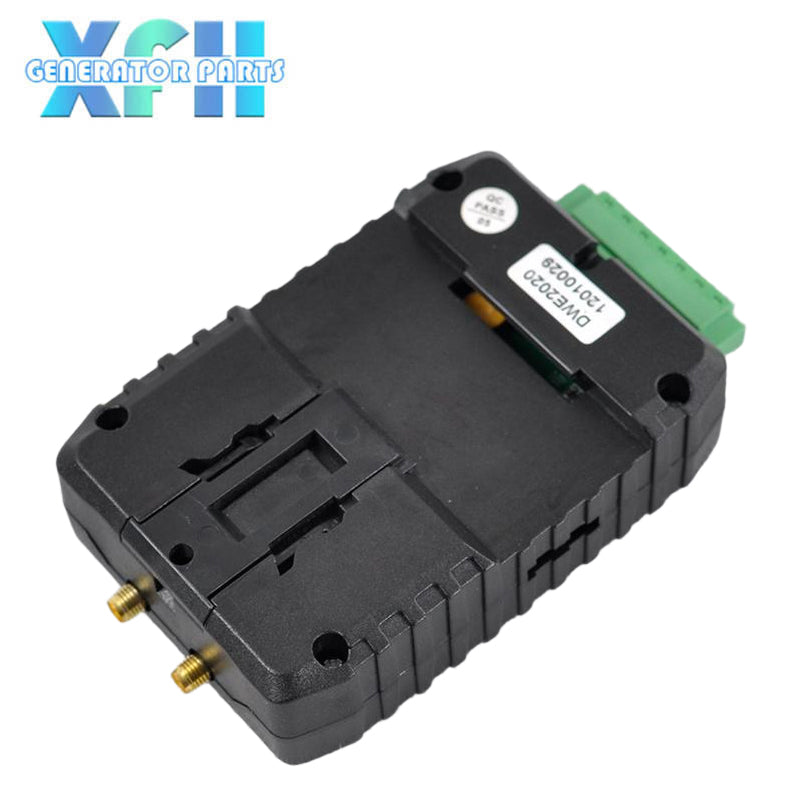

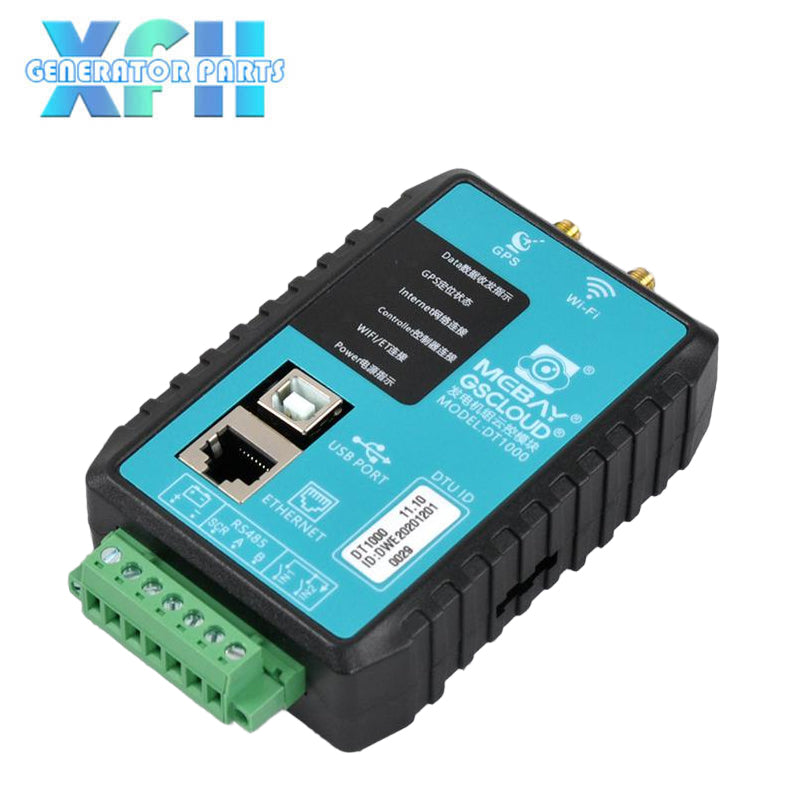

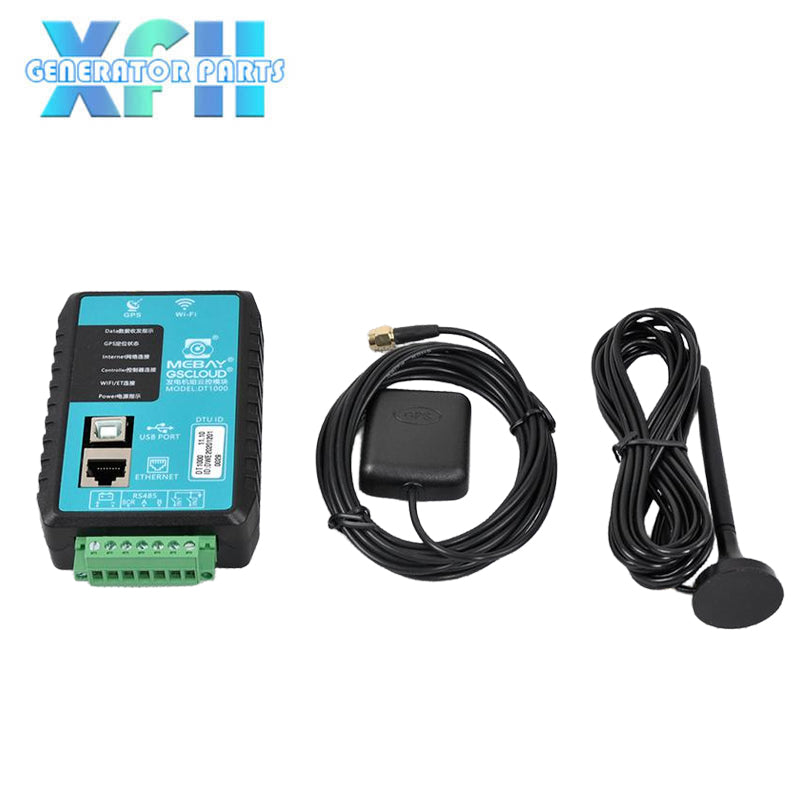

Mebay WIFI Generator Controller Module Remote Control Module DT1000

Mebay WIFI Generator Controller Module Remote Control Module DT1000

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

$95.00
$95.00
Giảm giá Đã bán hết
Phí vận chuyển được tính khi thanh toán.
Cloud Monitoring Communication Module

DT1000 is the data acquisition and communication module of GSCloud® generator set cloud control system developed by our company, which is WIFI/ET version. Its main function is to connect the generator set controller to the interconnection network, to realize the computer PC terminal and mobile phone APP remote real-time monitoring generator set, to realize the remote control unit, remote data monitoring, remote fault diagnosis, unit position real-time positioning, maintenance management and so on.



Options
Parameters
Working voltage
DC8V----36V Continuous
Power consumption 1
Standby：24V：MAX 1W
Power consumption 2
Working：24V：MAX 5W
USB Device
Type B USB port
RS485
Isolated
WIFI
SMA Port antenna and support 802.11b/g/n standard
GPS
SMA port
ETHERNET
RJ45 10/100Mbps self-adaption network interface
Switch value input 1
Available if connecting with Battery -
Switch value input 2
Available if connecting with Battery -
Working condition
-25-65℃
Storage condition
-40-85℃
Overall dimension
106.5mm*74mm*31mm
Weight
0.15Kg
