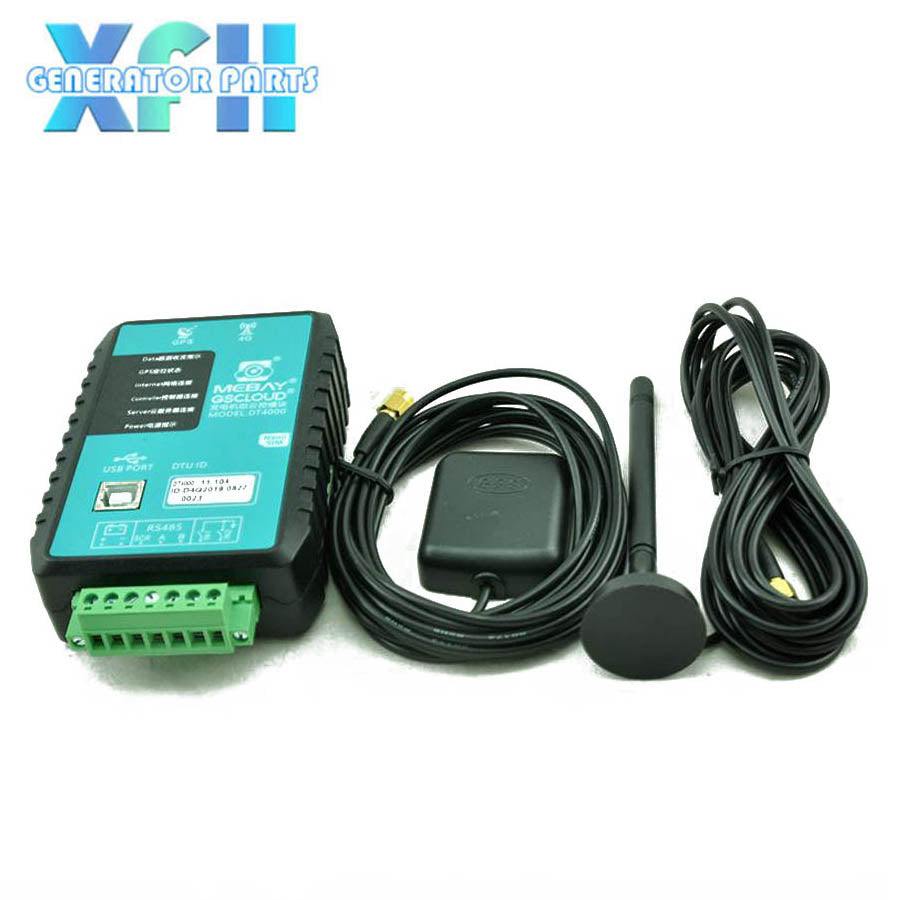

MEBAY 4G GPS Generator Remote Controller DT4000 DT4000G Generator Parts
MEBAY 4G GPS Generator Remote Controller DT4000 DT4000G Generator Parts
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Giá thông thường
$115.00
Giá thông thường
Giá bán
$115.00
Đơn giá
trên
Phí vận chuyển được tính khi thanh toán.
Không thể tải khả năng nhận hàng tại cửa hàng
DT4000 is the data acquisition and communication module of GSCloud® generator set cloud control system developed by our company, which is 4G version.
|
Parameters
|
|
|
Working voltage
|
DC8V----36V Continuous
|
|
Power consumption
|
Standby:24V:MAX 1W
|
|
Working:24V:MAX 5W
|
|
|
Supported frequency band
|
LTE-TDD: B38/B39/B40/B41 LTE-FDD: B1/B3/B5/B8 WCDMA: B1/B8 TD-SCDMA: B34/B39 GSM:900/1800MHZ
|
|
SIM card
|
Nano SIM
|
|
Switch value input
|
Available if connecting with Battery -
|
|
Storage condition
|
-40-85°C
|
|
USB Host
|
Type A USB port
|
|
USB Device
|
Type B USB port
|
|
RS485
|
Isolated
|
|
GPRS
|
SMA port
|
|
GPS
|
SMA port
|
|
Working condition
|
-25-65°C
|
|
Overall dimension
|
106.5mm*74mm*31mm
|
