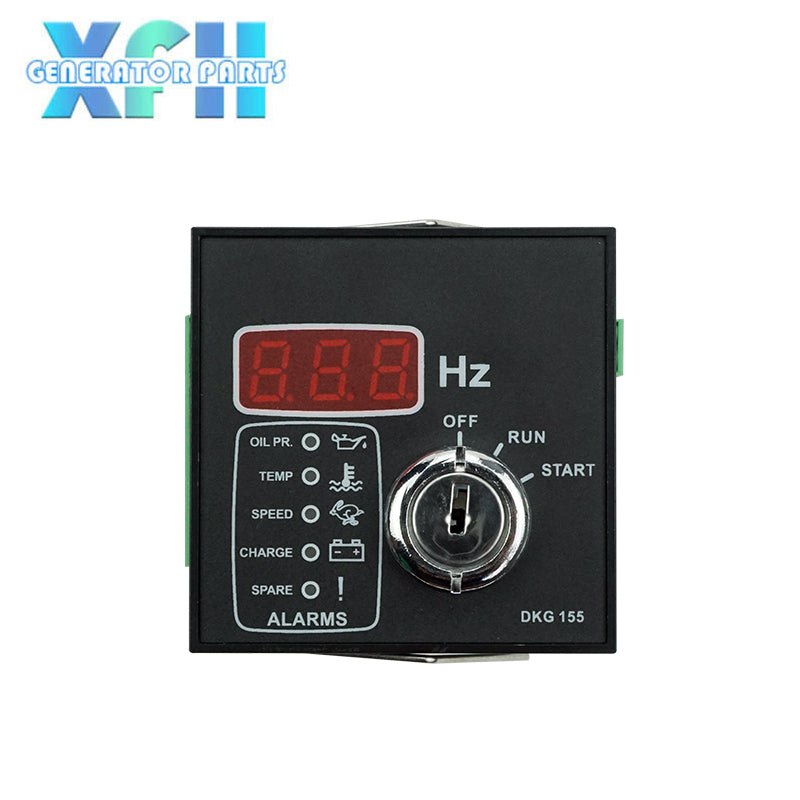

DKG155 Generator Engine Controller DKG-155 Auto Start Stop Diesel Engine Controller Module Panel for Diesel Gasoline Engine Generator
DKG155 Generator Engine Controller DKG-155 Auto Start Stop Diesel Engine Controller Module Panel for Diesel Gasoline Engine Generator
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Giá thông thường
$49.00
Giá thông thường
Giá bán
$49.00
Đơn giá
trên
Phí vận chuyển được tính khi thanh toán.
Không thể tải khả năng nhận hàng tại cửa hàng
|
TECHNICAL SPECIFICATIONS
|
|
|
Alternator Voltage:
|
15 to 300 V-AC
|
|
Alternator Frequency:
|
50 or 60 Hz nominal.
|
|
Overspeed:
|
nominal frequency + 14% (+24% overshoot)
|
|
Underspeed:
|
30 Hz
|
|
DC Supply Range:
|
9 to 33 V-DC.
|
|
Current consumption:
|
150mA max. (Relay outputs open).
|
|
Charge fail threshold:
|
6 V-DC.
|
|
Charge excitation current:
|
via 220 ohms resistor
|
|
connected to the FUEL output.
|
|
|
Operating temp.:
|
-20°C (-4°F) to 70 °C (158°F).
|
|
Storage temp.:
|
-30°C (-22°F) to 80 °C (176°F).
|
|
Maximum humidity:
|
95% non-condensing.
|
|
Dimensions:
|
72x72x52mm (WxHxD)
|
|
Panel cutout dimensions:
|
68x68 mm
|
|
Weight:
|
220g (approx.)
|
|
Installation:
|
Front panel mounted. Retaining steel spring provided.
|
