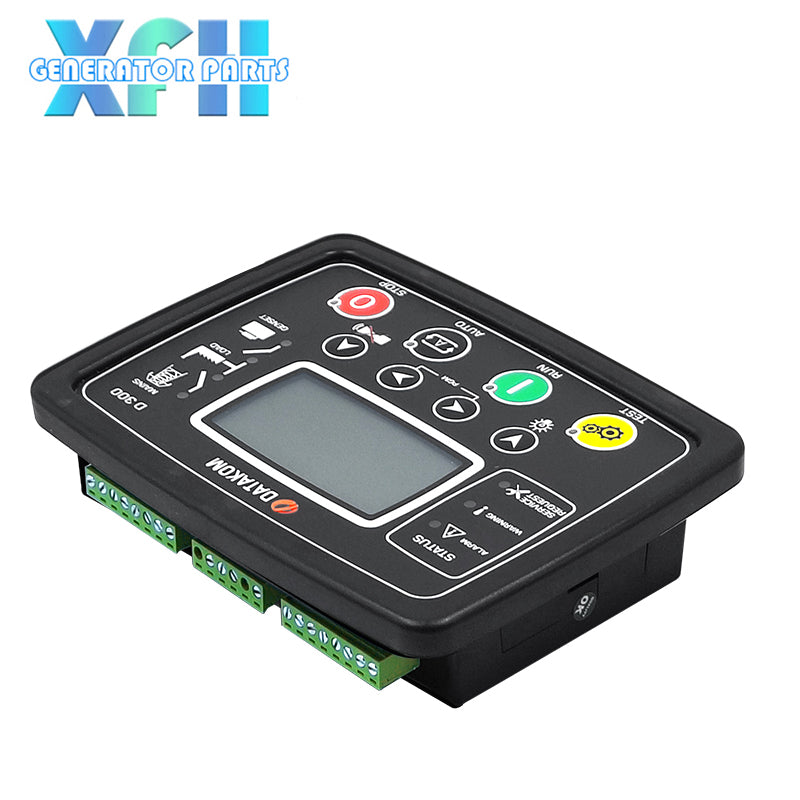

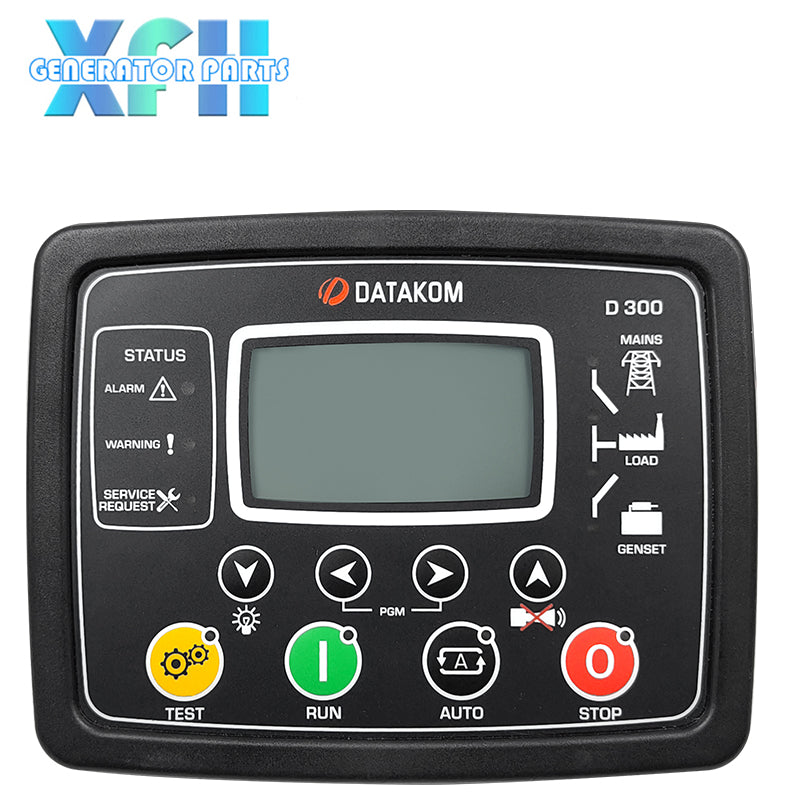

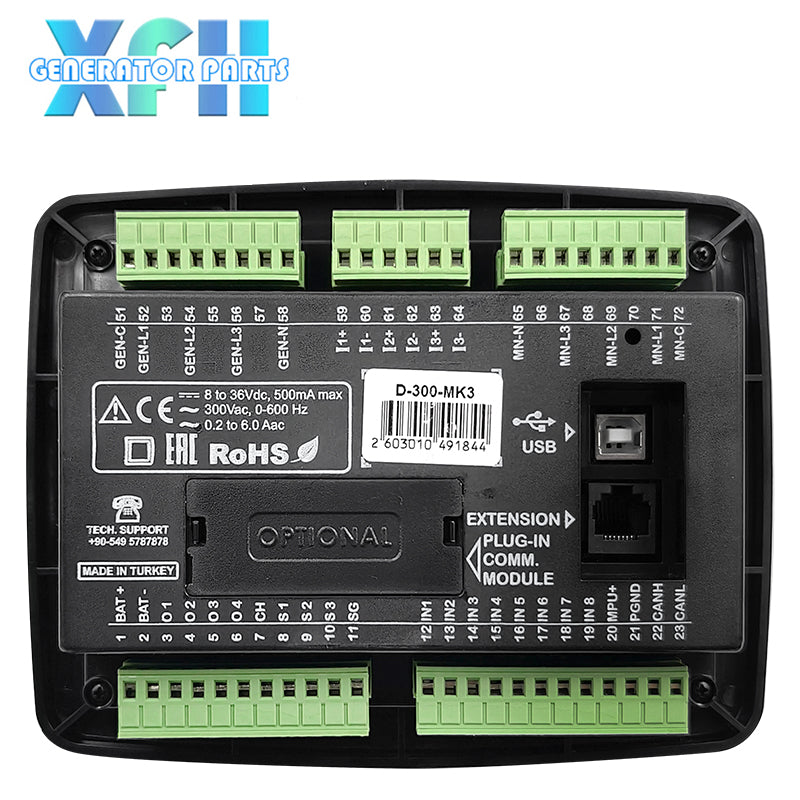

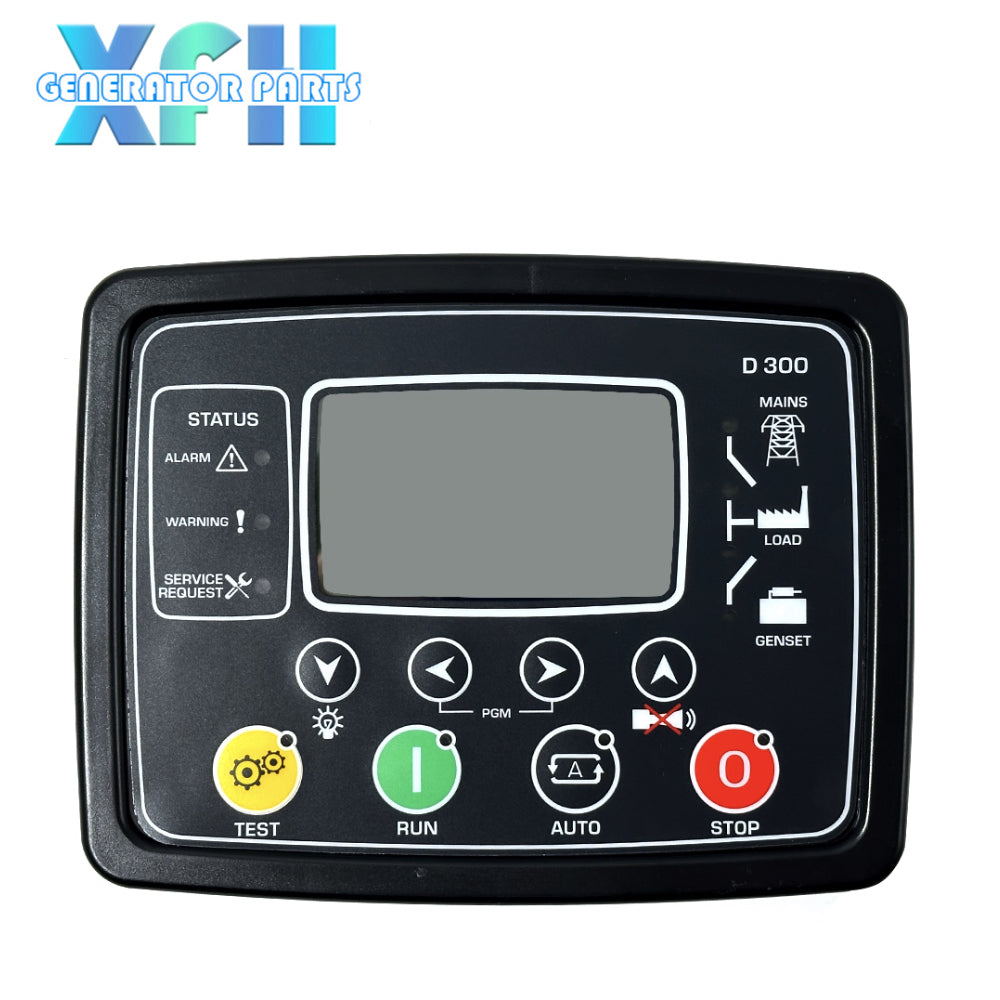

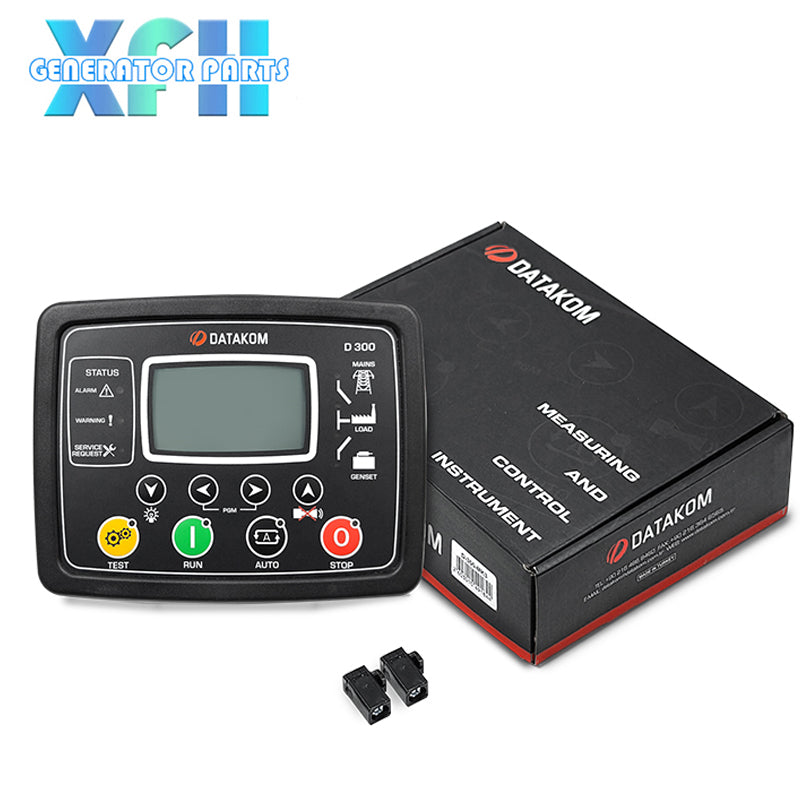

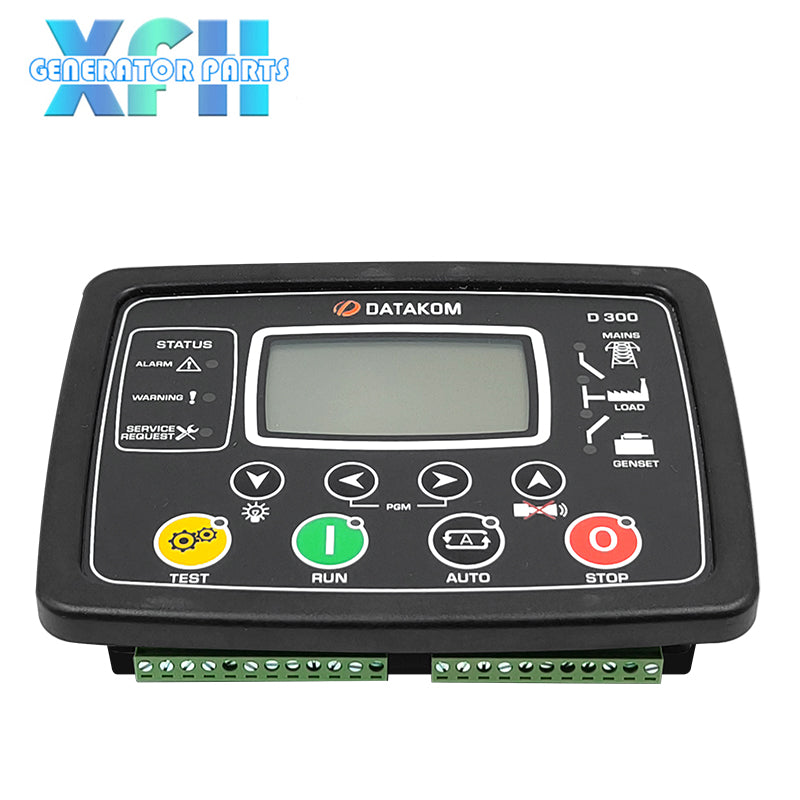

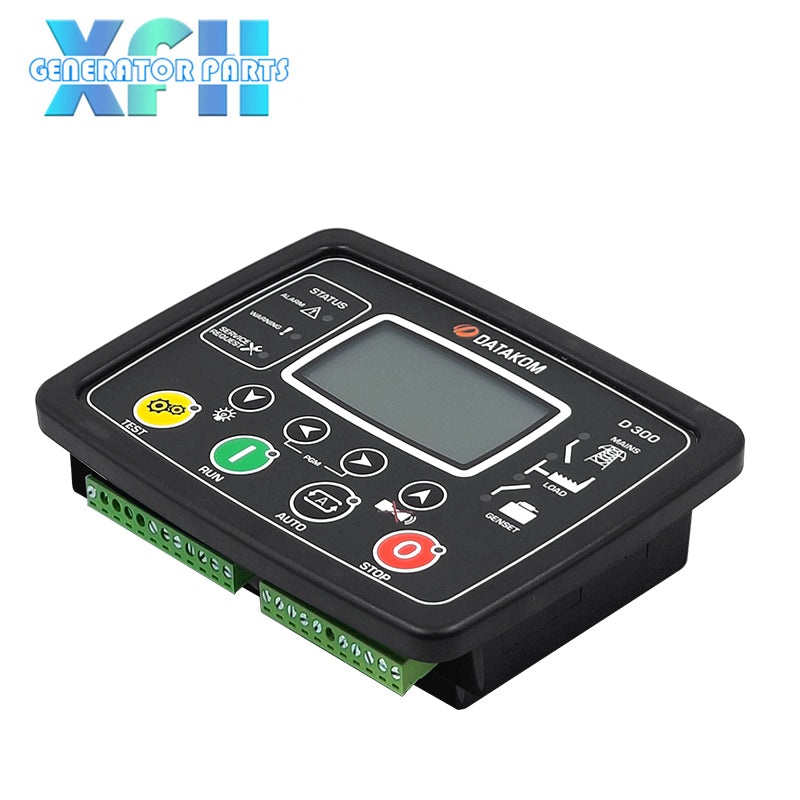

D300 MK3 Datakom Controller D-300- MK3 Panel Auto Start Control Module D-300 MK3 for Diesel Generator
D300 MK3 Datakom Controller D-300- MK3 Panel Auto Start Control Module D-300 MK3 for Diesel Generator
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Không thể tải khả năng nhận hàng tại cửa hàng
The D-300 is a cost effective, modern technology genset controller ready for internet monitoring. Its main advantages are multifunctionality, support for multiple topologies, harmonic analysis and detailed power measurements.
|
Model
|
D300
|
Mains frequency
|
0-600 Hz
|
|
|
Alternator voltage
|
0 to 300 V-AC (Ph-N)
|
DC Supply Range
|
8.0 to 36.0 V-DC
|
|
|
Current Inputs
|
from current transformers. ../5A.
|
Current consumption
|
500 mA-DC max @ 12V-DC
|
|
|
Operating Temperature
|
-20°C to 70°C (-4 to +158 °F)
|
Digital inputs
|
input voltage 0 to 36 V-DC
|
|
|
IP Protection
|
IP65 from front panel，IP30 from the rear
|
|||
