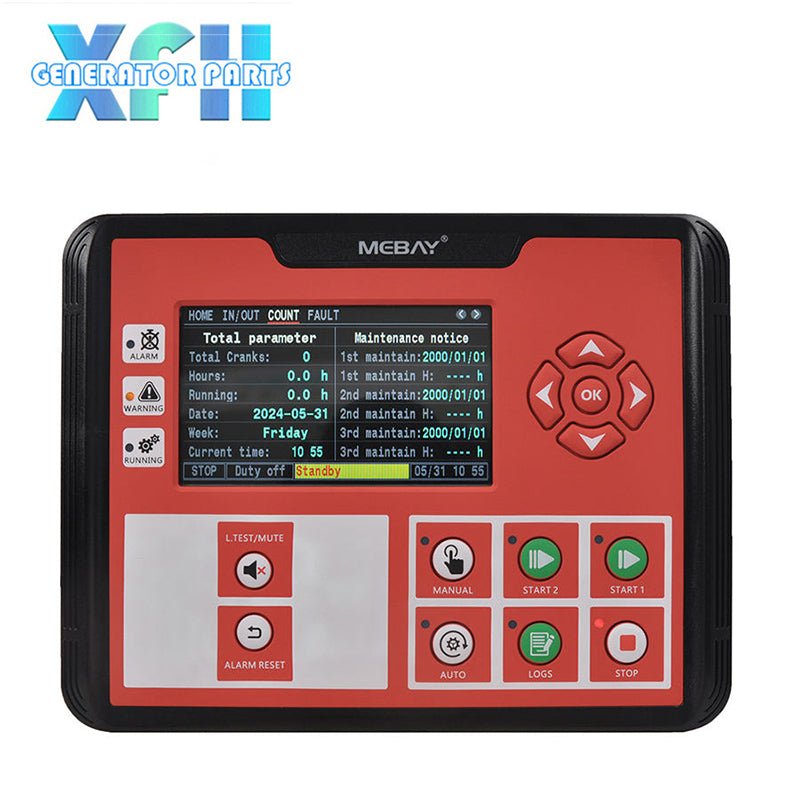

MEBAY FC70DR Intelligent Diesel Fire Pump Controller Automatic Control Module for Fire Fighting System

MEBAY FC70DR Intelligent Diesel Fire Pump Controller Automatic Control Module for Fire Fighting System

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

$219.00
$219.00
İndirim Tükendi
Kargo, ödeme sayfasında hesaplanır.

This controller is used for fire pump units driven by diesel engines, which has the functions of parameter setting, start, stop, parameter monitoring, fault monitoring and protection.

* 4.3 inch LCD screen
* Acrylic material is adapted to protect the screen.
* Silicone panels, waterproof, oil-proof, UV-resistant, good operation feel and long service life.
* USB Port, RS485 and CAN port
* Waterproof level: IP65

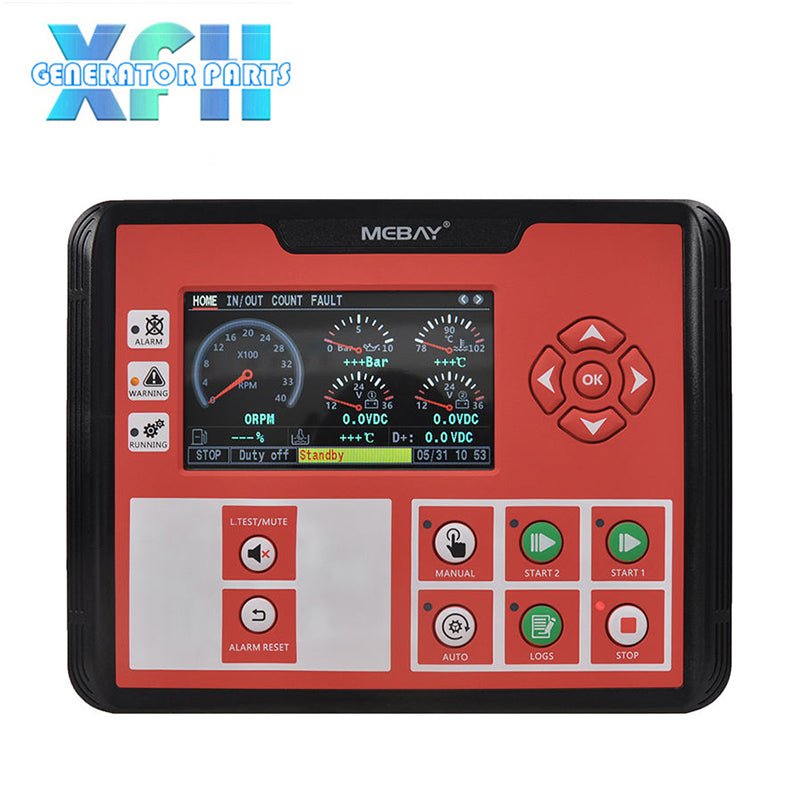

Parameters Display

* Engine RPM
* Engine oil pressure
* Engine water temperature
* Engine fuel level
* Engine battery voltage 1
* Engine battery voltage 2
* Raw water temperature
* Charging voltage
* Total Crank times
* Current running time
* Total running time
* Maintenance notice

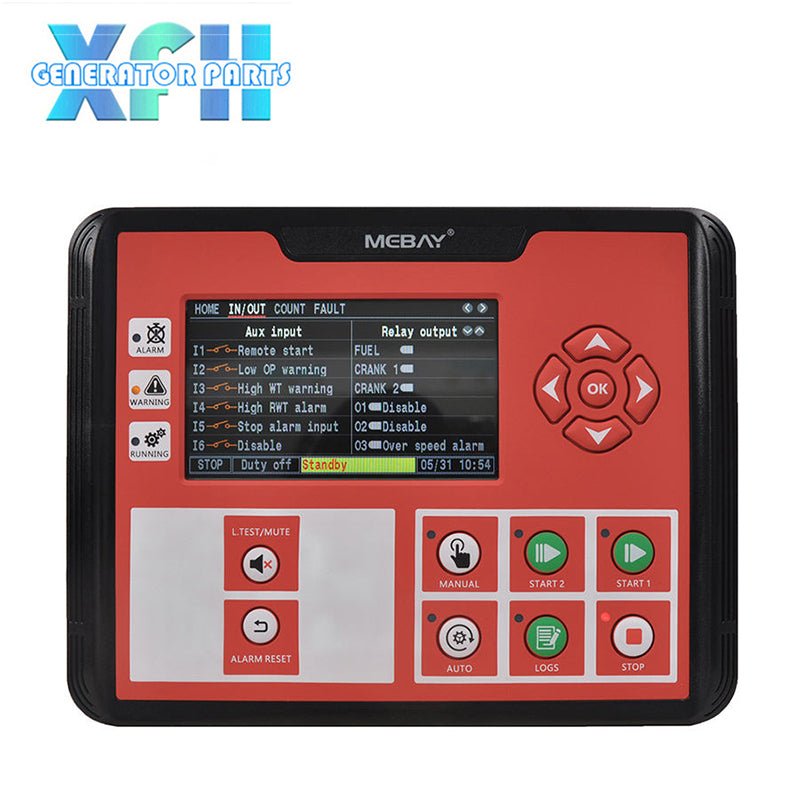

* 6 switches input status display
* Output status display of 11 relays

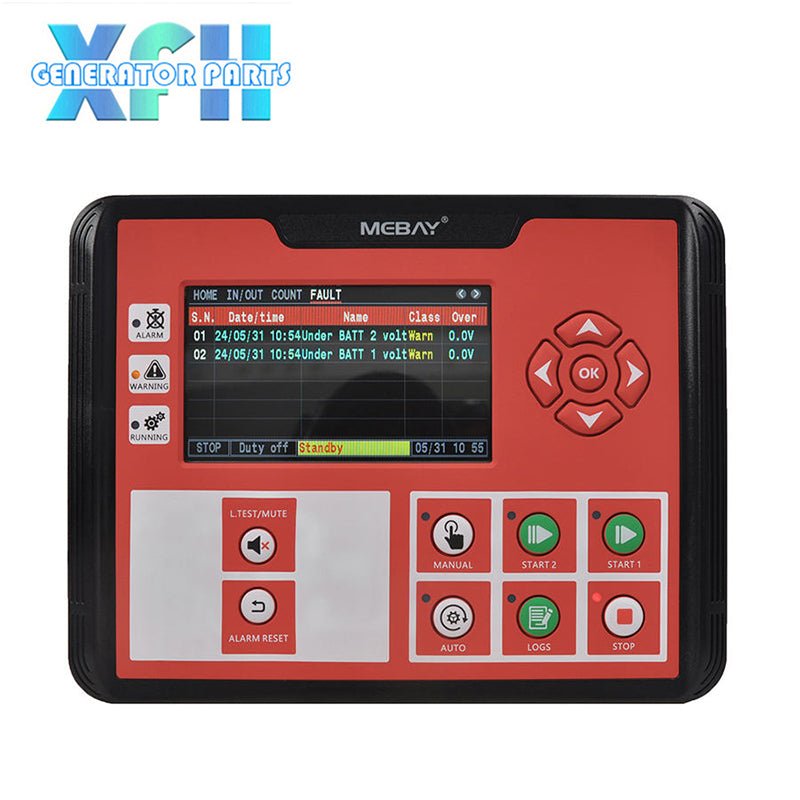

Protection
* Over speed
* Under speed
* RPM Lost
* Low oil pressure
* High Engine water temperature
* Low Engine water temperature
* Low fuel level
* High raw water temperature
* Low raw water temperature
* External real-time alarm
* Sensor Open
* Primary\Secondary \Third maintenance expire
* ECU alarm failure
* ECU communication Failure
* Low water level alarm
* Crank failure
* Stop Failure
* Over battery voltage
* Under battery voltage

Specification
Working voltage
DC8V----36V Continuous
Power consumption Standby：
Working：MAX 3W (Standby：MAX 2W)
Rotate speed sensor Frequency
50-10000Hz
MAX Accumulating Time
99999.9Hours（Min Store time:6min）
Fuel Relay Output：
Crank 1 start Relay Output：
Crank 2 start Relay Output：
Max 16Amp Non-contact normally Open output
AUX. OUTPUT 1-2
Max 5Amp DC+VE Supply voltage
AUX. OUTPUT 3-7
250V/5 AMP Non-contact normally Open output
AUX. OUTPUT 8
250V/5 AMP Non-contact normally Open/Closed output
Sensor INPUT
4 fixed sensors
Excitation output
DC+VE supply voltage
AUX.INPUT 1-6
Available if connecting with Battery -
Protection Level
IP54：when waterproof rubber gasket is added between controller and its panel
Insulation strength
Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.
Overall dimension
210mm*160mm*50mm
Panel cutout
186*142mm
