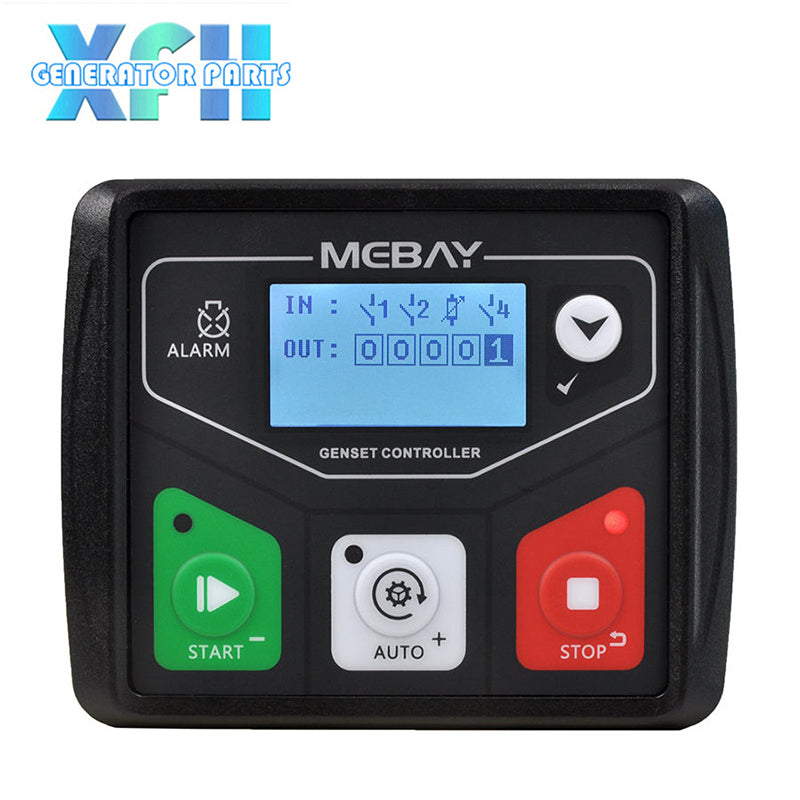

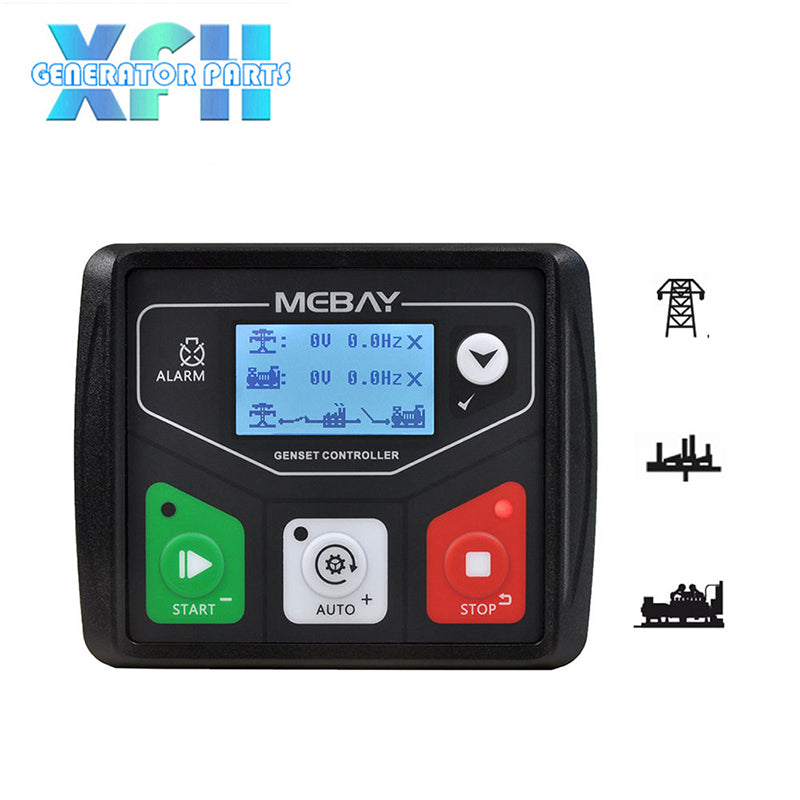

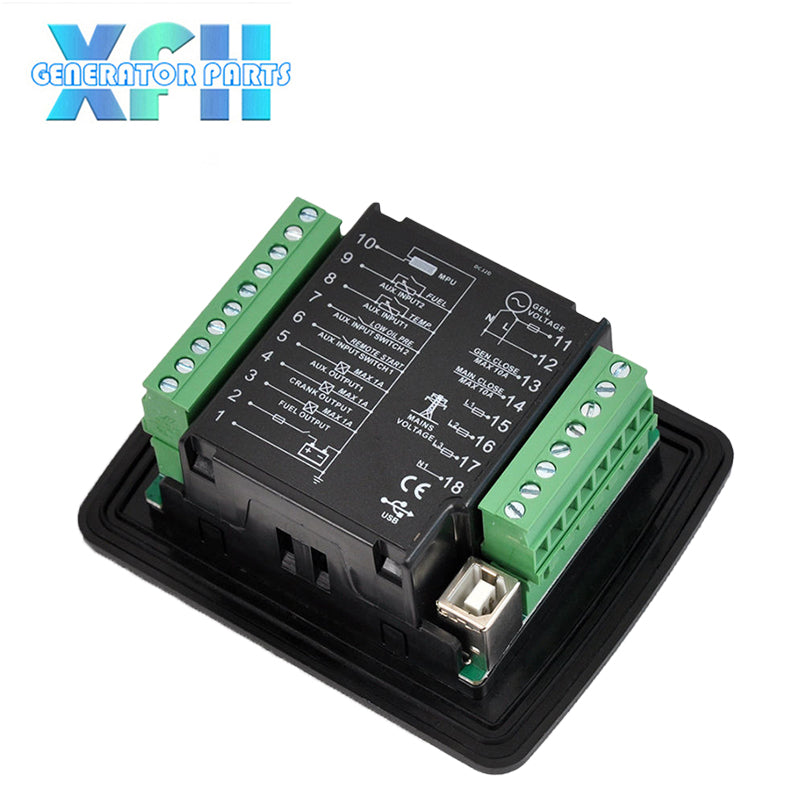

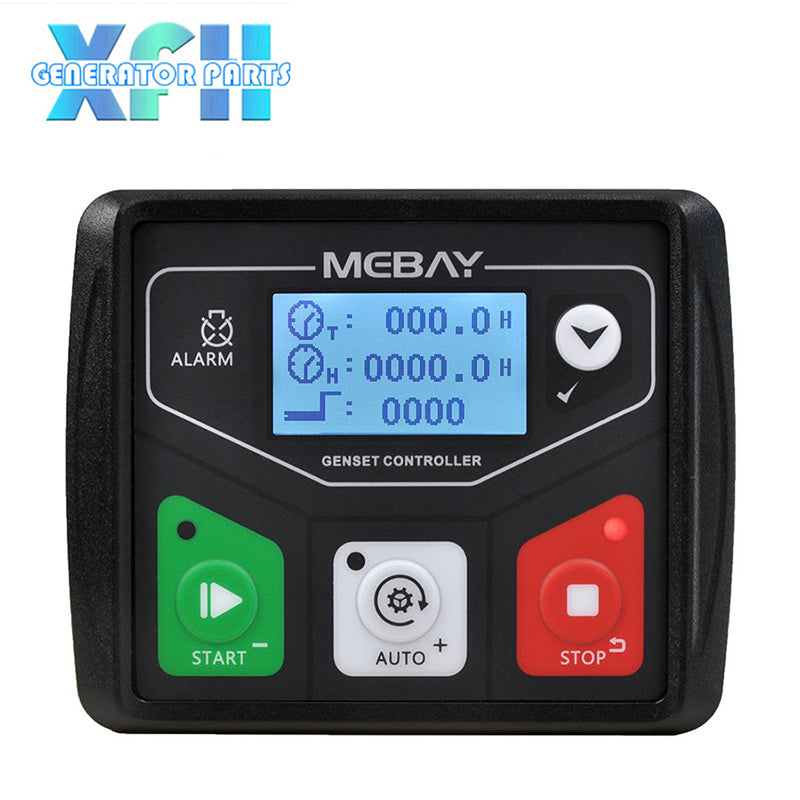

MEBAY Automatic AMF Generator Controller DC32D Generator Control Module for Diesel Generator Sets

MEBAY Automatic AMF Generator Controller DC32D Generator Control Module for Diesel Generator Sets

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

$59.00
$59.00
İndirim Tükendi
Kargo, ödeme sayfasında hesaplanır.

This Controller Series is specialized for small diesel, gasoline, gas generator sets, start, stop,monitor and defaults checking as well as parameters setting.

This controller has manual start, stop, and AMF functions.It has a point array LCD screen, can display various faults in the same time that the genset will be stopped once it can not work smoothly.

Main Features

*Languages: Chinese, English, Spanish, Russian, Türkiye, French.(more language can be set according to user’s request)

*AMF Function

*Long Service Life: PC front face panel, which is water-proof, oil-proof, UV proof so that the durability is longer.

*USB Port

*Records function: relative faults shall be recorded in real time.

Technical Features

*It has 5 relay outputs, 1 of which are configurable, and more than 10 functions can be selected for each channel.

*2 switch value input, and each can be set as max 10 functions.

*2 sensor simulation input connectors, various kinds of units can be set.

*Sensor can be self-defined by front face button or PC software.

*Various of crank conditions(RPM,Frequency) can be chosen

*Control Protection:Auto Start/Stop of genset,load transfer and perfect failure display and protection.

Specification of the Generator controller DC32D
Operation Voltage
DC8-36V Continuous
AC Voltage Input
1P2W(L-N input) 30VAC-360VAC(ph-N)
Rotate speed sensor Frequency
50-9000Hz
Generator Frequency input
50/60Hz
Insulation strength
Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.
Working condition
-25-65℃
Protection Level
IP65:when waterproof rubber gasket is added between controller and its panel
Panel cutout
78mm×66mm
