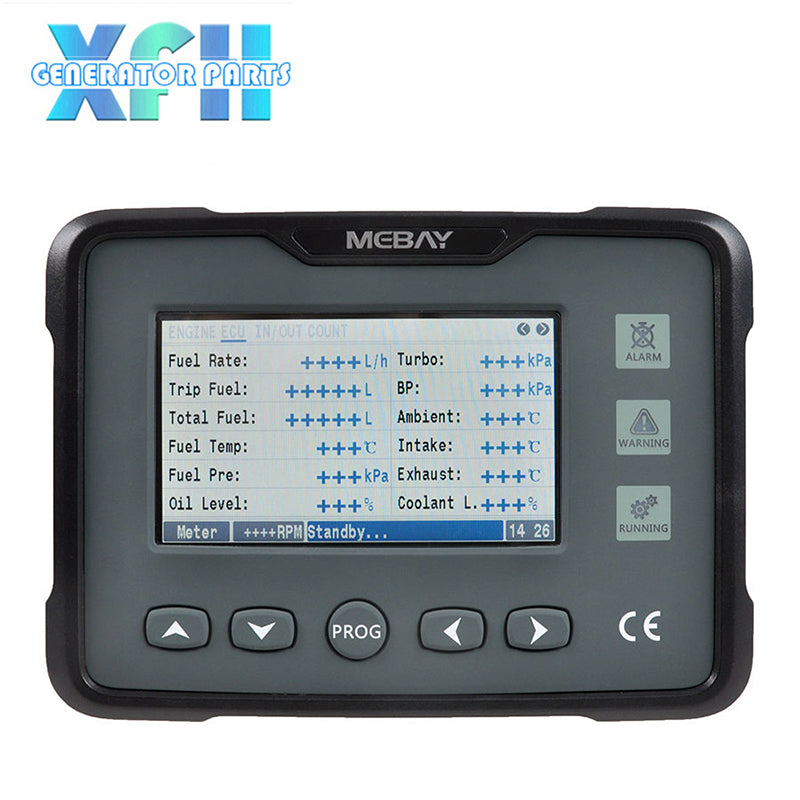

MEBAY GM70CR Intelligent Diesel Engine Controller Automatic Control Module for Generator & Pump Sets

MEBAY GM70CR Intelligent Diesel Engine Controller Automatic Control Module for Generator & Pump Sets

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

$154.00
$154.00
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

GM70C is specially designed for the parameter monitoring and fault monitoring of air compressor driven by diesel engine and gas engine. It is equipped with standard can communication port and built-in J1939 protocol. Relevant parameters
can be read through CAN port of engine ECU.

*4.3 inch TFT colorful big LCD screen

* Acrylic material on screen and silicon panel

* USB+RS485+CAN
* Protection count down function
* Real time clock
* Black box function
* Sensor can be self-defined
* Engine limited time use function.

Size:
Overall dimension:175mm*128mm*39mm
Panel cutout: 152mm*112mm

Parameters Display
* engine RPM
* engine oil pressure
* engine water temperature
* engine oil temperature
* engine fuel level
* engine battery voltage
* ECU related parameters
* 4 switches input status display
* Output status display of 3 relays
* Cumulative number of startups
* Total number of alarms
* Total Crank times
* Current running time
* Total running time
* Maintenance notice

Specification
Working voltage
DC8V----36V Continuous
Power consumption
Standby:24V:MAX 1W
Working:24V:MAX 3W
MAX Accumulating Time
99999.9Hours（Min Store time:6min）
AUX. OUTPUT 1
Max 5Amp DC+VE Supply voltage
AUX. OUTPUT 2
250V/5 AMP Non-contact normally Open/Closed output
AUX. OUTPUT 3
Switch value input
Available if connecting with Battery -
Working condition
-30-70℃
Storage condition
-40-85℃
Protection Level
IP65:when waterproof rubber gasket is added between
meter and its panel
Insulation strength
Apply AC2.2kV voltage between high voltage terminal
and low voltage terminal; The leakage current is not
more than 3mA within 1min.
