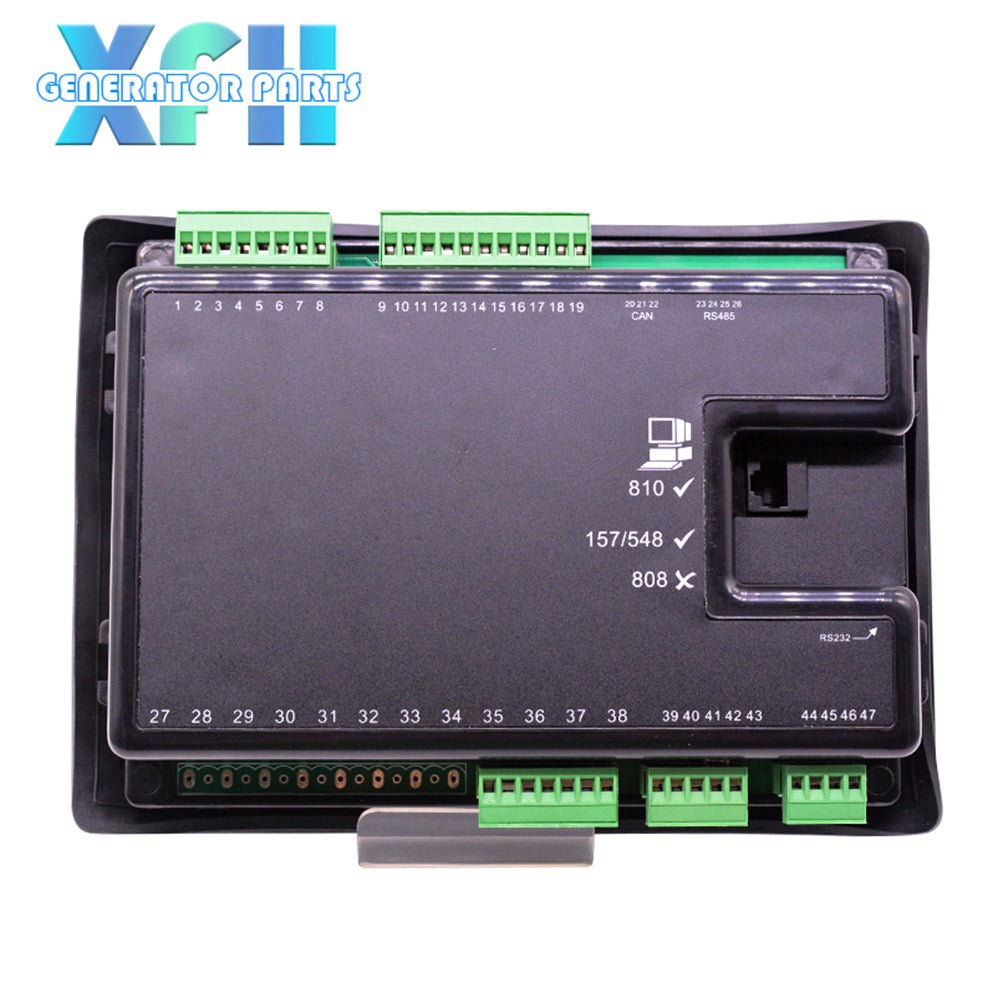

DSE5110 Generator Controller LCD Display Control Module Panel For Diesel Genset

Product Introduction

The DSE5110 is an Automatic Start Control Module designed to automatically start and stop diesel and gas generating sets that include non electronic engines. The module also provides excellent engine monitoring and protection features.
The module has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.
The DSE5120 is an Automatic Mains Failure Control Module and includes all the features of the DSE5110 plus the ability to monitor a mains (utility) supply. Upon detection of a mains (utility) failure the module automatically starts the generating set. Once the mains power has been restored it instructs the generating set to stop.

Key Features

• Automatic start
• Automatic mains (utility) failure detection (DSE5120 only)
• Automatic load transfer
• Configurable inputs
• Configurable outputs
• Configurable alarms & timers
• Digital inputs
• Analogue inputs
• Back-lit character LCD display
• Engine protection
• Front panel mounting
• Icon based fault diagnostics
• PC configurable
• Front panel programming
• Remote monitoring
• LCD alarm indication
• LED alarm indication

Specification

Power Supply：8 to 35 Vdc Continuous

Cranking Dropouts：Able to survive 0V for 50mS, providing the supply was at least 10V before dropout and supply recovers to 5V

Max Operating Current： 320mA at 12V, 215mA at 24V

Alternator Input Range：15V (L-N) to 333V AC (L-N) absolute maximum

Auxiliary Output：Solid state 2.4A DC at supply voltage.

Fuel/Start Output：Solid state 3.4A DC at supply voltage

Generator C.T.：5A secondary 0.5VA

Operating Temperature Range：-30 to +70°C
