AC Power Genset LCD Display 3 Phases ATS Controller Control Panel ATS330AC Dual Power Controller
AC Power Genset LCD Display 3 Phases ATS Controller Control Panel ATS330AC Dual Power Controller
Test before shippment, 1 year warranty, pay safe with PayPal. Free Worldwide Shipping to 63 Countries. Tracking Number Provided. 100% Delivery Guarantee
Prix habituel
$79.00
Prix habituel
Prix soldé
$79.00
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
The ATS330AC is a dual power automatic switching controller for mains and standby power switching applications, allowing automatic or manual control of ATS dual power switching. It can display 3 phases mains/generator voltage and frequency.
Parameter Display：

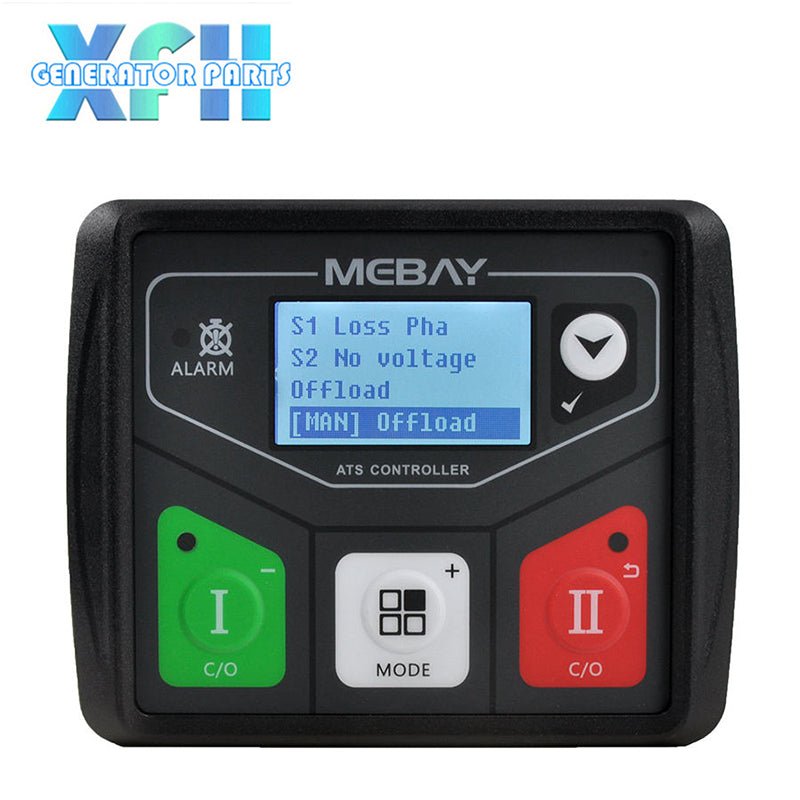

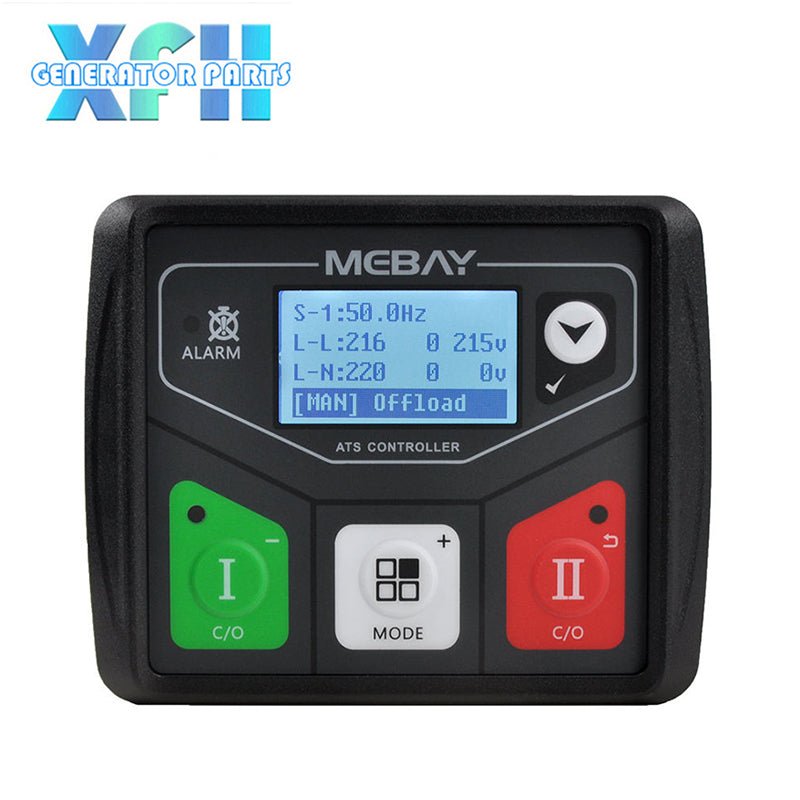

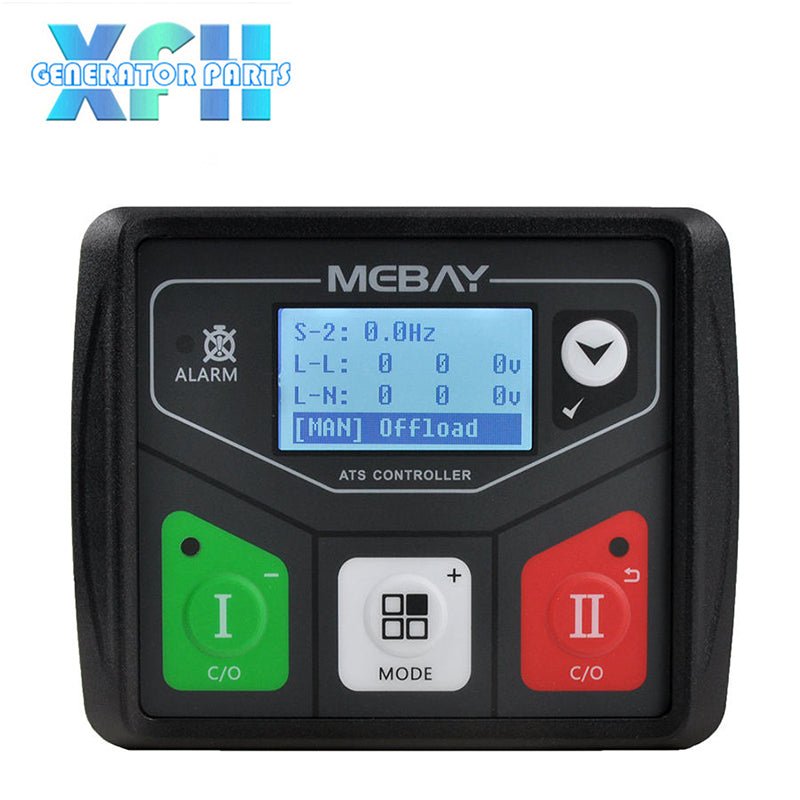

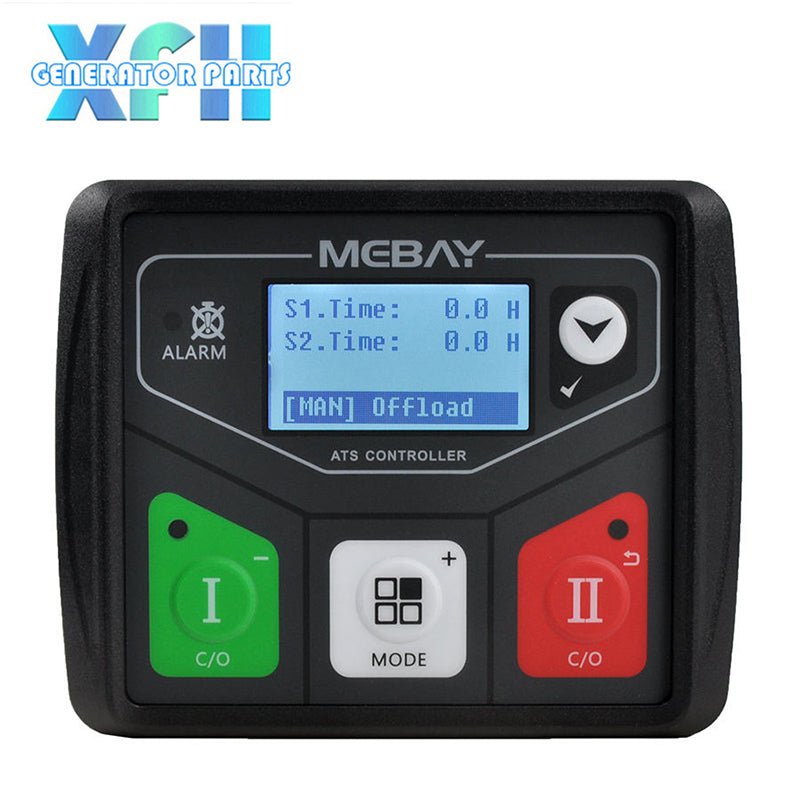

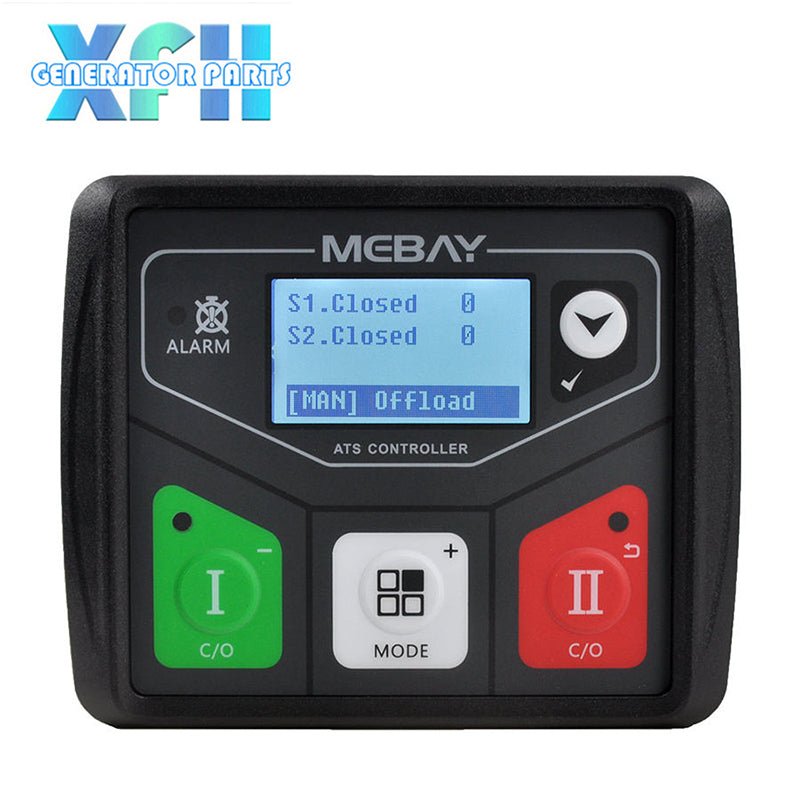

* S1 voltage * S1 Frequency * S1 Number of closing times * S2 Voltage * S2 Frequency * S2 Number of closing times * S1/S2 with power supply time * Switch Status * Work Mode * Real-time status
Main Features
* AC power supply
* The voltage and frequency of the mains and standby power supply can be displayed. * Automatic/Manual mode. * Suitable for various AC systems (3 phase 4-wires, single-phase 2-wire, and 2-phase 3-wire).

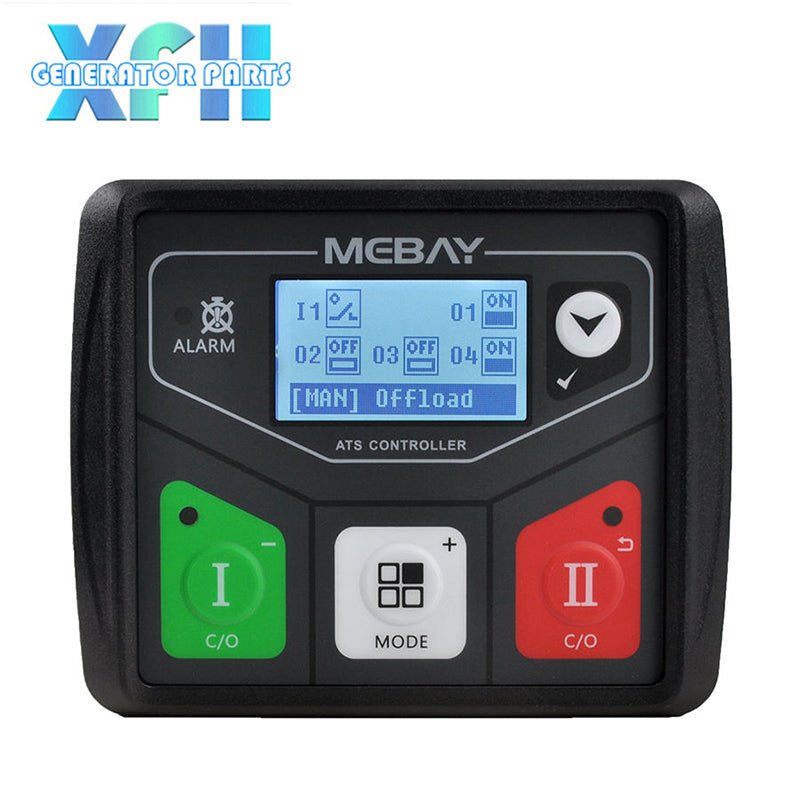

* Input/output function, status can be shown directly.
* The voltage and frequency of the mains and standby power supply can be displayed. * Automatic/Manual mode. * Suitable for various AC systems (3 phase 4-wires, single-phase 2-wire, and 2-phase 3-wire).
* Input/output function, status can be shown directly.
* Event log function * Acquisition and display of parameters such as voltage, frequency, etc. * Control Protection: Realize automatic ATS switching of generator sets, perfect fault display and protection functions.
|
Options
|
Parameters
|
|
Working voltage
|
AC 100V-260V(L1N1/L2N2)
|
|
S1/S2 Voltage Input
|
3P4W 100VAC-260VAC (ph-N)
|
|
MAX Accumulating Time
|
99999.9Hours (Min Store time:6min)
|
|
Closing S1/S2 output
|
250VAC/16 AMP Non-contact normally Open output
|
|
Double split output
|
250VAC/3 AMP Non-contact normally Open output
|
|
Remote start S2 output
|
30VDC/1 AMP Non-contact normally close output
|
|
Fire input
|
Fire input signal earth active
|
|
Closing feedback input
|
The Closing feedback signal is valid
|
|
Working condition
|
-25-65℃
|
|
Protection Level
|
IP65：when waterproof rubber gasket is added between controller and its panel
|
|
Insulation strength
|
Apply AC 2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within
1min. |
|
Overall dimension
|
106mm*86mm*45mm
|
|
Panel cutout
|
78mm*66mm
|
