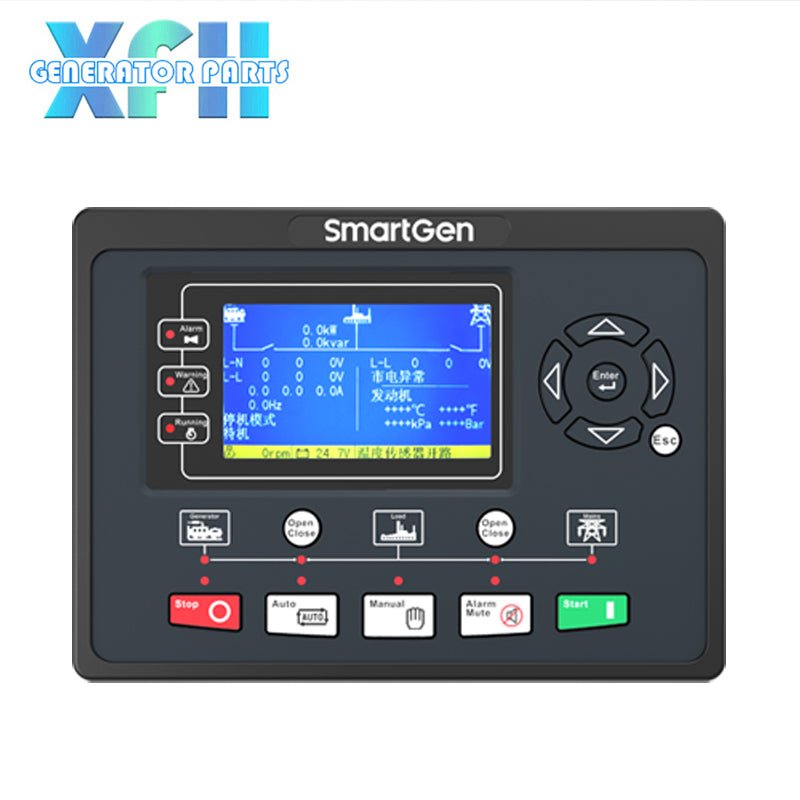

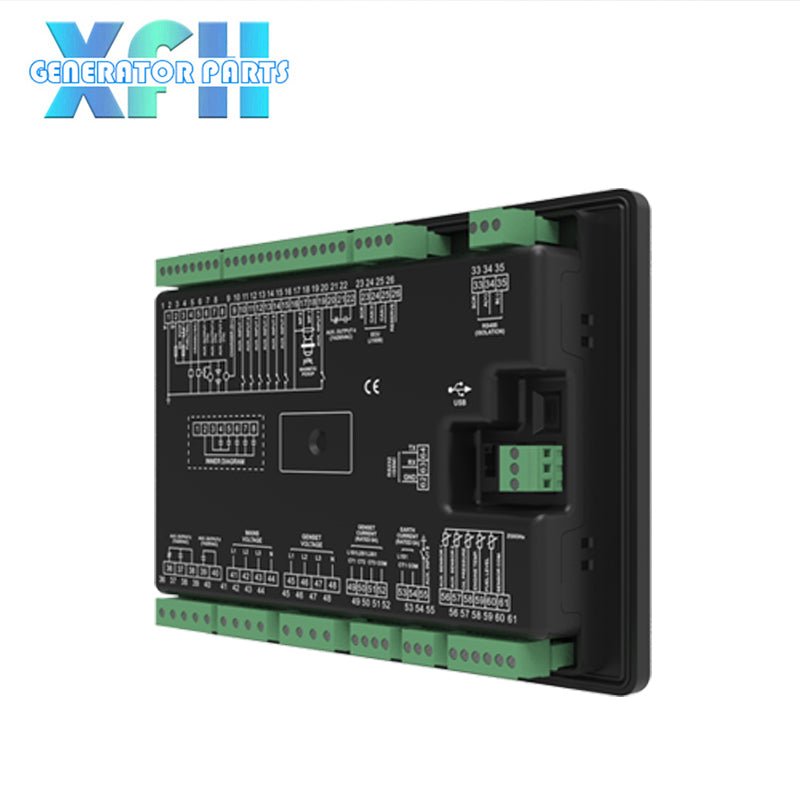

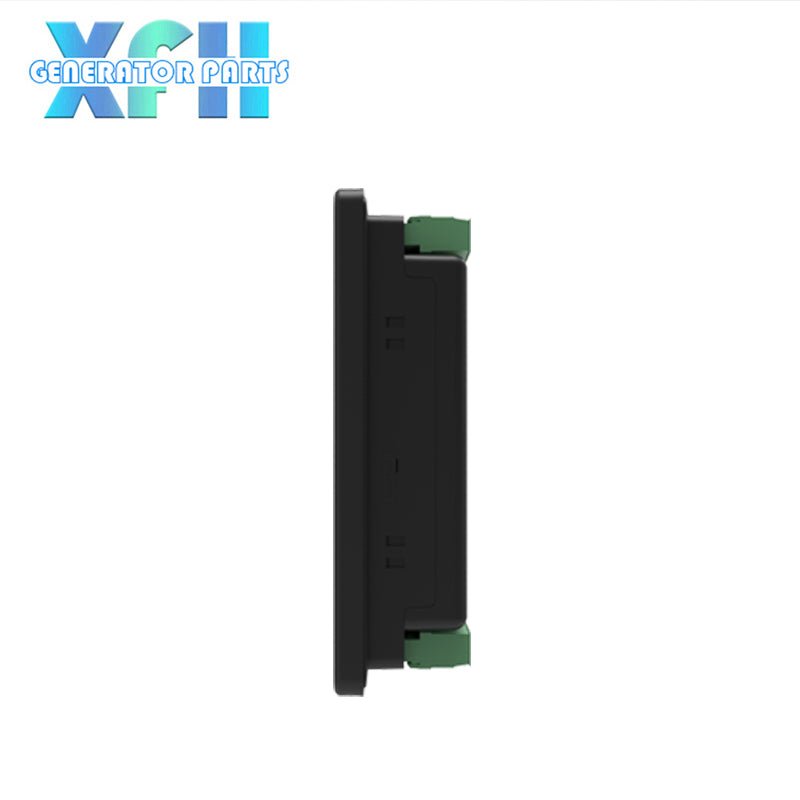

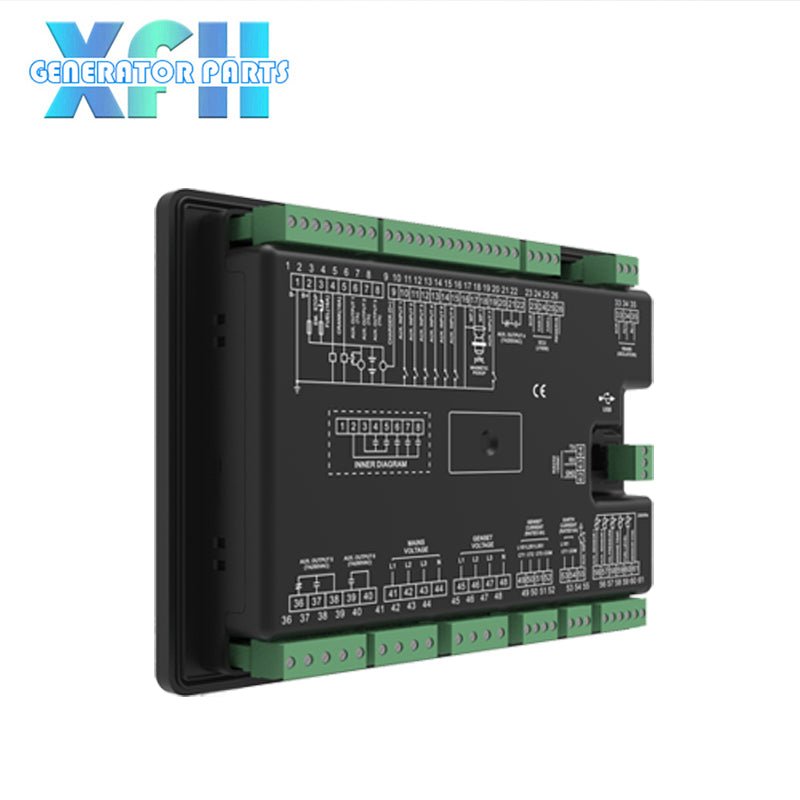

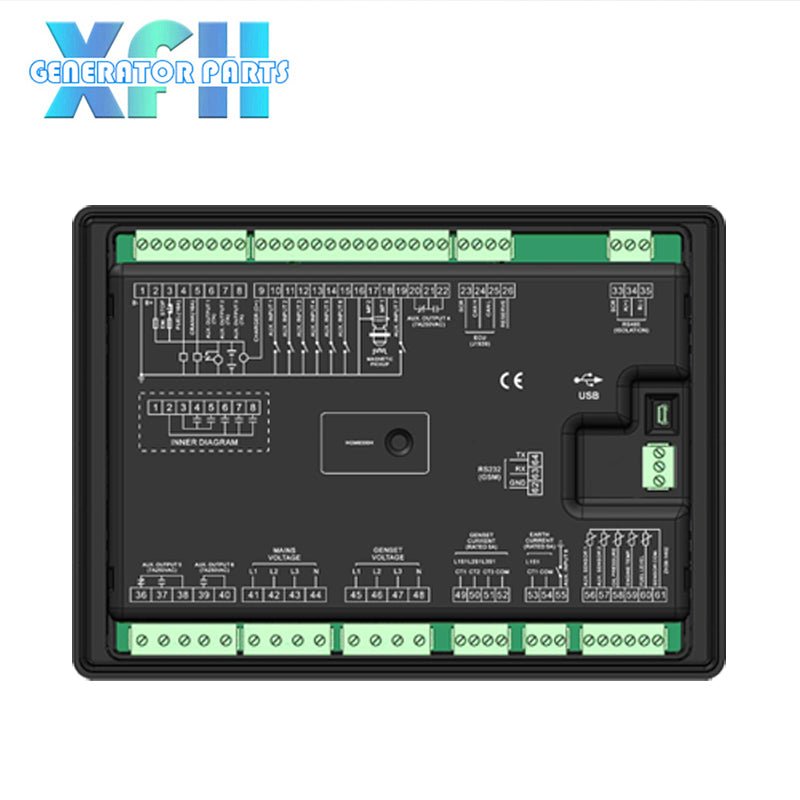

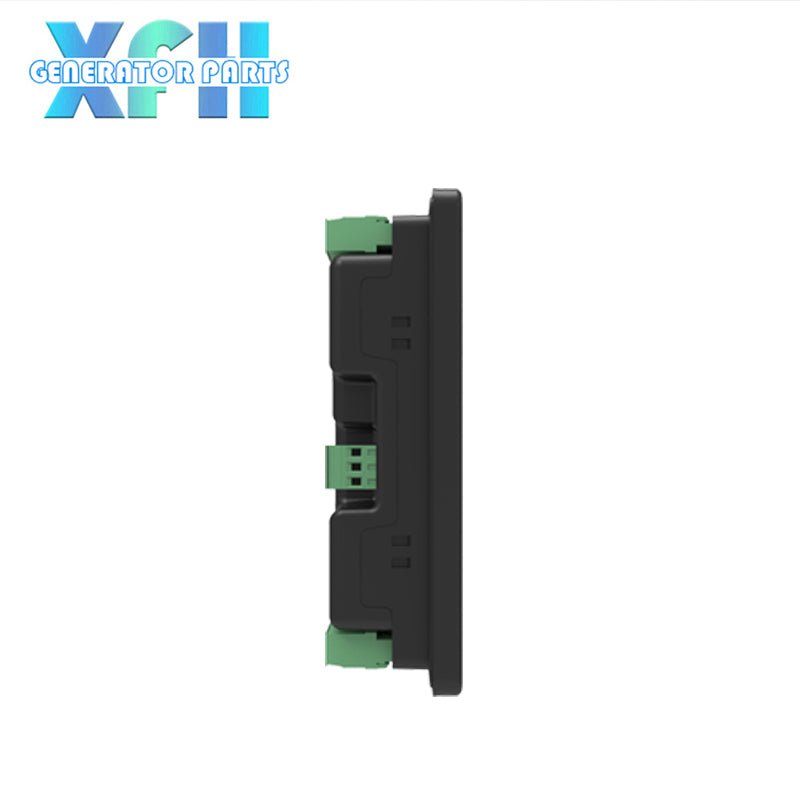

Smartgen Generator Genset Controller HGM9320CAN HGM9320

Smartgen Generator Genset Controller HGM9320CAN HGM9320

Test before shippment, 1 year warranty, pay safe with PayPal.

Precio habitual $300.00
Precio habitual Precio de oferta $300.00
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Original Smartgen HGM9320CAN Genset Controller

HGM9310 MPU (HGM9310 CAN), used for single automation systems, auto start/stop of the unit are performed with the help of remote signal.
HGM9320 MPU(HGM9320 CAN), has all functions of HGM9310 MPU(CAN) as well as automatic mains failure function (AMF), particularly well suited for single automation systems that include mains and generator.

CHARACTERISTICS for HGM9320 Smartgen Controller:

Operating Voltage

DC8.0V to DC35.0V, Continuous Power Supply.

Power Consumption

<4W (standby ≤2W)

Alternator Input Range 3-Phase 4-Wire 3-Phase 3-Wire Single Phase 2-Wire 2-Phase 3-Wire

AC15V - AC 360V (ph-N) AC30V - AC620V (ph-ph) AC15V - AC360V (ph-N) AC15V - AC360V (ph-N)

Alternator Frequency

50Hz/60Hz

Speed Sensor Voltage

1.0V to 24.0V (RMS)

Speed Sensor Frequency

10,000 Hz (max.)

Start Relay Output

16A DC28V supply output

Fuel Relay Output

16A DC28V supply output

Auxiliary Relay Output (1)

7A DC28V supply output

Auxiliary Relay Output (2)

7A DC28V supply output

Auxiliary Relay Output (3)

7A DC28V supply output

Auxiliary Relay Output (4)

7A AC250V voltage free output

Auxiliary Relay Output (5)

7A AC250V voltage free output

Auxiliary Relay Output (6)

7A AC250V voltage free output

Case Dimension

237mm x 172mm x 45mm

Panel Cutout

214mm x160mm

C.T. Secondary

5A rated

Working Conditions

Temperature: (-25~+70)°C; Humidity: (20~93)%RH

Storage Condition

Temperature:(-25~+70)°C

Protection Level

IP65 Gasket

Insulating Intensity

Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.

Net Weight

0.85kg
