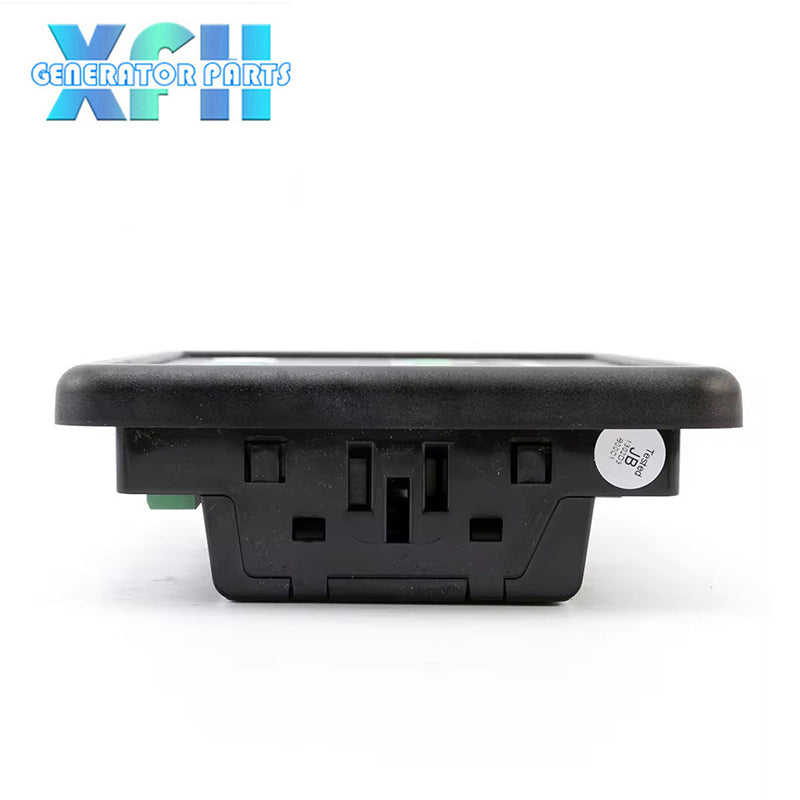

Original Genset Auto Transfer Switch Control Module Deep Sea DSE 311 DSE331 UK Generator ATS Controller

The DSE331 is an Automatic Transfer Switch Controller. The DSE331 will monitor the voltage and frequency of the incoming AC supply from two different sources, which could be from both generator or mains (utility), or a combination of both. The module will monitor S1 (source1) and in the event of a failure will issue a start command to S2 (source 2). Once S2 is available and producing an output within limits, the module will control the transfer device and switch the load from S1 to S2.Once the S1 supply returns to within limits, the module will command a load return to S1 and shut down S2.

Various timing sequences are available to prevent nuisance starting on minor supply breaks. Configurable digital inputs and outputs make the DSE331 fully flexible to suit a wide variety of applications.

The module can be easily configured using the DSE Configuration Suite PC Software.Where there is no DC supply a DSE160 self seeking power supply is required. The DSE331 also supports many topologies,and includes a clearback-lit LCD display, showing system operational status and warnings.
