Mebay EC30CR EC30DR Diesel Generator Controller Engine Control Module CAN J1939 RS485

Summary

    This series of controllers are mainly used in engine control systems for water pumps, lighthouses, air compressors and engineering machinery types, applicable to stand-alone automatic control monitoring system, with remote start and stop, data measurement, alarm protection functions.

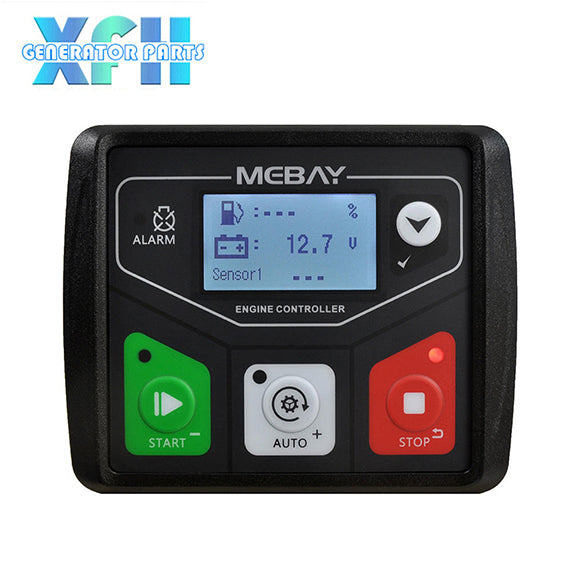

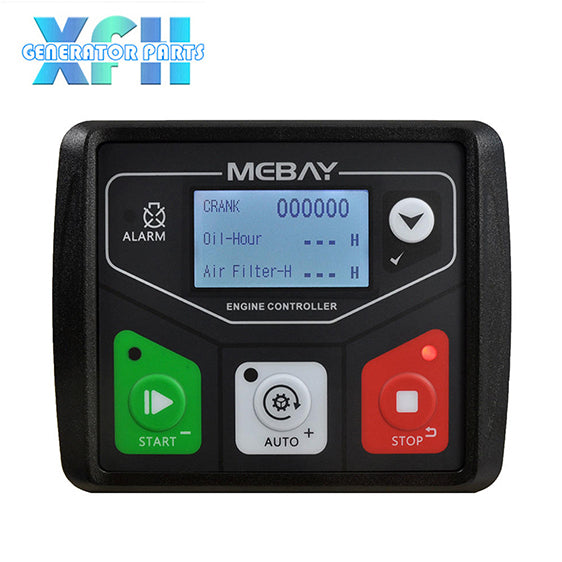

    This controller employs a 128×64 high-resolution liquid crystal display for engine-related parameters. The LCD screen can display various faults at the same time. Once the unit does not run normally, it can effectively achieve protection.

    EC30CR Features standard CAN communication port, built-in J1939 protocol.There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 to adjust via PC.



Main Features

There are two Models under EC30xR series.

MODE	Auto Start	RS485	MPU	CAN
EC30DR	●	●	●	━
EC30CR	●	●	━	●

    32bit high performance single chip microcomputer.

    128*64 LCD display with backlight, option language interface , user’s language set if necessary, It has 17 display languages including Chinese and English, user’s language set if necessary.

    Indicator and number display through UI surface.

    PC front face panel, waterproof, oil-proof, UV-resistant, good operation feel and long service life.

    With RS485 communication port, can achieve "Three Remote" functions via MODBUS protocol.

    EC30CR Features standard CAN communication port, built-in J1939 protocol.

    Various kinds of parameters display.Display parameters can be configurable.

    Input/output function, status can be shown directly.

    Protection countdown function, which can set the maintenance time or date.

    Equipped with black box function: capable of storing 100 sets of alarm records, including relevant parameters of the unit when a fault alarm occurs, facilitating the search for the cause of the fault;

    Totally 5 relay’s output, among which 4 relay output can be self-configurable, each relay can be set as max 60 functions.

    With 2 switches input, up to 30 functions optional.

    5 analog inputs, with configurable inputs 1–3 selectable as either sensor or digital inputs; configurable analog inputs 4 and 5 support voltage, current, and resistance sensors.

    Sensor can be self-defined by front face button or PC software.

    Various of crank conditions (RPM, Oil Pressure,) can be chosen.

    Control Protection: Auto Start/Stop of unit, perfect failure display and protection.

    Standard water-proof rubber gasket. The waterproof can reach IP65.

    Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.



Parameters Display

    Engine RPM

    Engine oil pressure

    Engine coolant temperature

    AUX.sensor parameters

    Engine battery voltage

    Total Crank times

    Current running time

    Total running time

    Maintenance notice

    Switches input status display

    Output status display of  relays



Protection

    Over speed

    Under speed

    RPM Lost

    Low oil pressure

    Coolant  temperature High

    Low fuel level

    Fail To Start

    Fail To Stop

    Emergency stop

    Sensor Open

    ECU alarm failure

    ECU communication Failure

    Over battery voltage

    Under battery voltage

    External real-time alarm

    Maintenance expire

    All warnings

    Alarm shutdown
