Smartgen HGM4010CAN Genset Control Module Panel

Smartgen HGM4010CAN Genset Control Module Panel

Test before shippment, 1 year warranty, pay safe with PayPal. Free Worldwide Shipping to 63 Countries. Tracking Number Provided. 100% Delivery Guarantee

$170.00
$170.00
Sale Ausverkauft
Versand wird beim Checkout berechnet

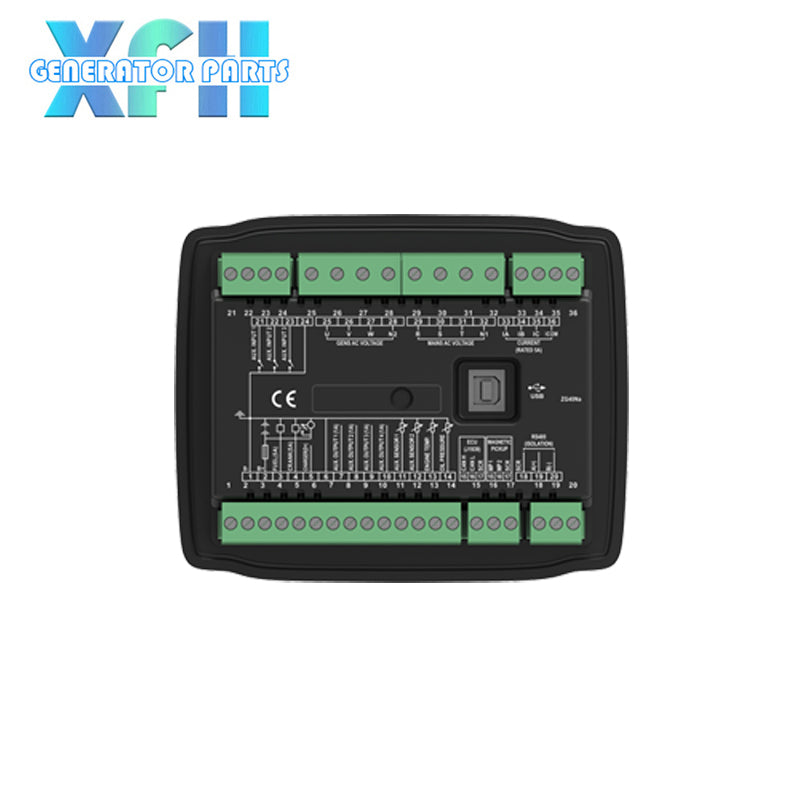

Generator Parts Smartgen HGM4010CAN Genset Controller


HGM4010CAN Genset Controller adopt micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. All parameters can be configured from front panel or through programmable interface (USB or RS485 interface) via PC. It can be widely used in all types of automatic genset control system with compact structure, advanced circuits, simple connections and high reliability.

Items
Contents
AC30V - AC620V (ph-ph)Alternator Volt Input Range：
3 Phase 4 Wire
3 Phase 3 Wire
Single Phase 2 Wire
2 Phase 3 Wire


AC15V-AC 360V (ph-N)
AC 30V - AC 360V (ph-N)
AC15V - AC360V (ph-N)
AC15V - AC360V (ph-N)
Programmable Relay Output (1)-(4)
1 A DC28V at supply output
Panel Cutout
116mm x 90mm
CT Secondary Current
5A rated
Working Conditions
Temperature: (-25~+70)°C; Relative Humidity: (20~93)%RH
Protection Level
IP65: rubber seal installed between the controller enclosure and panel fascia.
Insulating Intensity
Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.
Vollständige Details anzeigen
