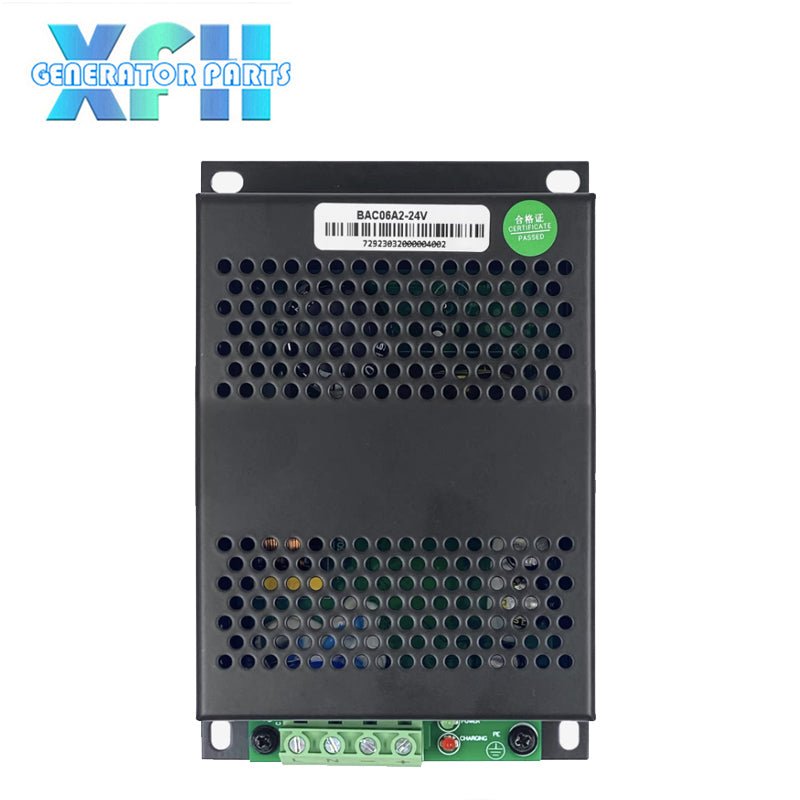

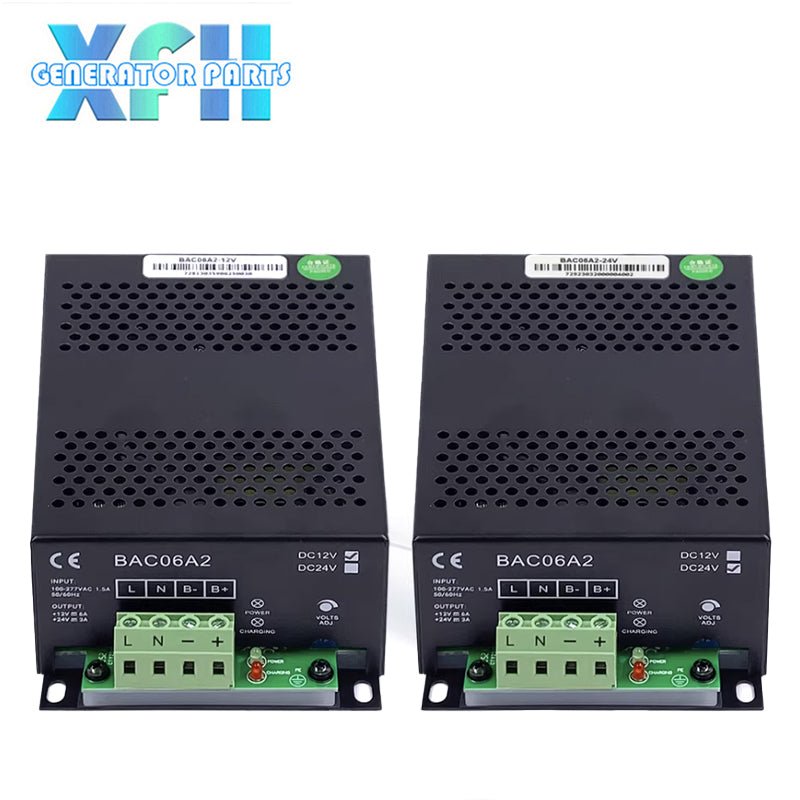

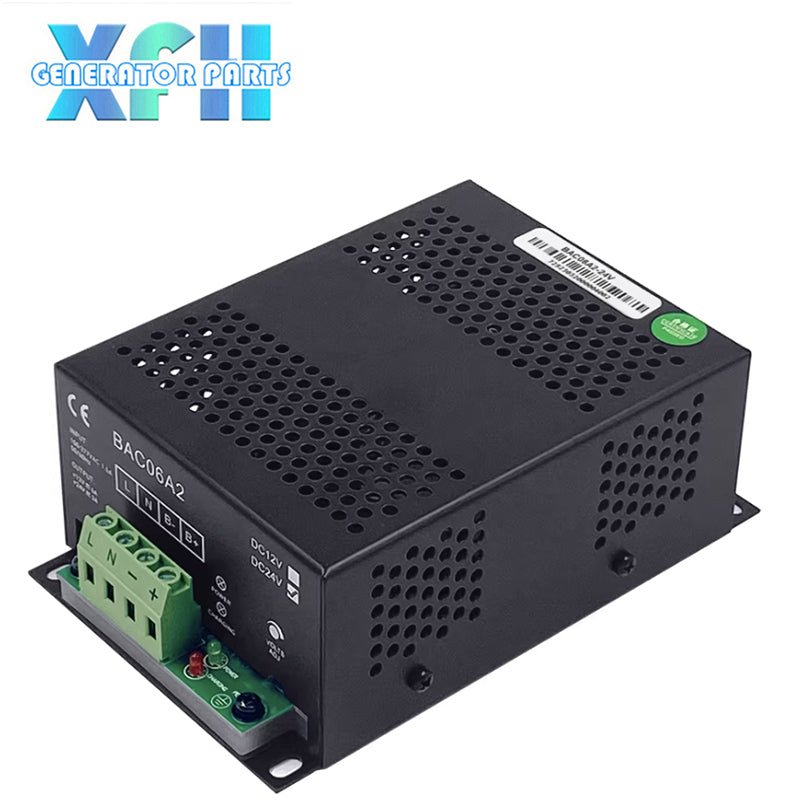

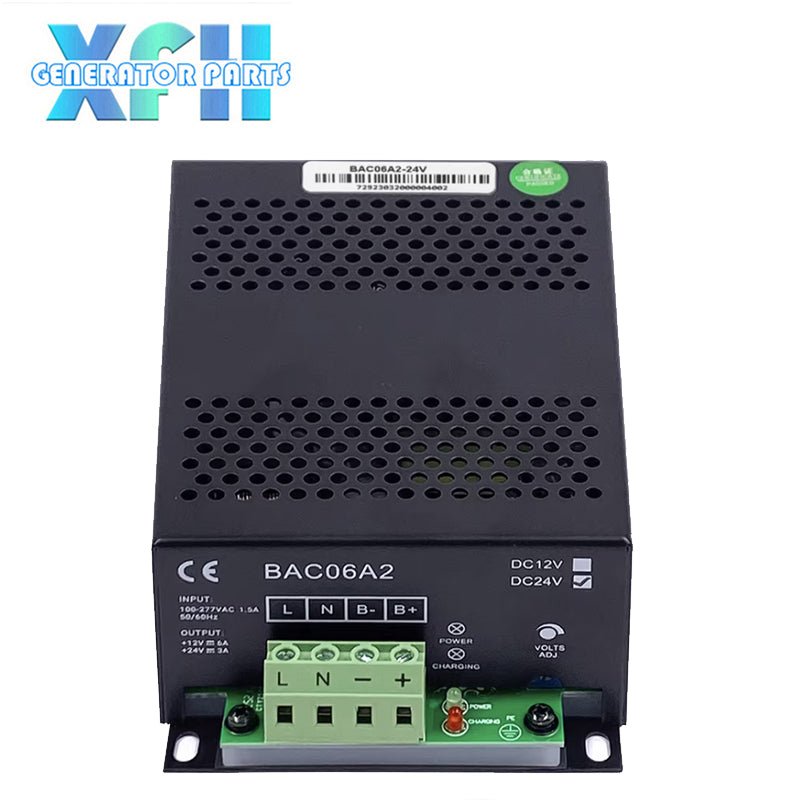

Smartgen BAC06A2 12V 24V 6A 3A Intelligent Charger Battery Float Charger for Diesel Generator Sets

Smartgen BAC06A2 12V 24V 6A 3A Intelligent Charger Battery Float Charger for Diesel Generator Sets

Test before shippment, 1 year warranty, pay safe with PayPal. Free Worldwide Shipping to 63 Countries. Tracking Number Provided. 100% Delivery Guarantee

Models Optional
$54.00
$54.00
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

Battery Charger BAC06A2

  • Float charging, two-stage charging, 12V 6A / 24V 3A
  • Dimensions (mm): 143 × 96 × 53
  • Mounting dimensions (mm): 131 × 80
  • Operating temperature: -30°C ~ +55°C
  • Weight: 0.56 kg
Parameter BAC06A BAC06CF BAC06AU BAC06N BAC06NB BAC06T BAC06A2
Battery Voltage 12V/24V auto 12V/24V auto 12V/24V auto 12V/24V auto 12V/24V auto 12V/24V auto 12V/24V auto
Max Charge Current 12V6A/24V3A 12V6A/24V3A 12V4A/24V3A 12V6A/24V3A 12V6A/24V3A 12V6A/24V3A 12V6A/24V3A
Input Voltage AC90-280V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC90-280V
Charging Mode 2-stage (float) 2-stage (float) 2-stage (float) 2/3-stage selectable 2/3-stage selectable 2-stage (auto float) 2-stage (float)
Protections Short circuit, reverse Short, reverse, PFC Short, reverse Short, reverse, temp Short, reverse, temp Short, reverse Short, reverse, adjustable
Features Horizontal mount, LED, adjustable Power Factor Correction Compact, low cost Temp compensation Temp comp, rugged Mini size, fully auto Upgraded BAC06A, adjustable
Dimensions (mm) 143×96×55 136×86×49 110×70×45 136×86×49 136×86×49 95×60×35 145×98×56
Weight (kg) 0.65 0.48 0.28 0.47 0.49 0.16 0.68
Typical Use Standard gen-sets Industrial, high efficiency Small generators Cold environments Harsh conditions Mini generators Retrofit, precision adjust


Quick Selection Guide

  1. Standard / Most Popular: BAC06A → Balanced performance, adjustable, widely compatible.
  2. High Efficiency: BAC06CF → Built-in PFC (Power Factor Correction), better for grid stability.
  3. Cost-Effective / Small: BAC06AU → Lower current, compact, budget-friendly.
  4. Wide Temp / Precision: BAC06N / NB → Temperature compensation, ideal for cold climates.
  5. Mini / Fully Automatic: BAC06T → Tiny size, plug-and-play, no adjustments needed.
  6. Upgraded / Adjustable: BAC06A2 → Improved BAC06A, finer voltage/current tuning.
