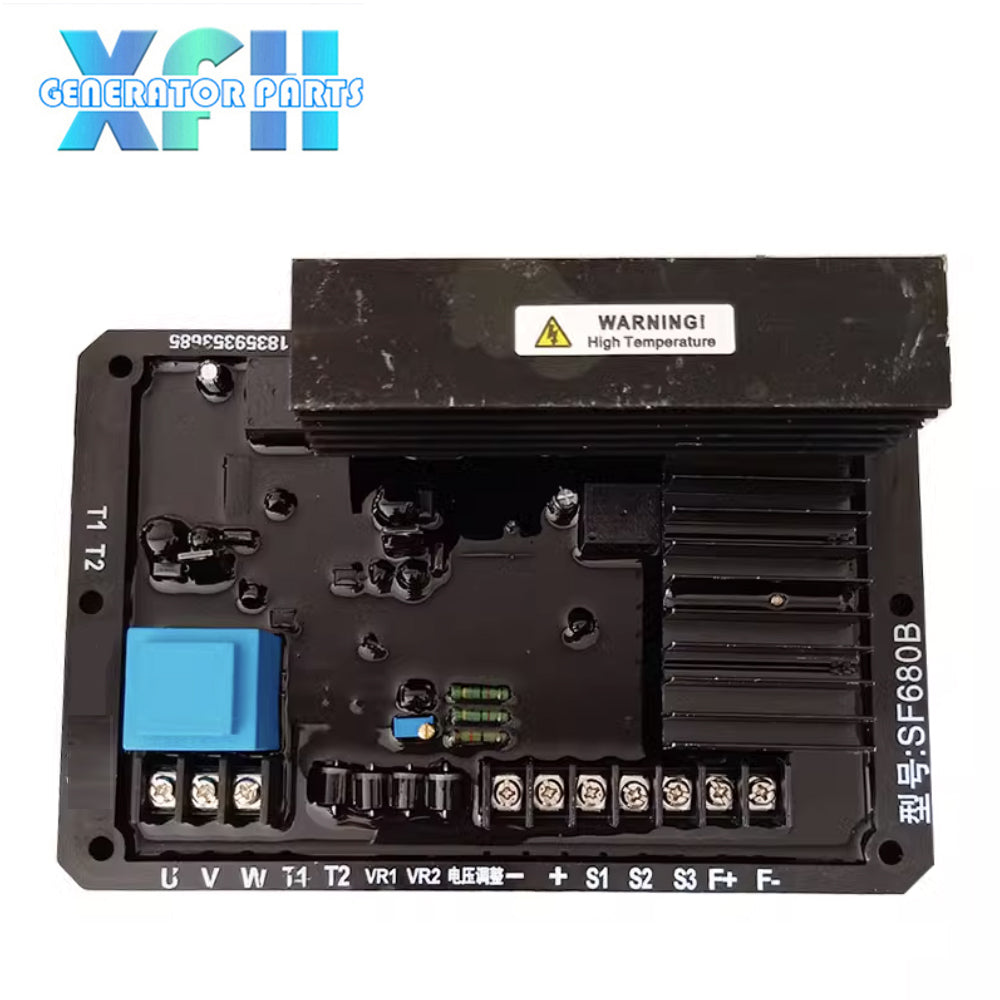

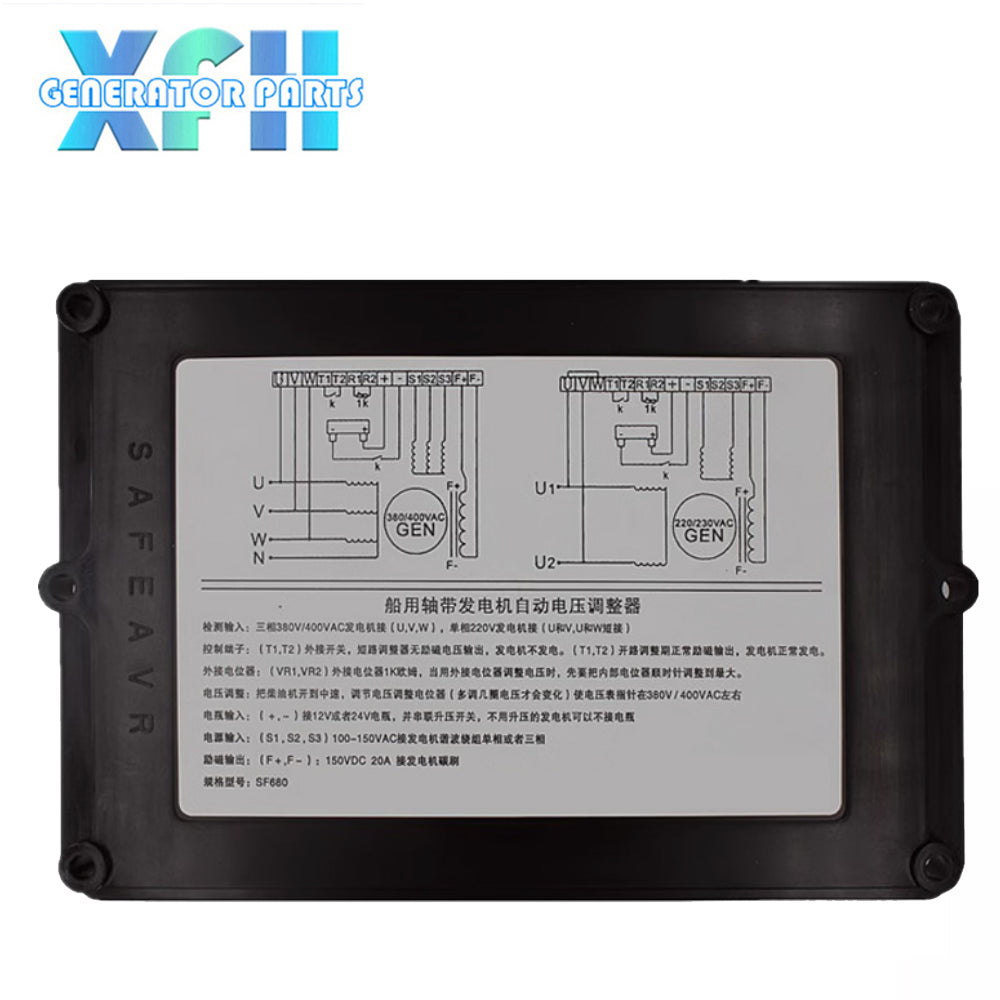

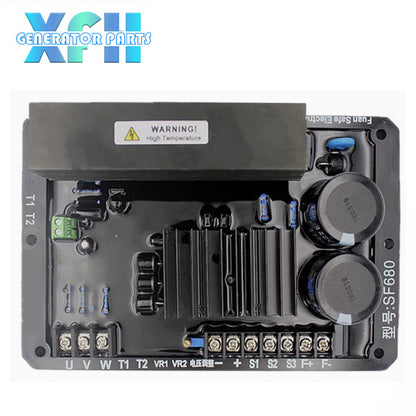

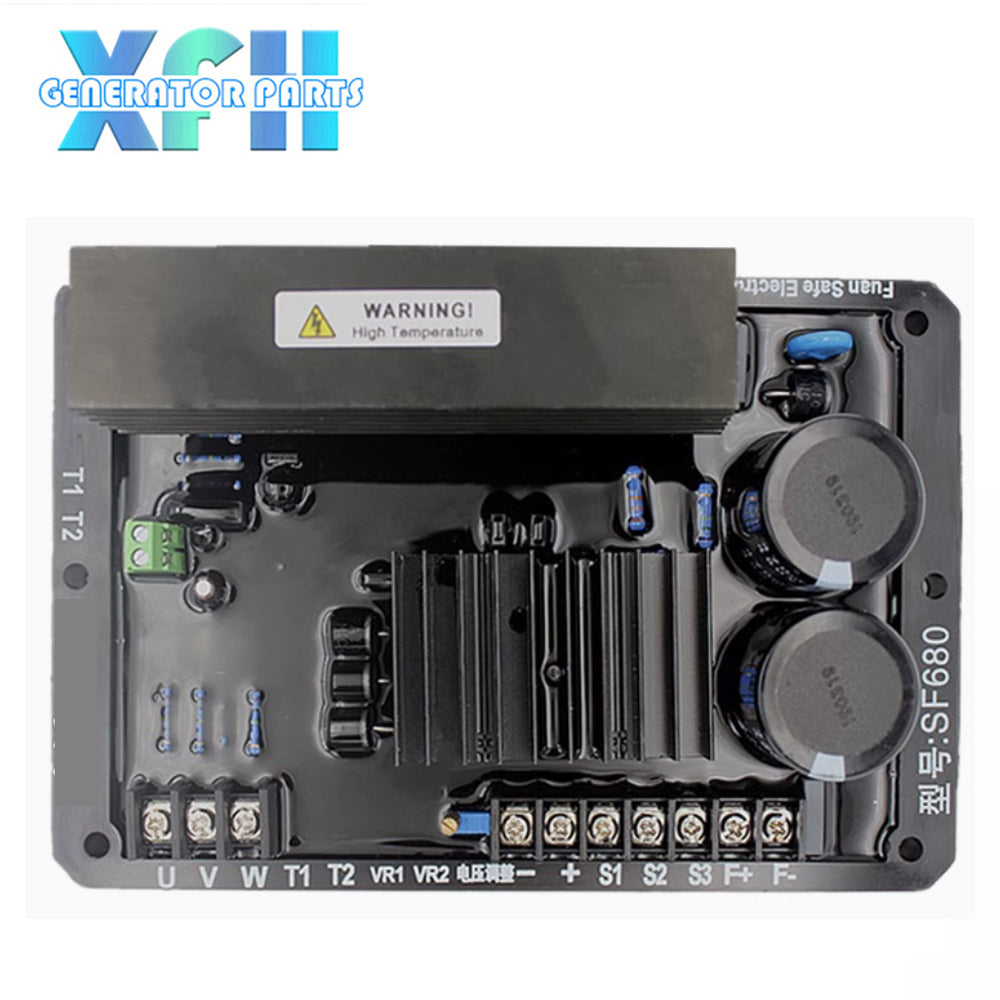

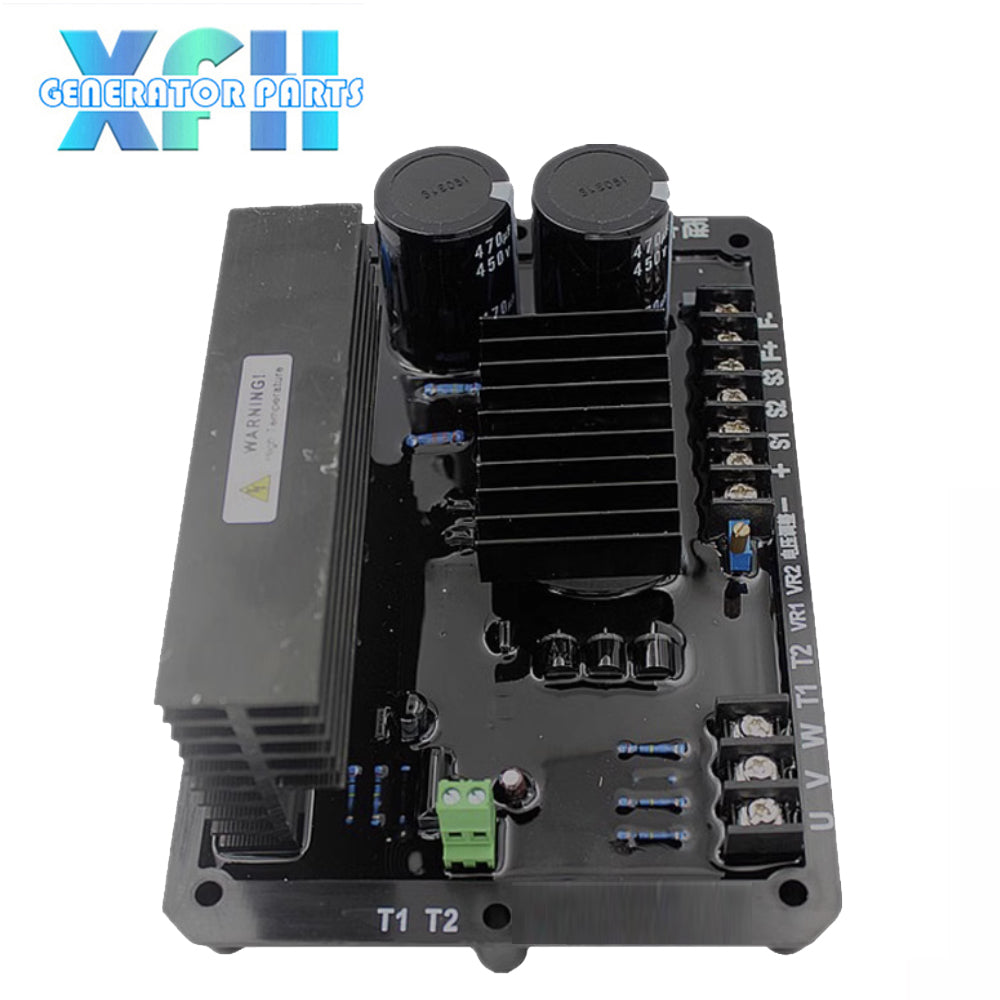

Marine Shaft Type Diesel Brush Alternator Voltage Regulator AVR Single Phase Three Phase SF680 GB180

Marine Shaft Type Diesel Brush Alternator Voltage Regulator AVR Single Phase Three Phase SF680 GB180

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Model
Regular price $49.00
Regular price Sale price $49.00
Sale Sold out
Shipping calculated at checkout.

GB180/SF680 is for Marine Shaft Type AVR, single phase or three phases 30Kw below.

Power input (S1, S2, S3): 50V-150VAC harmonic winding.

Detect Input (U, V, W): 380V/400VAC, 220VAC  50/60Hz

Excitation output (F+, F-): 150VAC  20A

Battery Charge (+, -): 12/24 VDC

When the generator starts the motor, the frequency is controlled at 45-55HZ.
When the generator is running at low speed, the output voltage is lower than the rated 380/400V. When the + and - terminals are connected to the battery, the voltage of the generator increases. When the generator stops and does not generate electricity, Due to disconnection of battery circuit.
