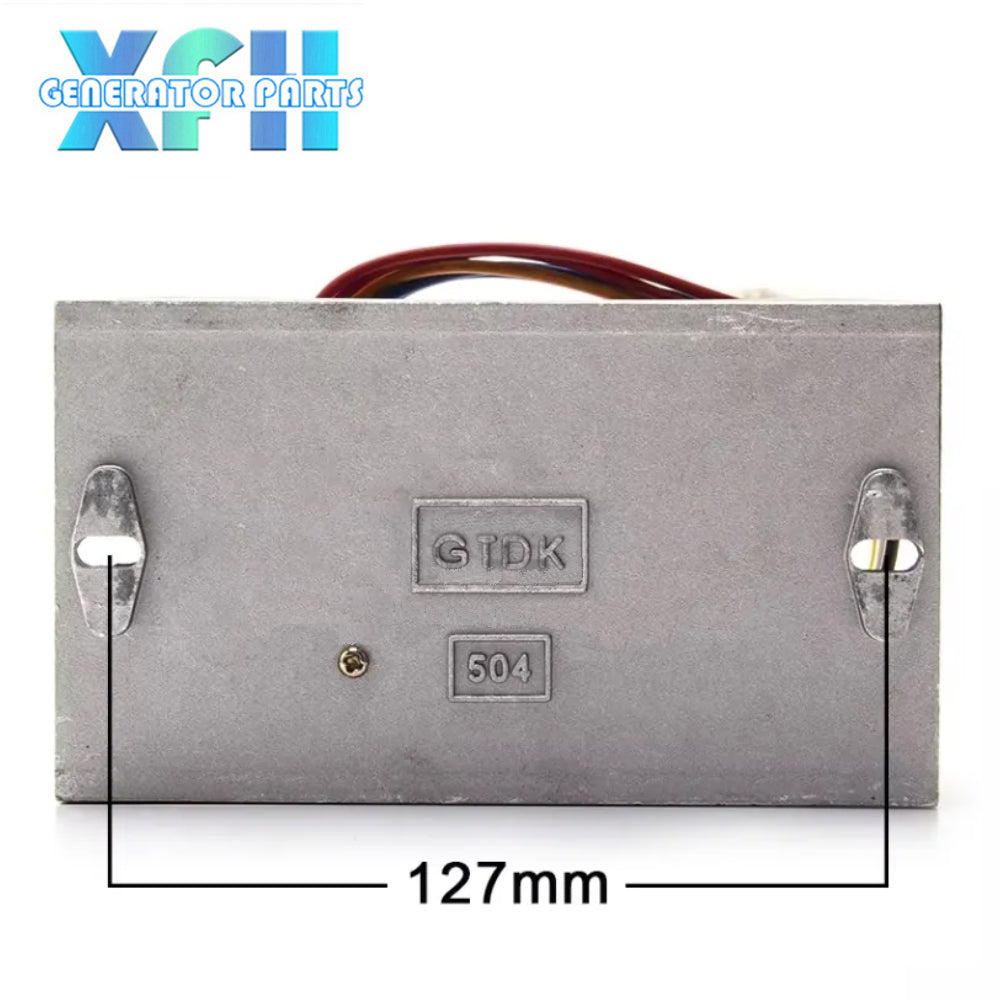

GTDK 10-1W1X Welder Generator AVR Automatic Voltage Regulator For Generator 3 Phase Adjustable Voltage Protector
GTDK 10-1W1X Welder Generator AVR Automatic Voltage Regulator For Generator 3 Phase Adjustable Voltage Protector
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Regular price
$59.00
Regular price
Sale price
$59.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
GTDK 10-1W1X Welder Generator AVR Automatic Voltage Regulator For Welding Dual Purpose Machine
1. Suitable for welding dual-purpose machine
2. Excitation current:
Rated current 3AMPS, short-term (within 10 seconds) not more than 3.5AMPS
3. Sampling voltage: 115V, yellow, yellow line
4. Auxiliary winding voltage: 80-140 Volts A.C, blue, blue line
5. Output voltage: 120Volts DC.MAX "", "+" green line, "-" orange line
6. According to the figure, the potentiometer is equipped with a 1000-turn transformer to pass through one distance, and the
welding current of 40A-280A can be adjusted.
2. Excitation current:
Rated current 3AMPS, short-term (within 10 seconds) not more than 3.5AMPS
3. Sampling voltage: 115V, yellow, yellow line
4. Auxiliary winding voltage: 80-140 Volts A.C, blue, blue line
5. Output voltage: 120Volts DC.MAX "", "+" green line, "-" orange line
6. According to the figure, the potentiometer is equipped with a 1000-turn transformer to pass through one distance, and the
welding current of 40A-280A can be adjusted.
|
Brand
|
xfh
|
|
Name
|
AVR
|
|
Model
|
10-1W1X
|
