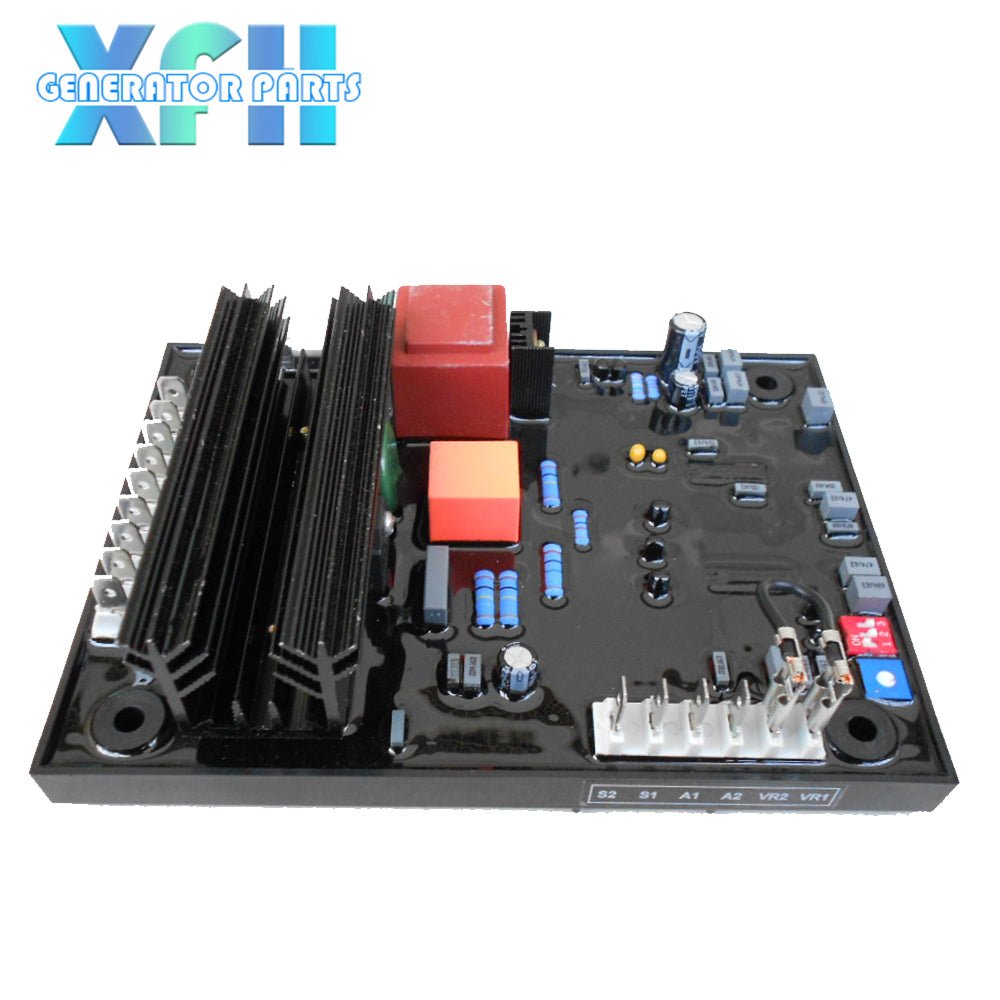

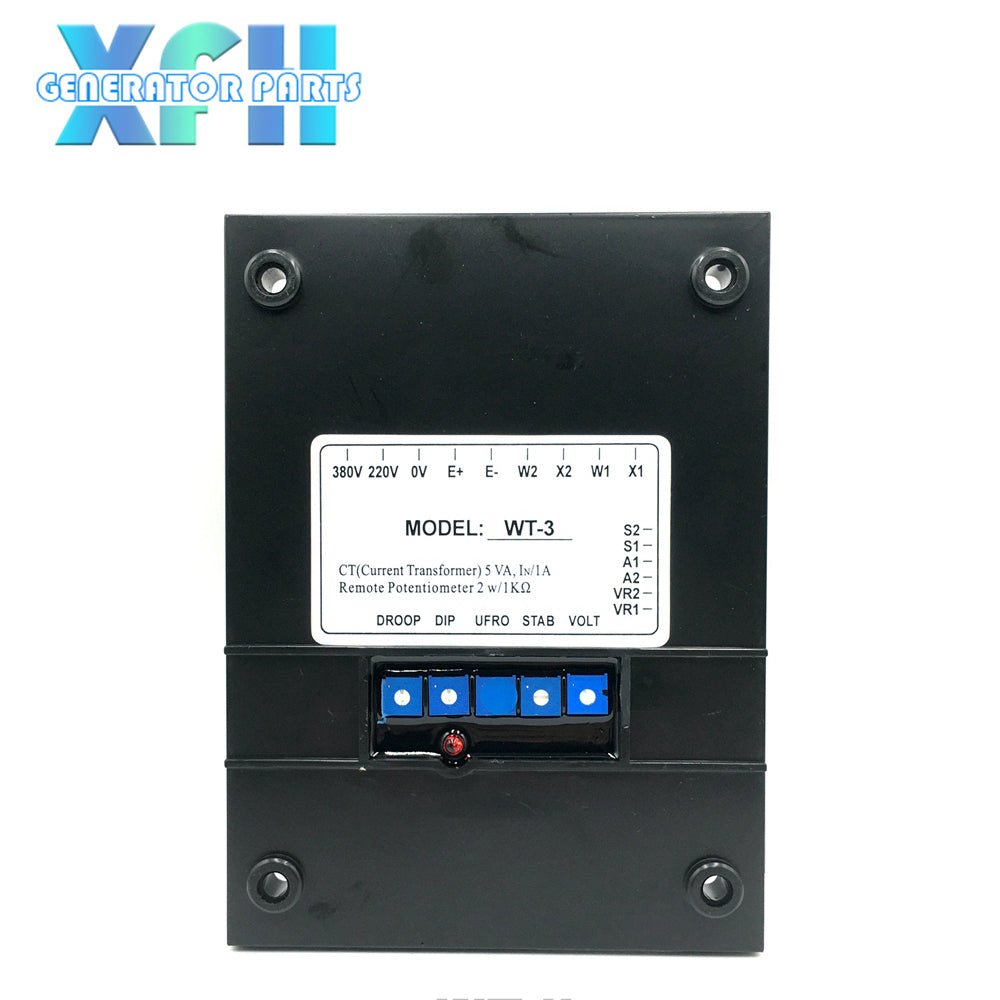

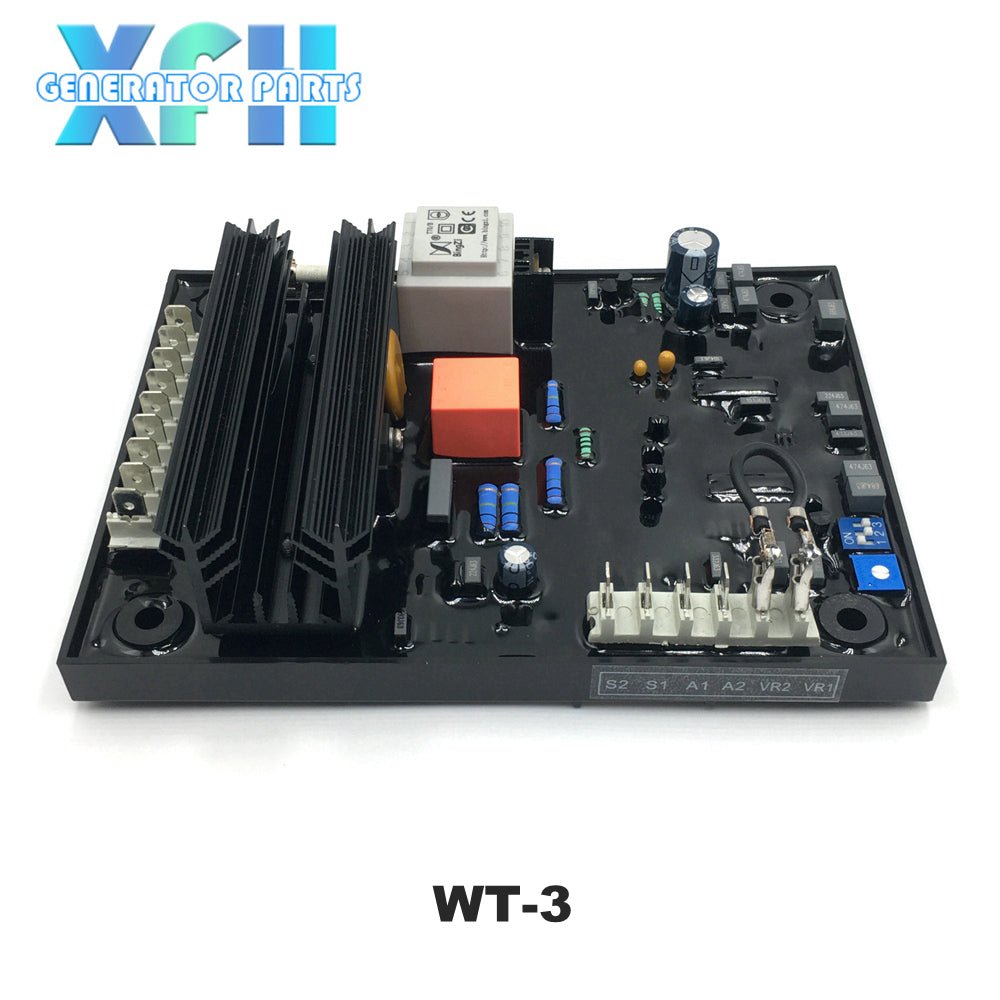

AVR WT-3 Automatic Voltage Regulator for Generator Genset Volt Regulation
AVR WT-3 Automatic Voltage Regulator for Generator Genset Volt Regulation
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Regular price
$109.25
Regular price
Sale price
$109.25
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Technical Parameters
Voltage adjustment rate： < 0.5%
Applicable to 170~510VAC Brushless Generator
Can be used in grid-connected units
12ADC High Output Current
Applicable frequency 50/60 Hz
Low Frequency Protection and Slow Voltage Establishment
Compensation with Load Current
Voltage input (X1, X2) INPUT: 180V-250Vac 45-60Hz
Detection input (0V-220V) terminal input 180-250Vac. (0V-380V) terminal input 370-450Vac.50/60Hz
Voltage Output (E+, E-): 90Vdc 6A (220Vac)
Voltage adjustment rate： < 0.5%
Applicable to 170~510VAC Brushless Generator
Can be used in grid-connected units
12ADC High Output Current
Applicable frequency 50/60 Hz
Low Frequency Protection and Slow Voltage Establishment
Compensation with Load Current
Voltage input (X1, X2) INPUT: 180V-250Vac 45-60Hz
Detection input (0V-220V) terminal input 180-250Vac. (0V-380V) terminal input 370-450Vac.50/60Hz
Voltage Output (E+, E-): 90Vdc 6A (220Vac)
