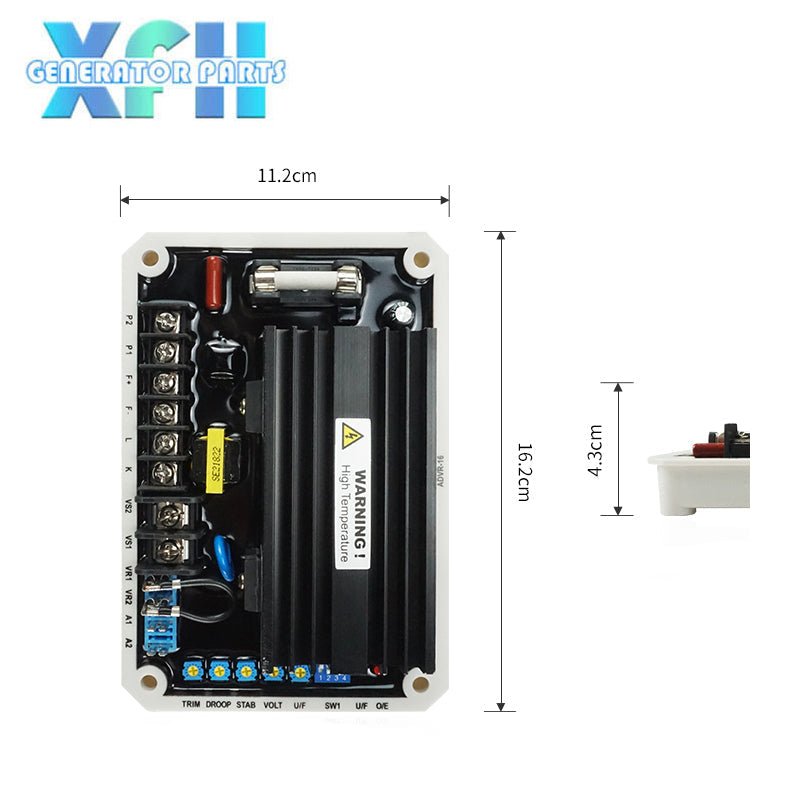

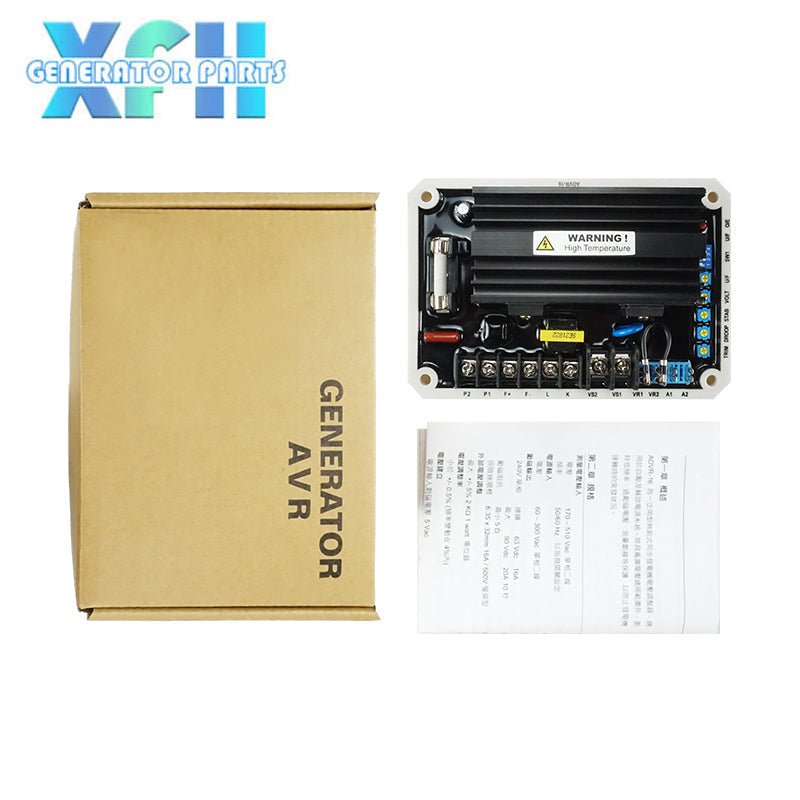

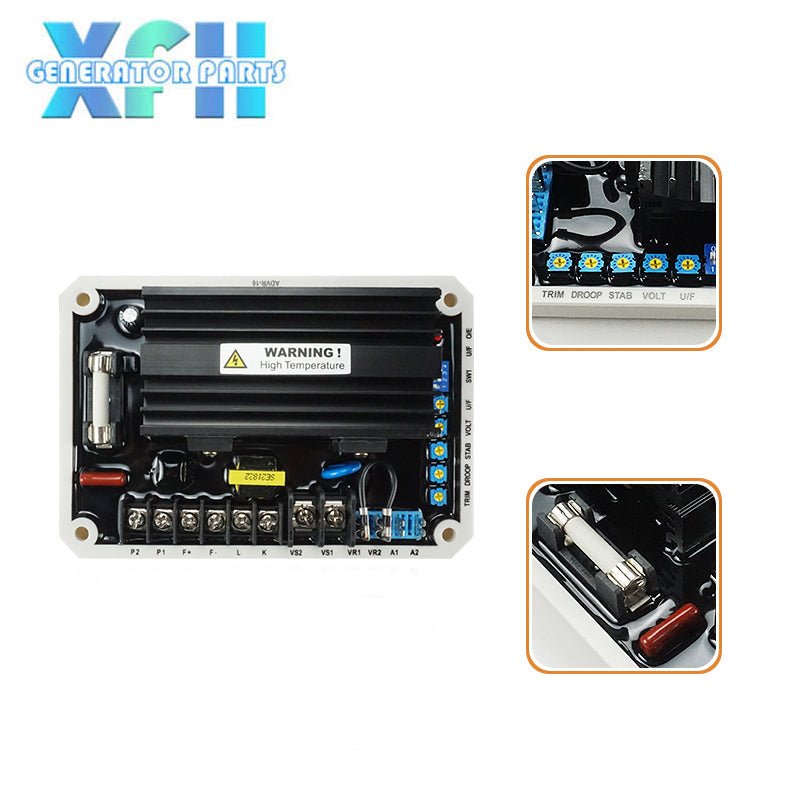

AVR ADVR-16 Automatic Voltage Regulator Voltage Stabilizer Replacement for Diesel Genset Generator Parts & Accessories Advr16

AVR ADVR-16 Automatic Voltage Regulator Voltage Stabilizer Replacement for Diesel Genset Generator Parts & Accessories Advr16

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Module
$99.00
$99.00
Sale Sold out
Shipping calculated at checkout.

Product Name

  Automatic Voltage Regulator
Model Number  ADVR-16
Sensing Input Voltage 170 to 510 Vac 1 phase 2 wire DIP switch selectable
Frequency 50/60 Hz
Build Up Voltage 5Vac 25Hz residual volts at power input terminal
Static Power Dissipation Max. 4 watts
CT Current Compensation Input 1A or 5A (DIP switch selectable)
Analogue Voltage Input Max. +/-5 Vdc +/-10% @ +/-3 Vdc
Power Input Voltage 60 to 300 Vac 1 phase 2 wire
Excitation Output

220V 1 phase Continuous 63 Vdc 16A;Max. 90 Vdc 20A for 10 seconds;Resistance Min. 4 ohms
External Voltage Adjustment Max. +/- 10% @ 1K ohms 1 watt potentiometer
Voltage Regulation Less than +/-0.5% (with 4% engine governing)
Under Frequency Protection

55 Hz @ 60 Hz (adjustable) ;45 Hz @ 50 Hz (adjustable)
Voltage Thermal Drift Less than 3% at -40 to +70 °C
Over Excitation Protection When excitation output > 40% Power Input, excitation output will shutdown after 10 sec
